HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-87

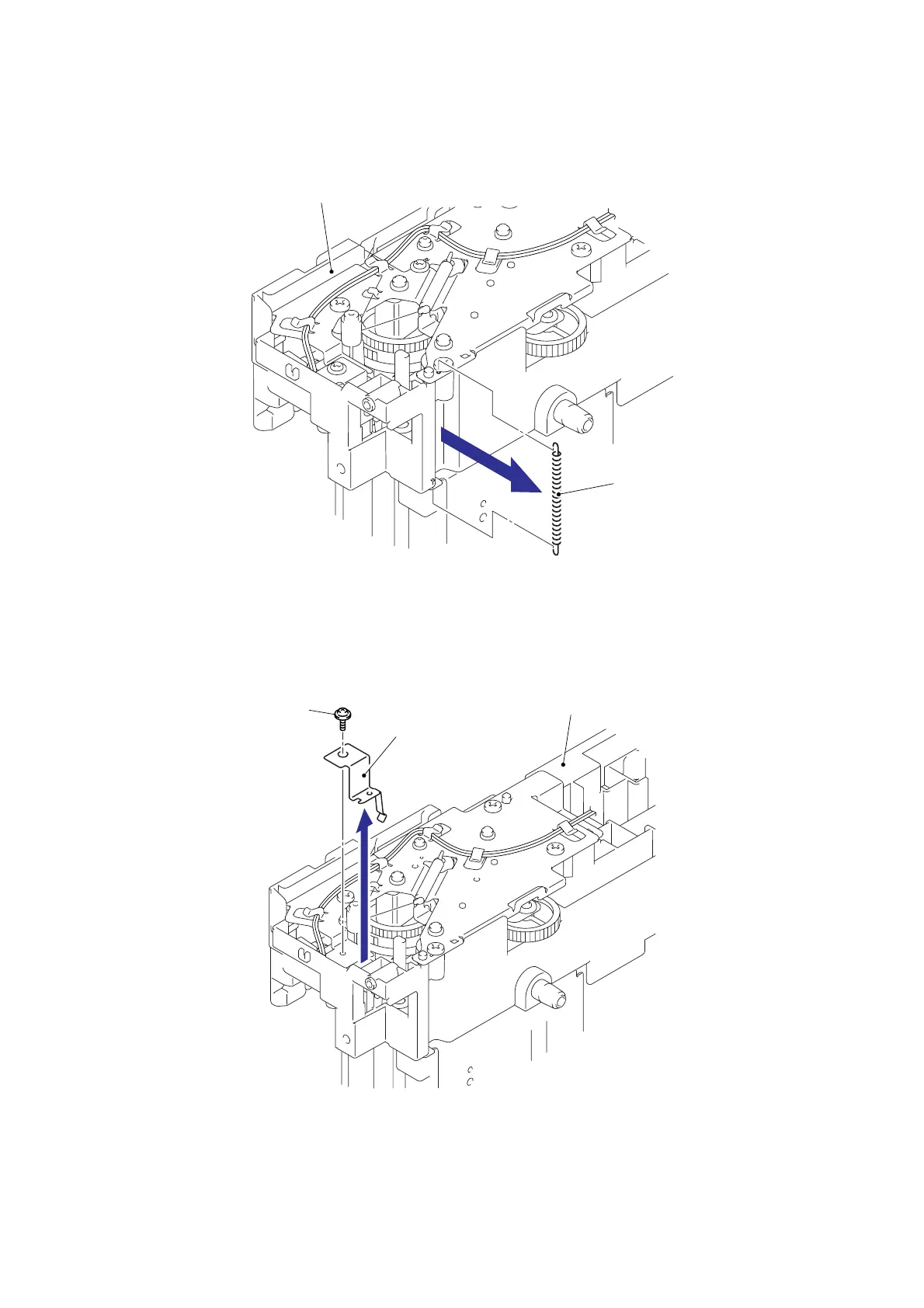

8.10 Collar 6
(1) Remove the Gear plate ground spring from the LT frame L.
Fig. 5-143
(2) Remove the cup S M3x6 Taptite SR screw, and then remove the Feed roller ground plate.
Fig. 5-144
LT frame L
Gear plate ground spring
Taptite, cup S M3x6 SR
LT frame L
Feed roller ground plate
