Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-48

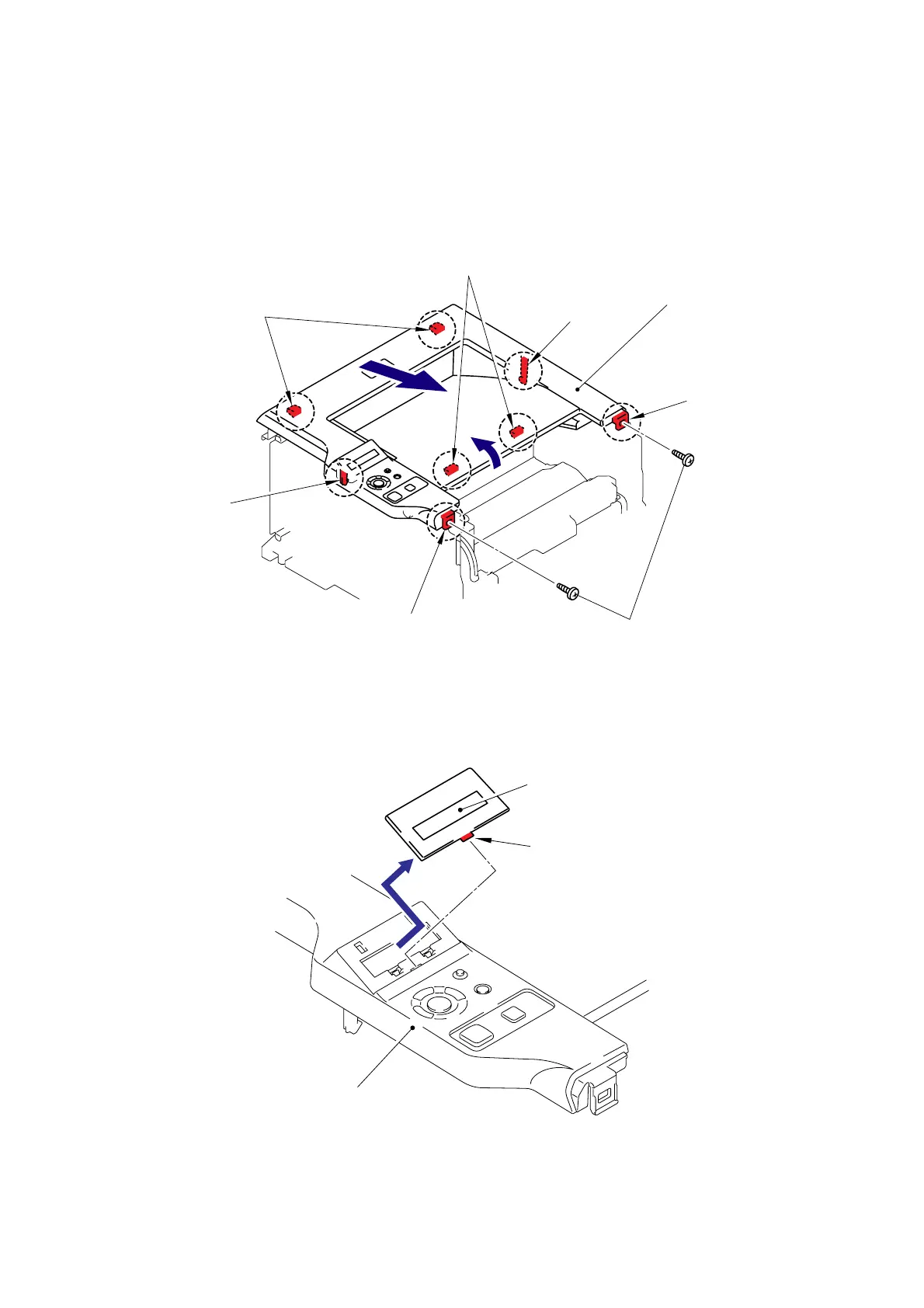

7.28-1 Top Cover 2 Printed ASSY/Panel Plate Printed ASSY (For HL-5270DN/5280DW)
(1) Remove the two bind B M4x12 Taptite screws from the Top cover 2 printed ASSY.
(2) Release all Hooks of the Top cover 2 printed ASSY and lift up the front side of the Top
cover 2 printed ASSY.
(3) Remove the Top cover 2 printed ASSY.
Fig. 5-68
(4) Remove the Panel Plate Printed ASSY from the Top cover 2 printed ASSY.
Fig. 5-69
Taptite, bind B M4x12
Hook
Hook
Hook
Hook
Hooks
Hooks
Top cover 2 printed ASSY
3
<Front side>
2
Top cover 2 printed ASSY
Panel Plate Printed ASSY
Hook
