Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-84

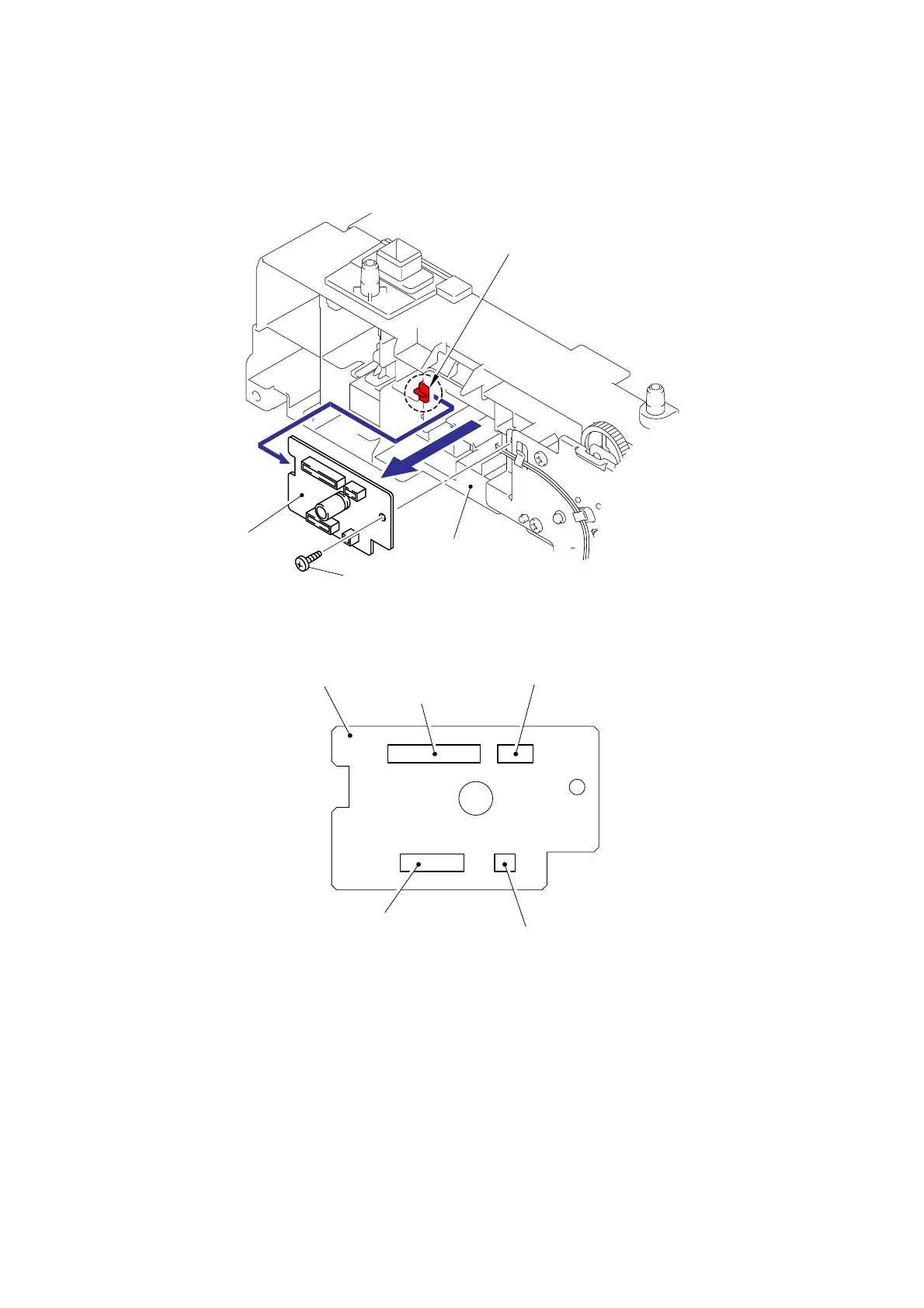

8.6 LT PCB ASSY
(1) Disconnect the connectors from the LT PCB ASSY.
(2) Remove the bind B M4x12 Taptite screw, and then remove the LT PCB ASSY.
Fig. 5-138
Hook
Taptite, bind B M4x12
LT PCB ASSY
LT sensor PCB connector
LT sensor harness
A
SSY 1 connecto
r
LT PCB ASSY
LT solenoid connector
LT sensor harness
A
SSY 2 connecto
r
LT frame L
<Left side>
