Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-92
8.12 Roller Holder ASSY

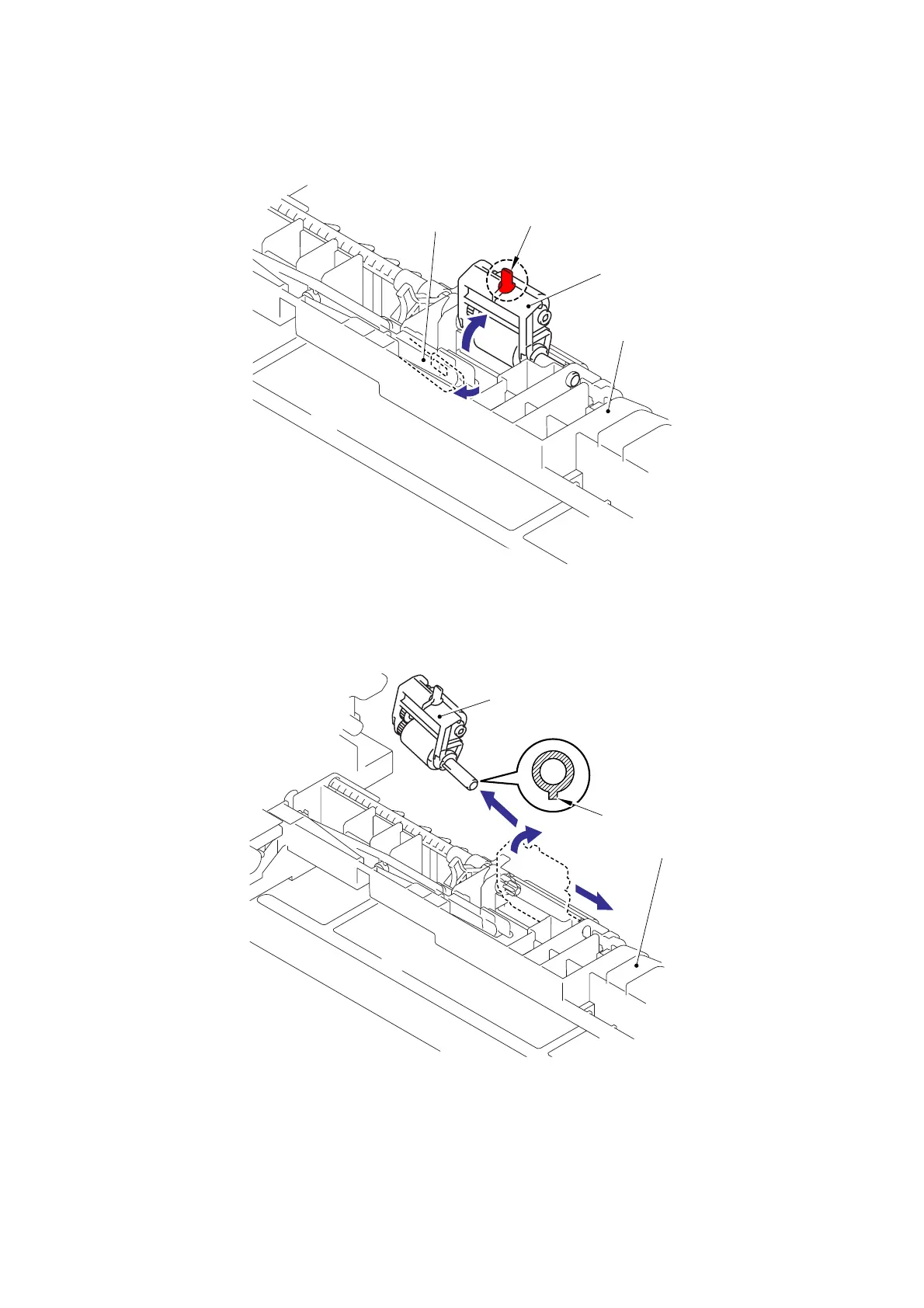

(1) Push the Lift arm to the direction of the arrow 1a and pull out the pin of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 1b.
Fig. 5-153
(2) Slide the Roller holder ASSY to the direction of the arrow 2a. Then, lift up the gear side
of the Roller holder ASSY to the direction of the arrow 2b and pull it out to the direction of
the arrow 2c to remove.
Fig. 5-154
Assembling Note:
When assembling the roller holder ASSY, align the section “A” on the shaft of the roller
holder ASSY with the hole on the paper feed frame.
Lift arm
LT paper feed frame
Pin
Roller holder ASSY
1b
1a
Roller holder ASSY
Paper feed frame
2b
2c
2a
“A”
