HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-13

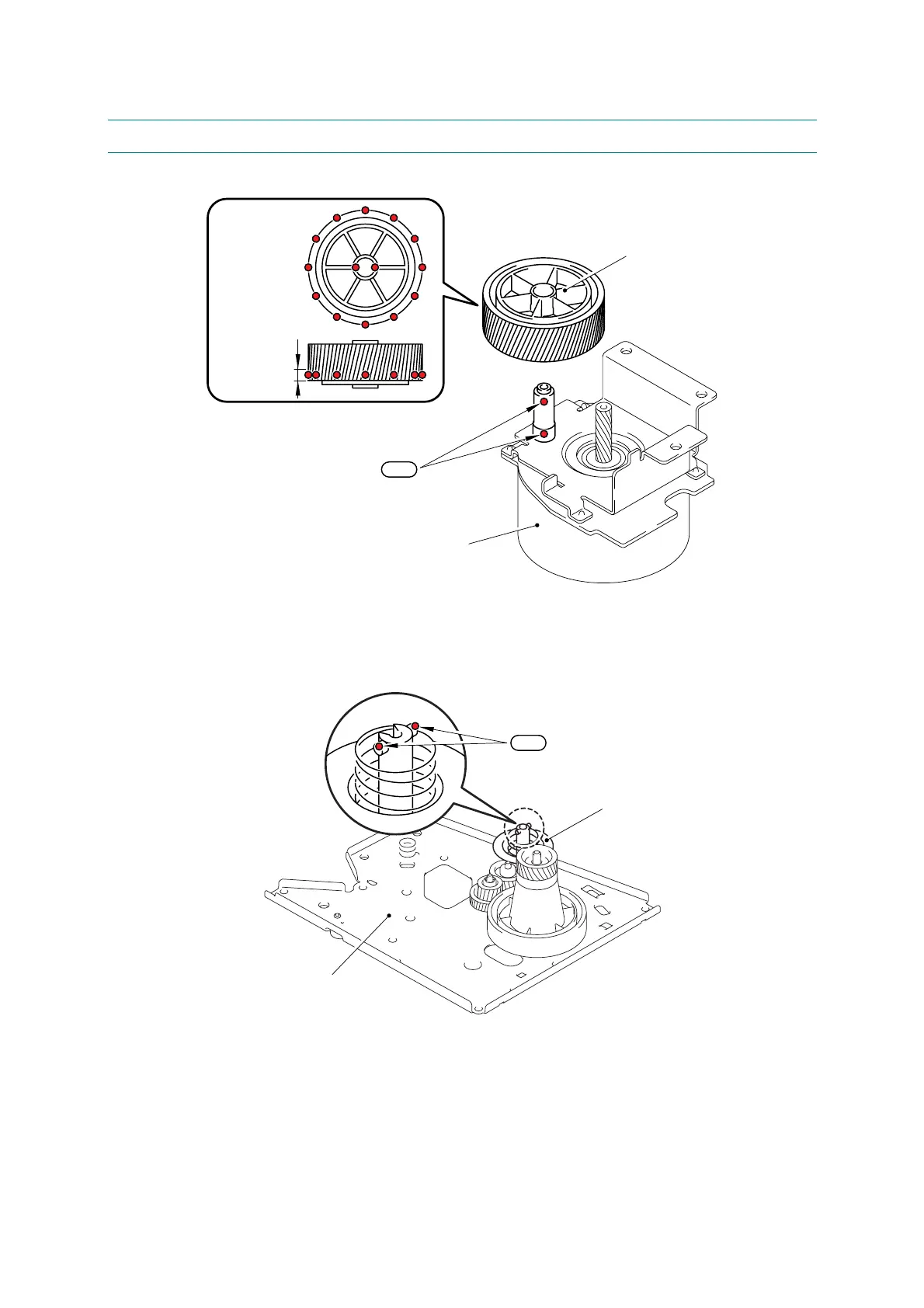

5. LUBRICATION
BG2
* BG2: KANTO KASEI BG- MU (2 mm dia. Ball)
BG2
* BG2: KANTO KASEI BG- MU (2 mm dia. Ball)
Gear 82R
Drive sub ASSY
A
pply grease
on the cogs
of the motor
side
DEV gear 37R joint drive
Gear cover
