HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-65

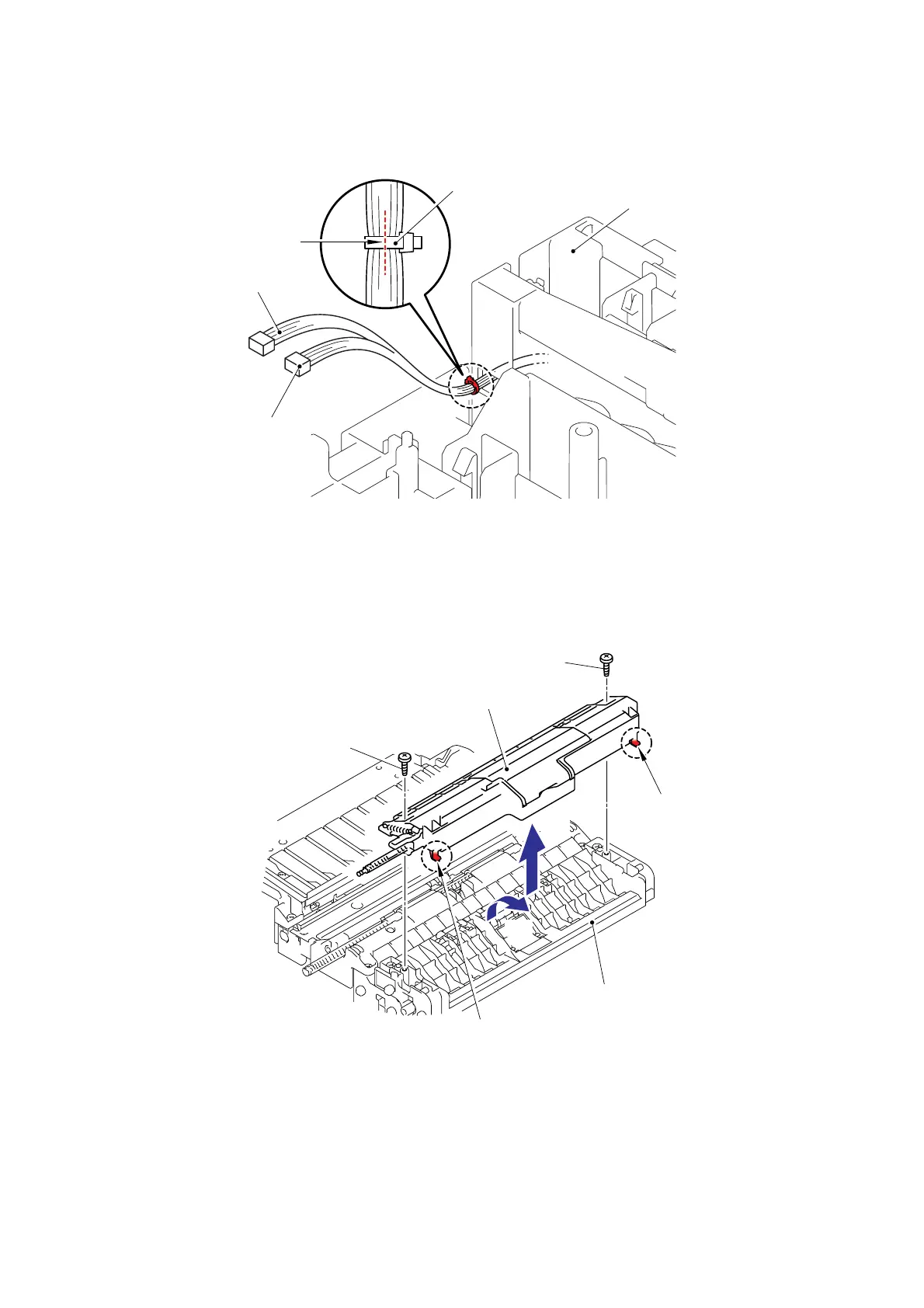

7.38 MP Unit
(1) Cut the Binder bundling the harnesses with nippers.
Fig. 5-102
(2) Remove the two bind B M3x8 Taptite screws.
(3) Lift up the back side of the MP feed frame and pull up the MP feed frame to remove.
Fig. 5-103
Taptite, bind B M3x8
Hook
Hook
MP feed frame
3a
3b
Paper feed frame
Taptite, bind B M3x8
Binder
Paper feed frame
Cut
PE EG sensor connector
MP PE sensor connector
