CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-40

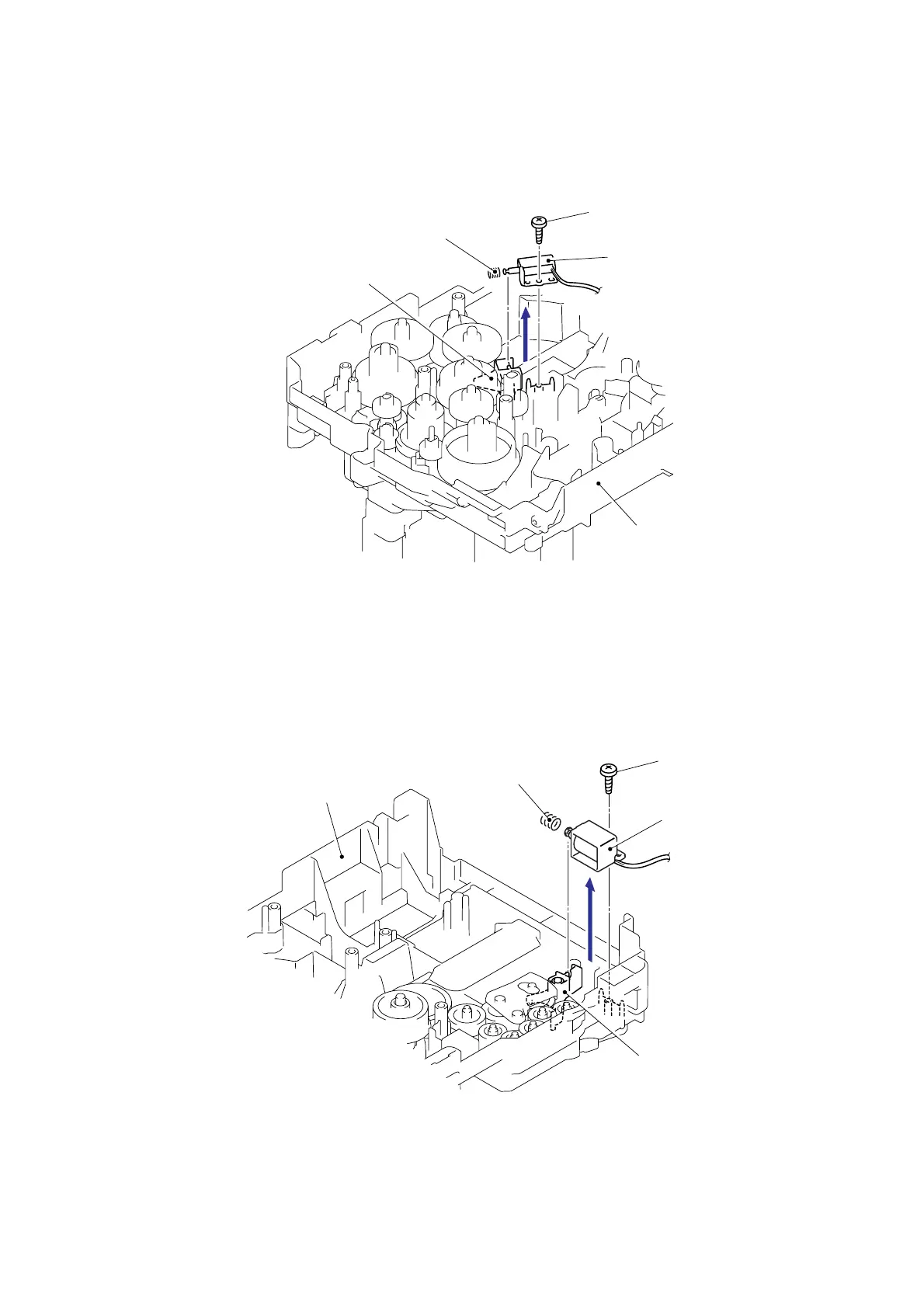

7.21 Register Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Register solenoid ASSY and the Solenoid release spring.
Fig. 5-52
7.22 Ejector Solenoid ASSY (For HL-5250DN/5070DN/5280DW)
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Ejector solenoid and the Solenoid release spring.
Fig. 5-53
Frame L
Solenoid release spring
Taptite, bind B M3x10
Register solenoid ASSY
Register solenoid lever
Solenoid release spring
Taptite, bind B M3x10
Ejector solenoid
Frame L
Ejector solenoid lever
To Next Page
