5.20 POLE DISCREPANCY
In a three-pole CB, certain combinations of poles open and closed are indicative of a problem. The Pole
Discrepancy Logic combines an indication of a Pole Discrepancy condition from the CB Monitoring logic with
signals from the internal Autoreclose logic to produce a combined Pole Discrepancy indication for the CB.
5.20.1 POLE DISCREPANCY LOGIC DIAGRAM
V03384
0
0.04
A/R Lockout
Lockout Alarm
Pol Disc Ext
AR 1 pole in prog
CB Open A ph
CB Open B ph
CB Open C ph
&
1
&
1
Pole Discrepancy
&

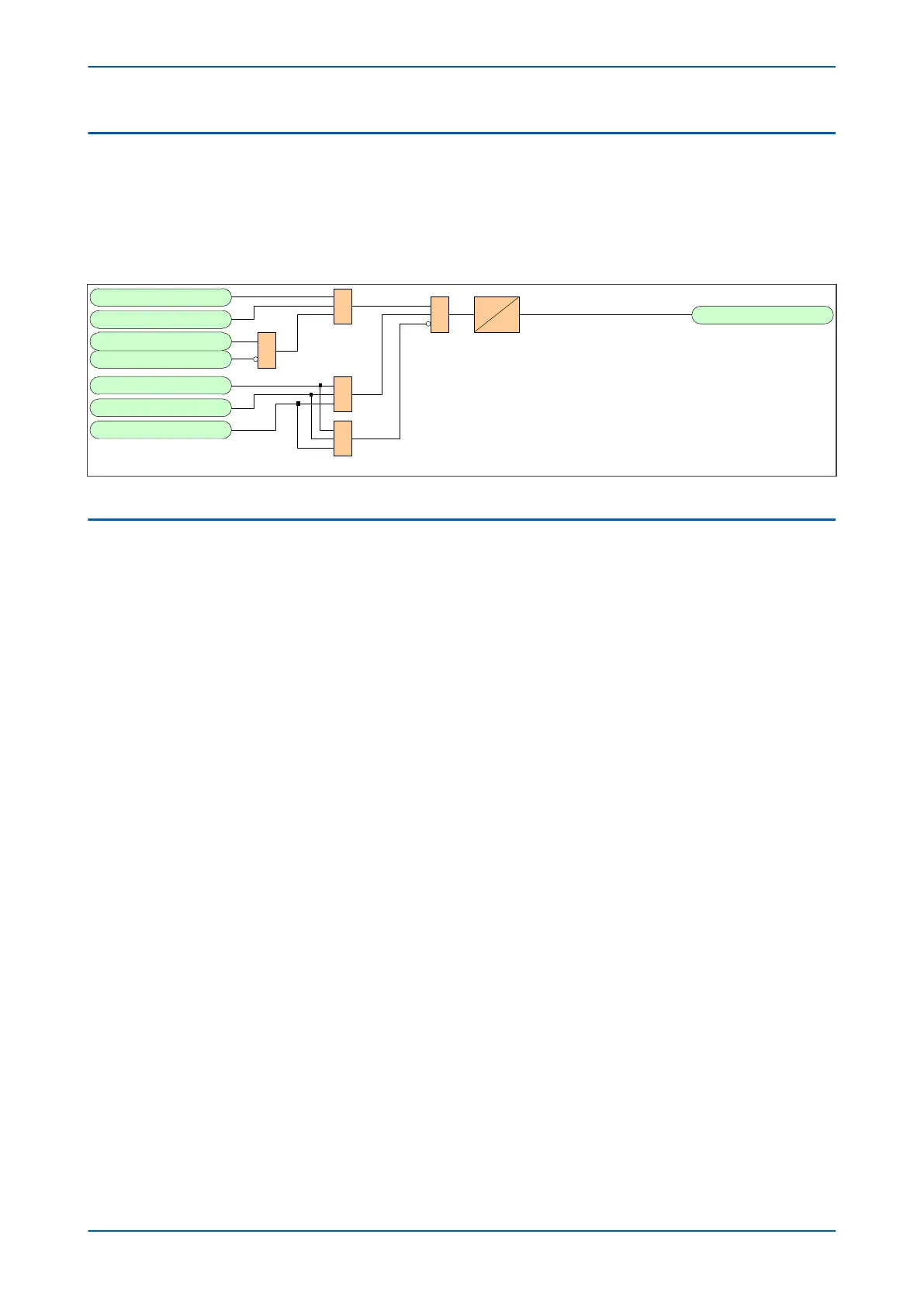

Figure 202: Pole Discrepancy Logic Diagram (Module 62)
5.21
CIRCUIT BREAKER TRIP CONVERSION
Circuit breakers should only trip single-pole or three-pole. The trip conversion logic ensures that the tripping is
either single-pole or three-pole. The trip conversion logic ensures that all conditions that should cause three-pole
tripping do so. Indication of the number of phases that caused tripping is provided.
Chapter 11 - Autoreclose P543i/P545i
342 P54x1i-TM-EN-1
