Honda Metropolitan CHF50 User Manual

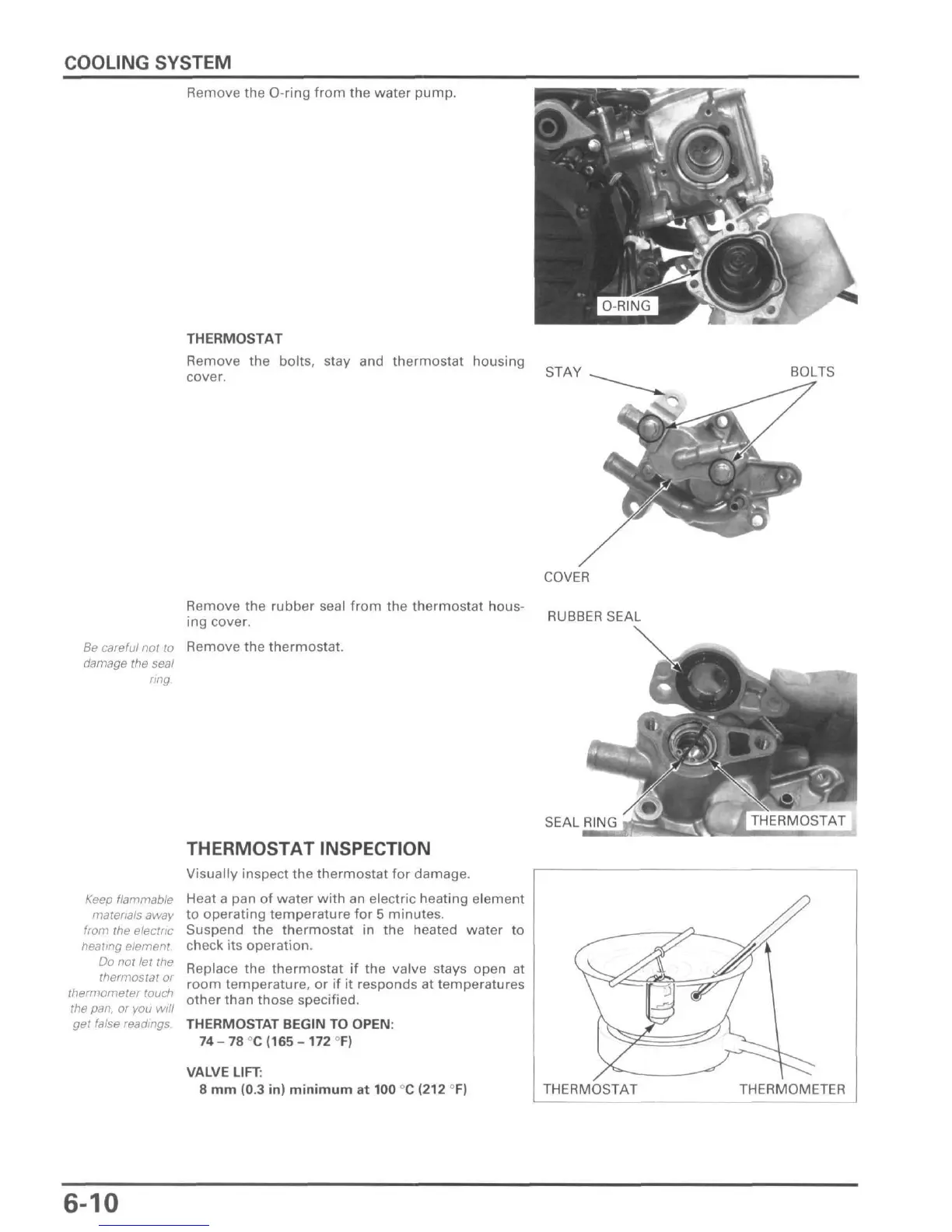

COOLING SYSTEM
Remove the O-ring from the water pump.
Be careful not to
damage the seal
ring.
Keep flammable
materials away
from the electric
heating element-
Do not let the
thermostat or
thermometer touch
the pan, or you will
get false readings.
THERMOSTAT
Remove the bolts, stay and thermostat housing
cover.
STAY BOLTS
Remove the rubber seal from the thermostat hous-
ing cover.
Remove the thermostat.
COVER
RUBBER SEAL
SEAL
THERMOSTAT INSPECTION
Visually inspect the thermostat for damage.
Heat a pan of water with an electric heating element
to operating temperature for 5 minutes.
Suspend the thermostat in the heated water to
check its operation.
Replace the thermostat if the valve stays open at
room temperature, or if it responds at temperatures
other than those specified.
THERMOSTAT BEGIN TO OPEN:
74-78°C(165-172°F)
VALVE LIFT:
8 mm (0.3 in) minimum at 100 C (212 F)
THERMOSTAT THERMOMETER
6-10

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
