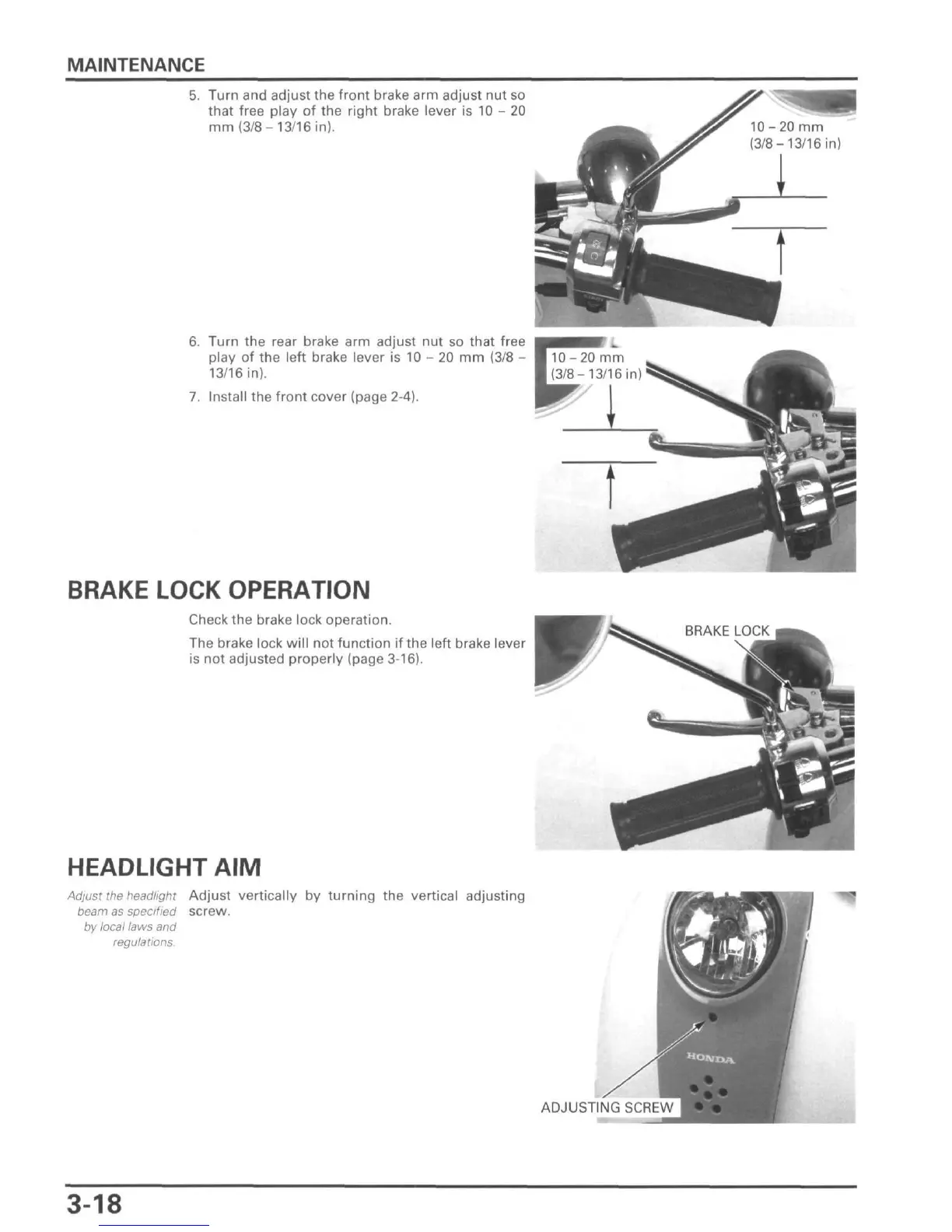

MAINTENANCE
5. Turn and adjust the front brake arm adjust nut so
that free play of the right brake lever is 10 - 20
mm (3/8-13/16 in). 10-20 mm
(3/8-13/16 in)
6. Turn the rear brake arm adjust nut so that free
play of the left brake lever is 10 - 20 mm (3/8 -
13/16 in).
7. Install the front cover (page 2-4).
10-20 mm
(3/8-13/16 in
BRAKE LOCK OPERATION
Check the brake lock operation.
The brake lock will not function if the left brake lever
is not adjusted properly (page 3-16).
HEADLIGHT AIM
Adjust the headlight Adjust vertically by turning the vertical adjusting
beam as specified screw.
by local laws and
regulations.
ADJUSTING SCREW
3-18

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
