Honda Metropolitan CHF50 User Manual

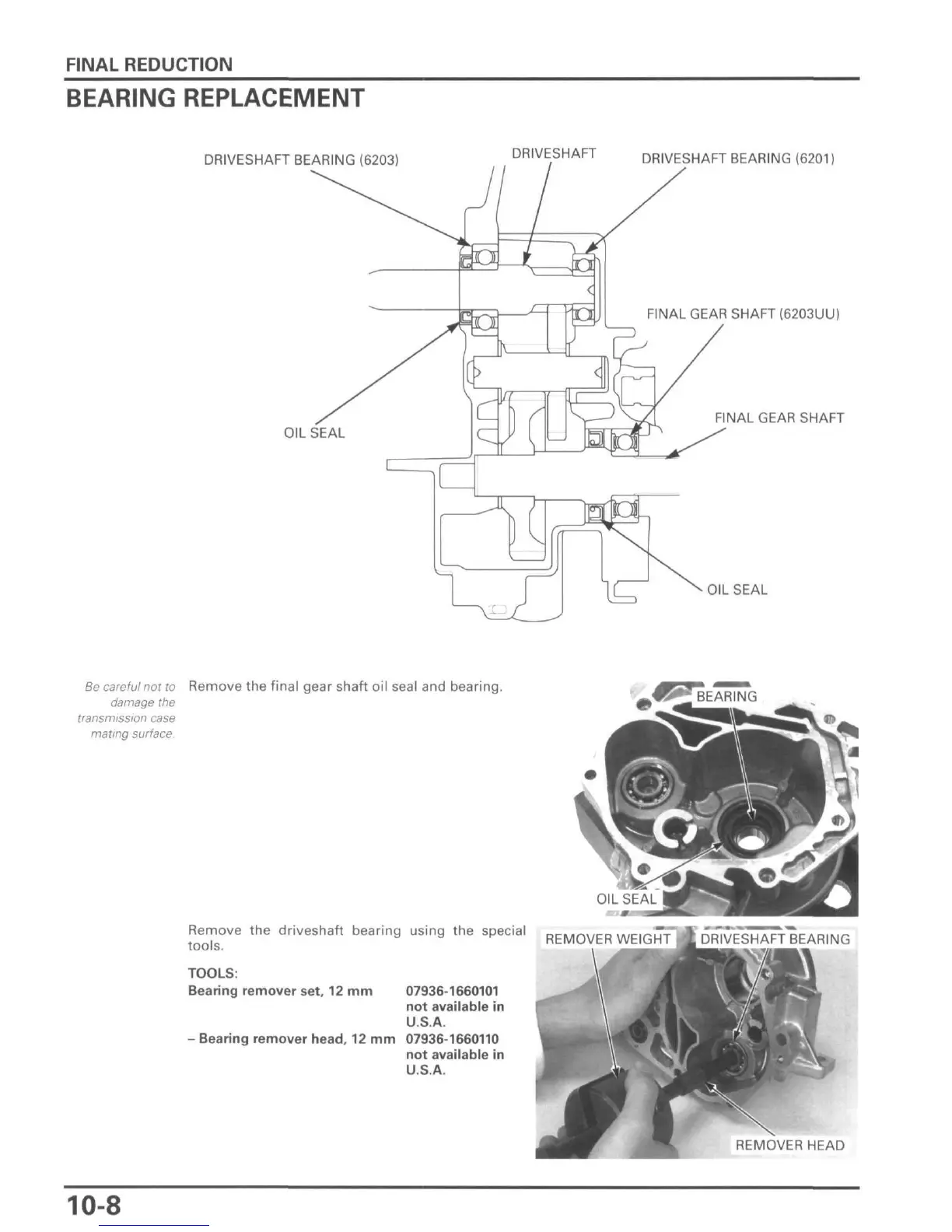

FINAL REDUCTION
BEARING REPLACEMENT
DRIVESHAFT BEARING (6203)
OIL SEAL
DRIVESHAFT DRIVESHAFT BEARING (6201)
FINAL GEAR SHAFT (6203UU)
FINAL GEAR SHAFT
OIL SEAL
Be careful not to Remove the final gear shaft oil seal and bearing.
damage the
transmission case
mating surface.
Remove the driveshaft bearing using the special
tools.
TOOLS:
Bearing remover set, 12 mm 07936-1660101
not available in
U.S.A.
- Bearing remover head, 12 mm 07936-1660110
not available in
U.S.A.
REMOVER WEIGHT • DRIVESHAFT BEARING
REMOVER HEAD
10-8

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
