Honda Metropolitan CHF50 User Manual

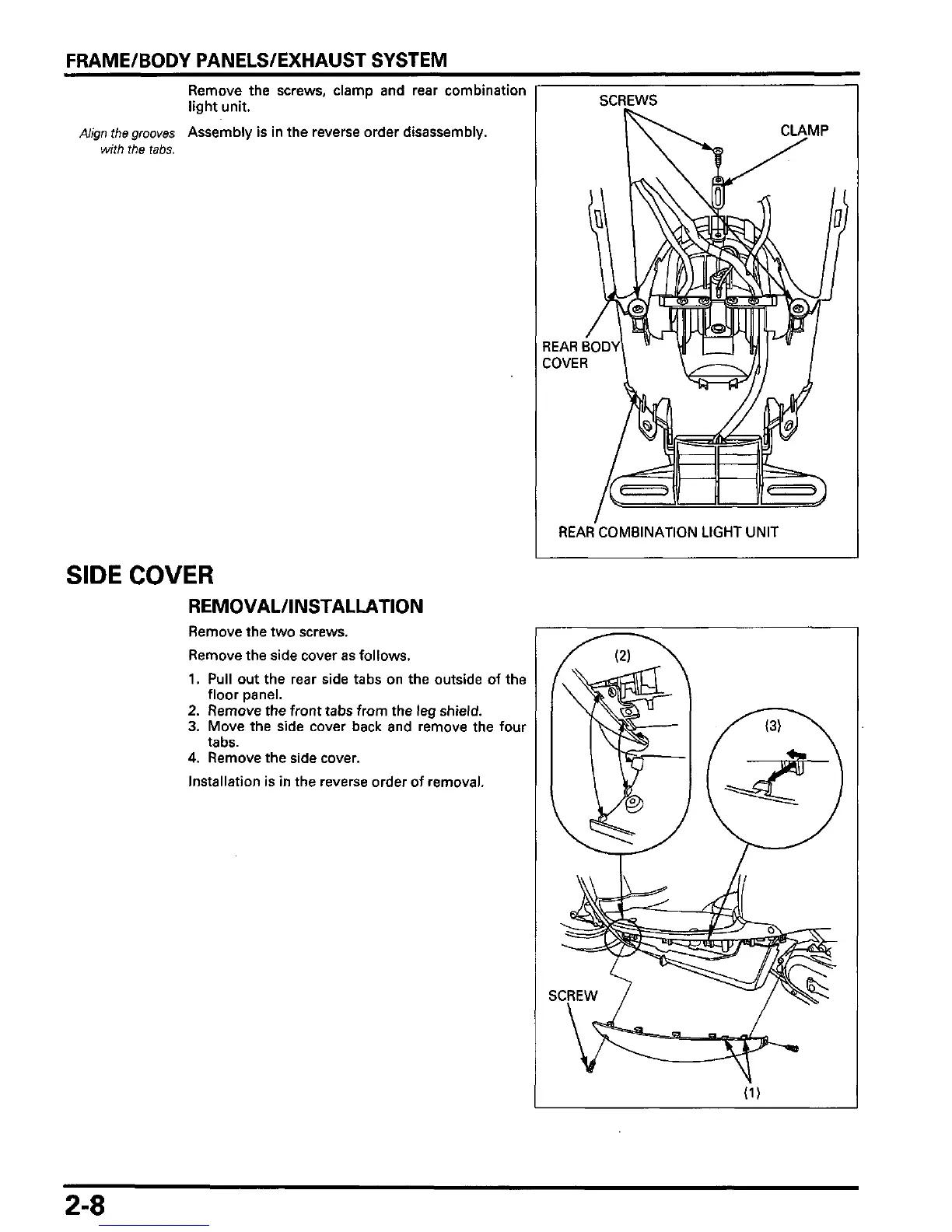

FRAME/BODY PANELS/EXHAUST SYSTEM
Remove the screws, clamp and rear combination
light unit.
Align the grooves A s s e m b l y is in the reverse order disassembly.
with the tabs.
SCREWS
CLAMP
REAR BODY\
COVER
REAR COMBINATION LIGHT UNIT
SIDE COVER
REMOVAL/INSTALLATION
Remove the two screws.
Remove the side cover as follows.
1. Pull out the rear side tabs on the outside of the
floor panel.
2. Remove the front tabs from the leg shield.
3. Move the side cover back and remove the four
tabs.
4. Remove the side cover.
Installation is in the reverse order of removal.
2-8

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
