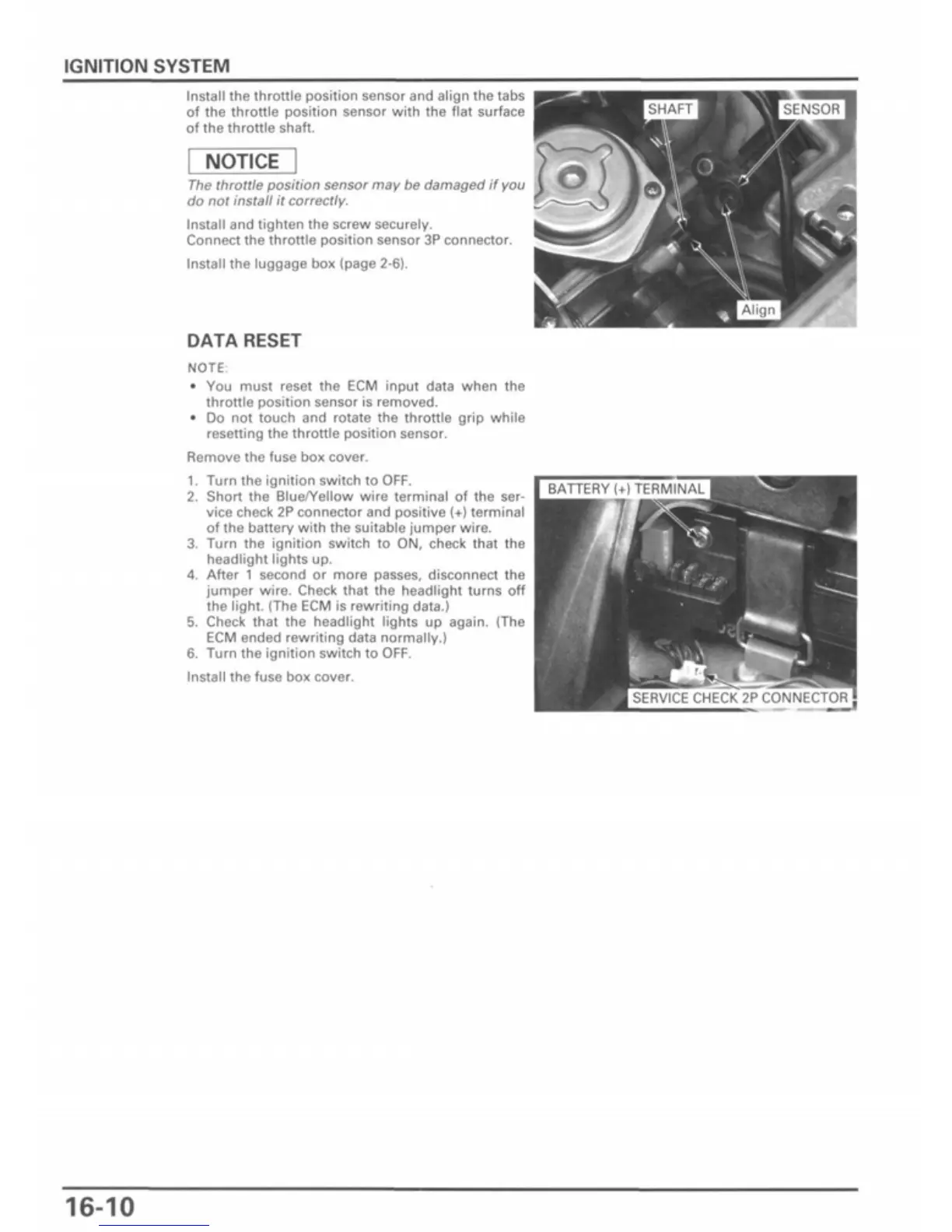

IGNITION SYSTEM
Install the throttle position sensor and align the tabs
of the throttle position sensor with the flat surface
of the throttle shaft.
NOTICE
The throttle position sensor may be damaged if you
do not install it correctly.
Install and tighten the screw securely.
Connect the throttle position sensor 3P connector.
Install the luggage box (page 2-6).
DATA RESET
NOTE:
•
You must reset the ECM input data when the
throttle position sensor is removed.
•
Do not touch and rotate the throttle grip while
resetting the throttle position sensor.
Remove the fuse box cover.
1.
Turn the ignition switch to OFF.
2.
Short the Blue/Yellow wire terminal of the ser-
vice check 2P connector and positive (+) terminal
of the battery with the suitable jumper wire.
3. Turn the ignition switch to ON, check that the
headlight lights up.
4.
After 1 second or more passes, disconnect the
jumper wire. Check that the headlight turns off
the light. (The ECM is rewriting data.)
5. Check that the headlight lights up again. (The
ECM ended rewriting data normally.)
6.
Turn the ignition switch to OFF.
Install the fuse box cover.
BATTERY (+) TERMINAL
SERVICE CHECK 2P CONNECTOR
16-10
