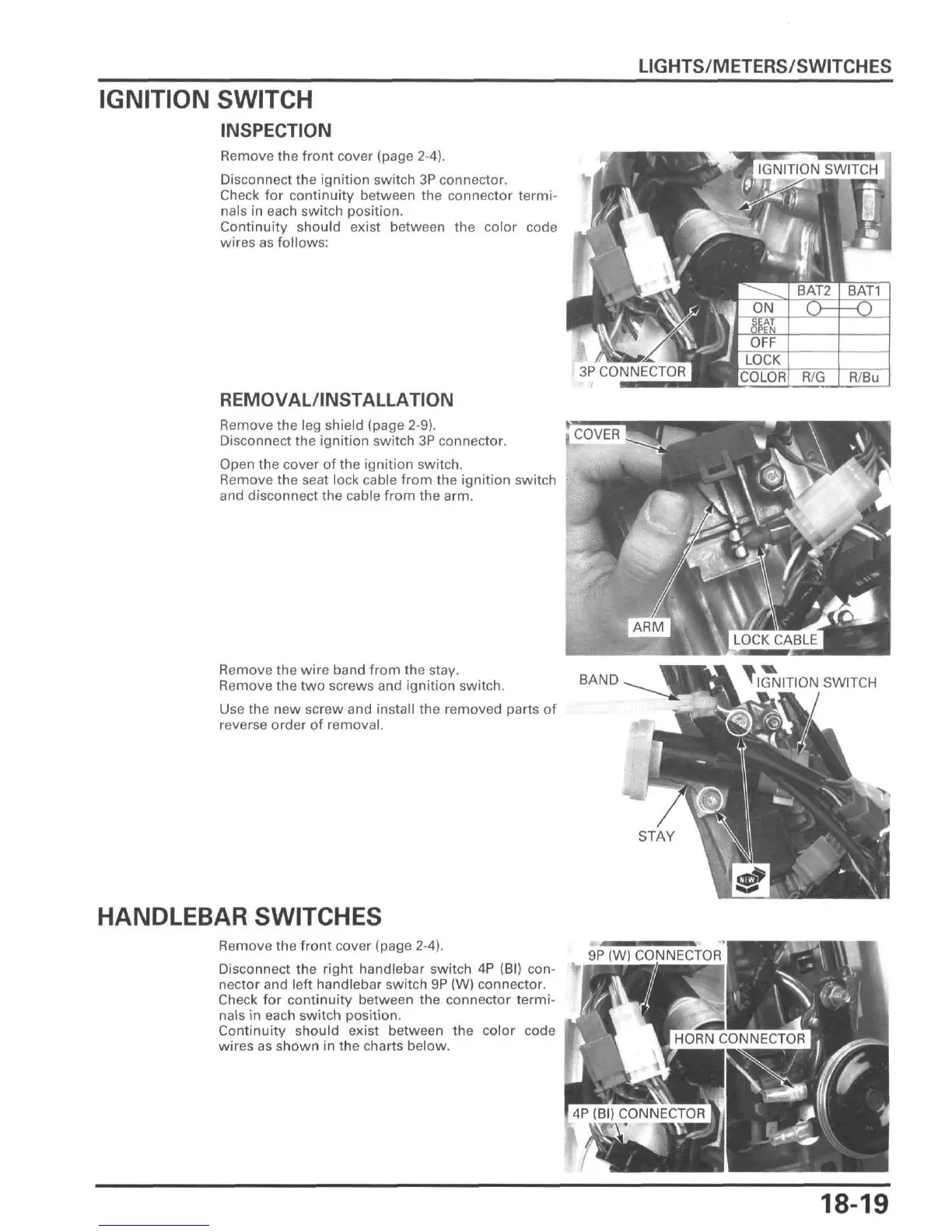

LIGHTS/METERS/SWITCHES
IGNITION SWITCH
INSPECTION
Remove the front cover (page 2-4).
Disconnect the ignition switch 3P connector.
Check for continuity between the connector termi-
nals in each switch position.
Continuity should exist between the color code
wires as follows:
f IGNITION SWITCH
CONNECTOR
1 ON
1 OFF
1 LOCK
|COLOR
BAT2
o-
R/G
BAT1
- o
R/Bu
REMOVAL/INSTALLATION
Remove the leg shield (page 2-9).
Disconnect the ignition switch 3P connector.
Open the cover of the ignition switch.
Remove the seat lock cable from the ignition switch
and disconnect the cable from the arm.
Remove the wire band from the stay.
Remove the two screws and ignition switch.
Use the new screw and install the removed parts of
reverse order of removal.
STAY
HANDLEBAR SWITCHES
Remove the front cover (page 2-4).
Disconnect the right handlebar switch 4P (Bl) con-
nector and left handlebar switch 9P (W) connector.
Check for continuity between the connector termi-
nals in each switch position.
Continuity should exist between the color code
wires as shown in the charts below.
18-19

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
