FRAME/BODY PANELS/EXHAUST SYSTEM

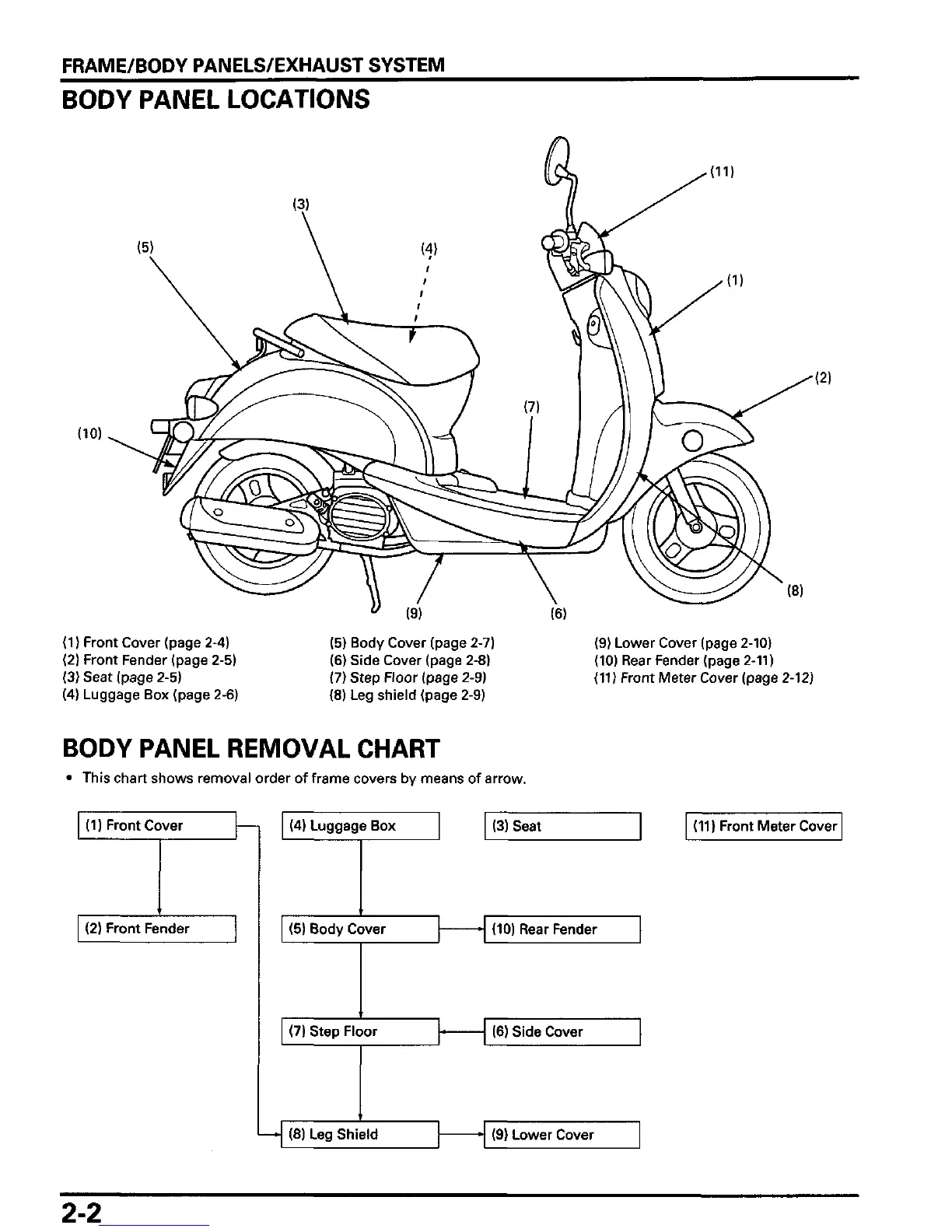

BODY PANEL LOCATIONS
(3)
(5)
(6)
(11)
(1) Front Cover (page 2-4)
(2) Front Fender (page 2-5)
(3) Seat (page 2-5)
(4) Luggage Box (page 2-6)
(5) Body Cover (page 2-7)
(6) Side Cover (page 2-8)
(7) Step Floor (page 2-9)
(8) Leg shield (page 2-9)
(8)
(9) Lower Cover (page 2-10)
(10) Rear Fender (page 2-11)
(11) Front Meter Cover (page 2-12)
BODY PANEL REMOVAL CHART
• This chart shows removal order of frame covers by means of arrow.
(1) Front Cover —
(2) Front Fender
(4) Luggage Box
(5) Body Cover
(7) Step Floor
(8) Leg Shield
(3) Seat
(10) Rear Fender
(6) Side Cover
(9) Lower Cover
(11) Front Meter Cover
2-2

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
