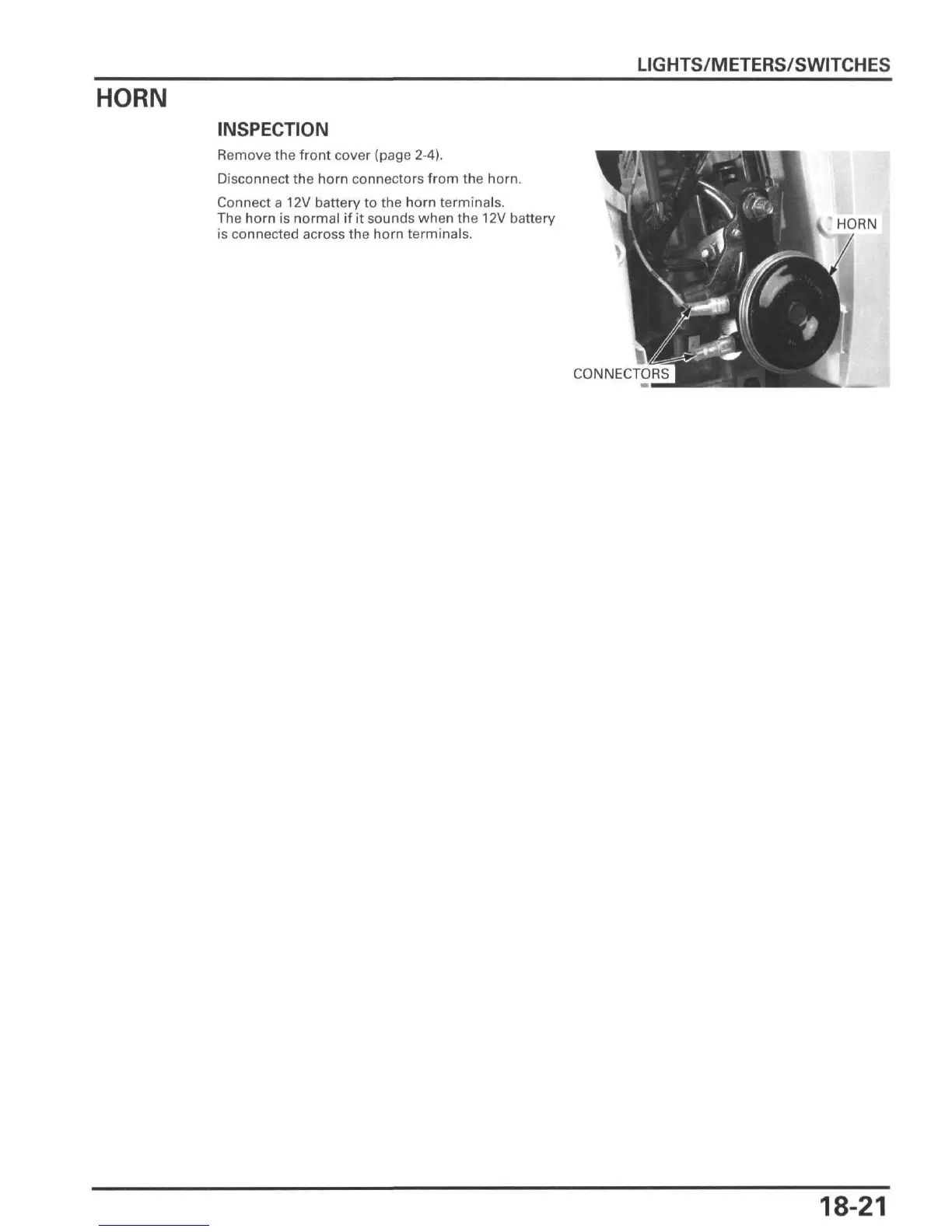

LIGHTS/METERS/SWITCHES

HORN

INSPECTION

Remove the front cover (page 2-4).

Disconnect the horn connectors from the

horn.

Connect a 12V battery to the horn terminals.

The horn is normal if it sounds when the 12V battery

is connected across the horn terminals.

HORN

CONNECTORS

18-21

Questions and Answers:

Need help?

Do you have a question about the Honda Metropolitan CHF50 and is the answer not in the manual?

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
