Honda Metropolitan CHF50 User Manual

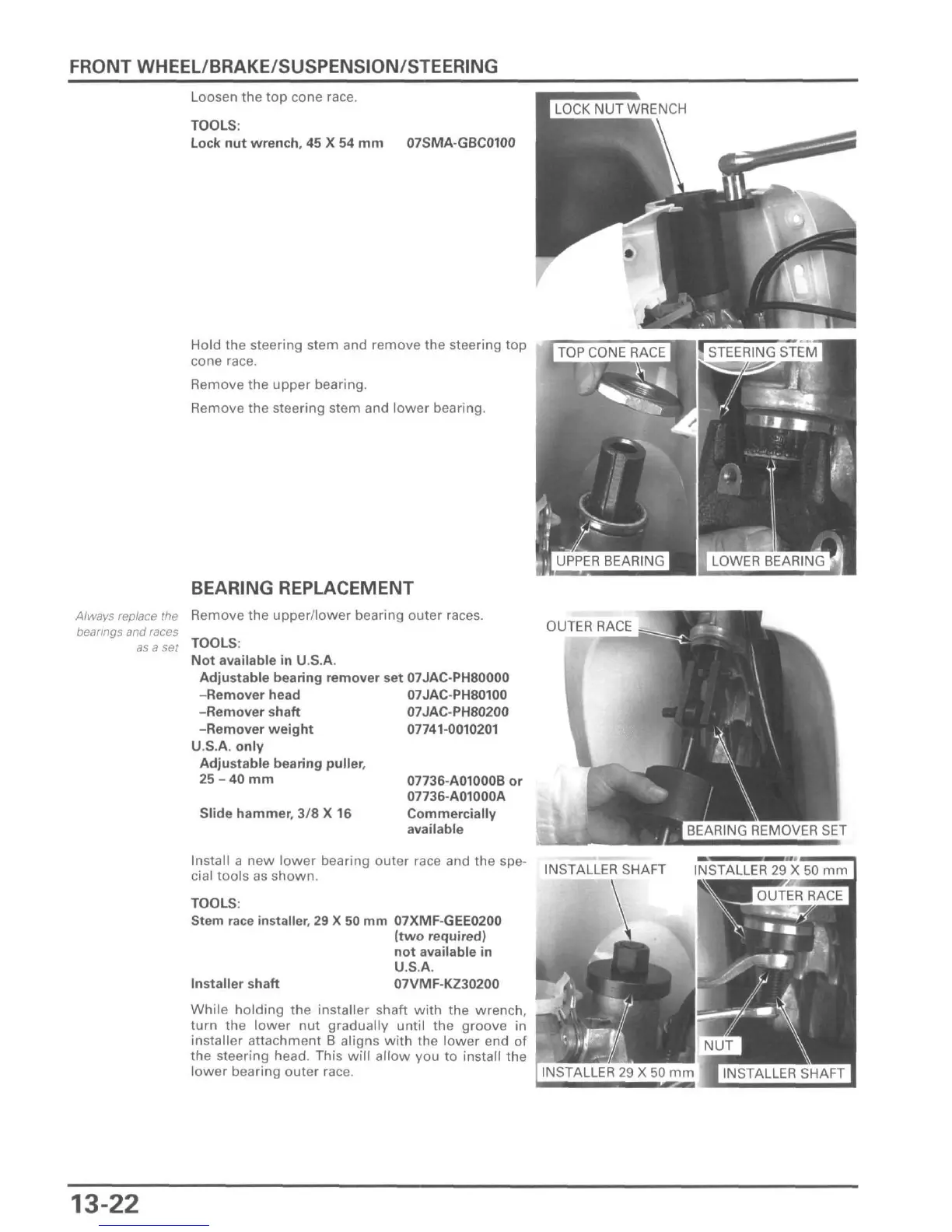

FRONT WHEEL/BRAKE/SUSPENSION/STEERING
Loosen the top cone race.
TOOLS:
Lock nut wrench, 45 X 54 mm 07SMA-GBC0100
Hold the steering stem and remove the steering top
cone race.
Remove the upper bearing.
Remove the steering stem and lower bearing.
Always replace the
bearings and races
as a set
BEARING REPLACEMENT
Remove the upper/lower bearing outer races.
TOOLS:
Not available in U.S.A.
Adjustable bearing remover set 07JAC-PH80000
-Remover head
-Remover shaft
-Remover weight
U.S.A. only
Adjustable bearing puller,
25 - 40 m m
Slide hammer, 3/8 X 16
07JAC-PH80100
07JAC-PH80200
07741-0010201
07736-A01000B or
07736-A01000A
Commercially
available
Install a new lower bearing outer race and the spe-
cial tools as show n.
TOOLS:
Stem race installer, 29 X 50 mm 07XMF-GEE0200
(two required)
not available in
U.S.A.
Installer shaft 07VMF-KZ30200
While holding the installer shaft with the wrench,
turn the lower nut gradually until the groove in
installer attachment B aligns with the lower end of
the steering head. This will allow you to install the
lower bearing outer race.
LOWER BEARING^
OUTER RACE
BEARING REMOVER SET
INSTALLER SHAFT
INSTALLER 29 X 50 mm
OUTER RACE
INSTALLER 29X50 mm
INSTALLER SHAFT
13-22

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
