Honda Metropolitan CHF50 User Manual

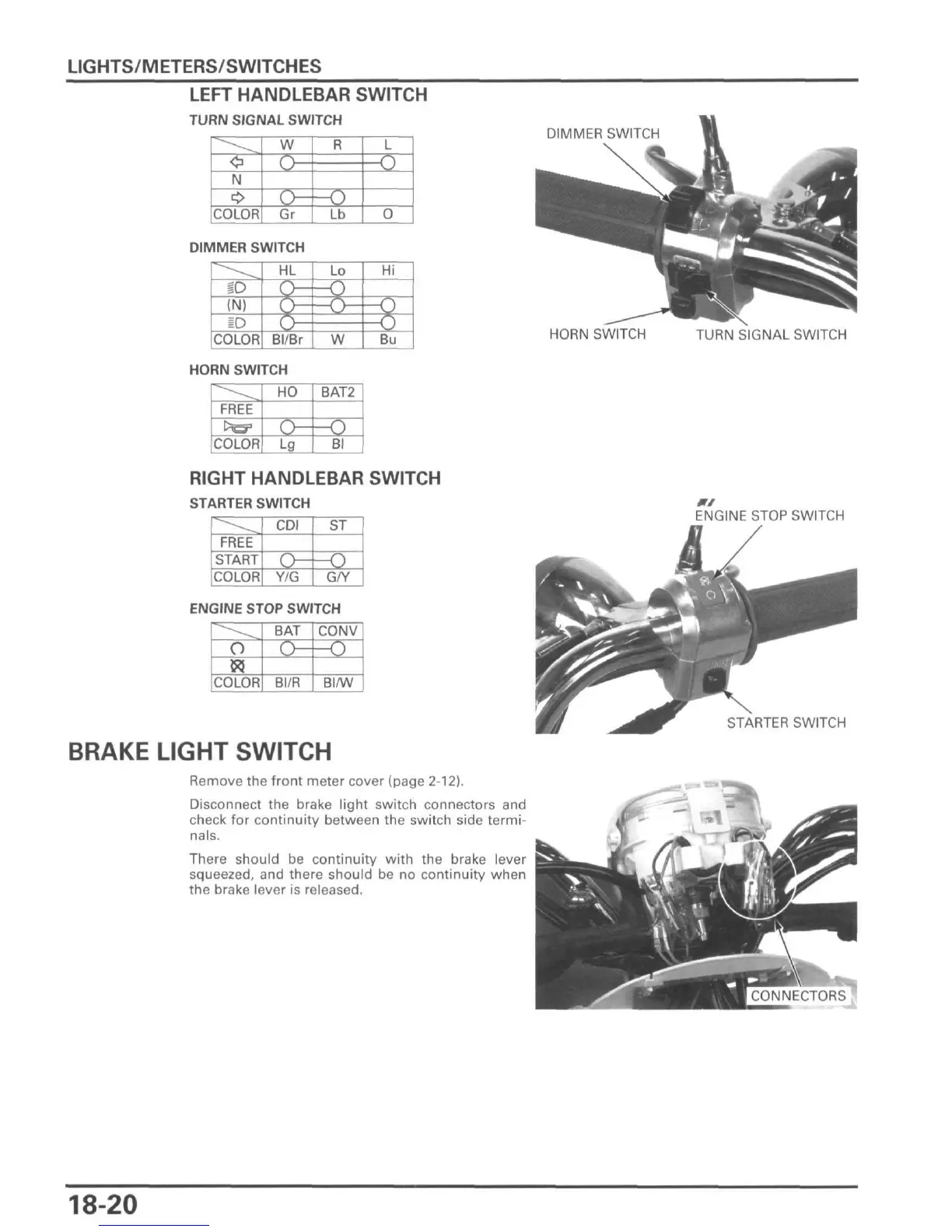

LIGHTS/METERS/SWITCHES
LEFT HANDLEBAR SWITCH
TURN SIGNAL SWITCH
o
N
COLOR
W
O—
o-
Gr
R
Lb
L
—o
0
DIMMER SWITCH
ID
(N)
I D
COLOR
HL
(y-
6-
A
\J
Bl/Br
Lo
—0
W
Hi
- g
n
Bu
HORN SWITCH
FREE
COLOR
HO
(>-
Lg
BAT2
-o
Bl
RIGHT HANDLEBAR SWITCH
STARTER SWITCH
FREE
START
COLOR
CDI
C ^
Y/G
ST
-o
G/Y
ENGINE STOP SWITCH
o
COLOR
BAT
0-
Bl/R
CONV
-0
Bl/W
BRAKE LIGHT SWITCH
DIMMER SWITCH
HORN SWITCH
TURN SIGNAL SWITCH
ENGINE STOP SWITCH
STARTER SWITCH
Remove the front meter cover (page 2-12).
Disconnect the brake light switch connectors and
check for continuity between the switch side termi-
nals.
There should be continuity with the brake lever
squeezed, and there should be no continuity when
the brake lever is released.
18-20

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
