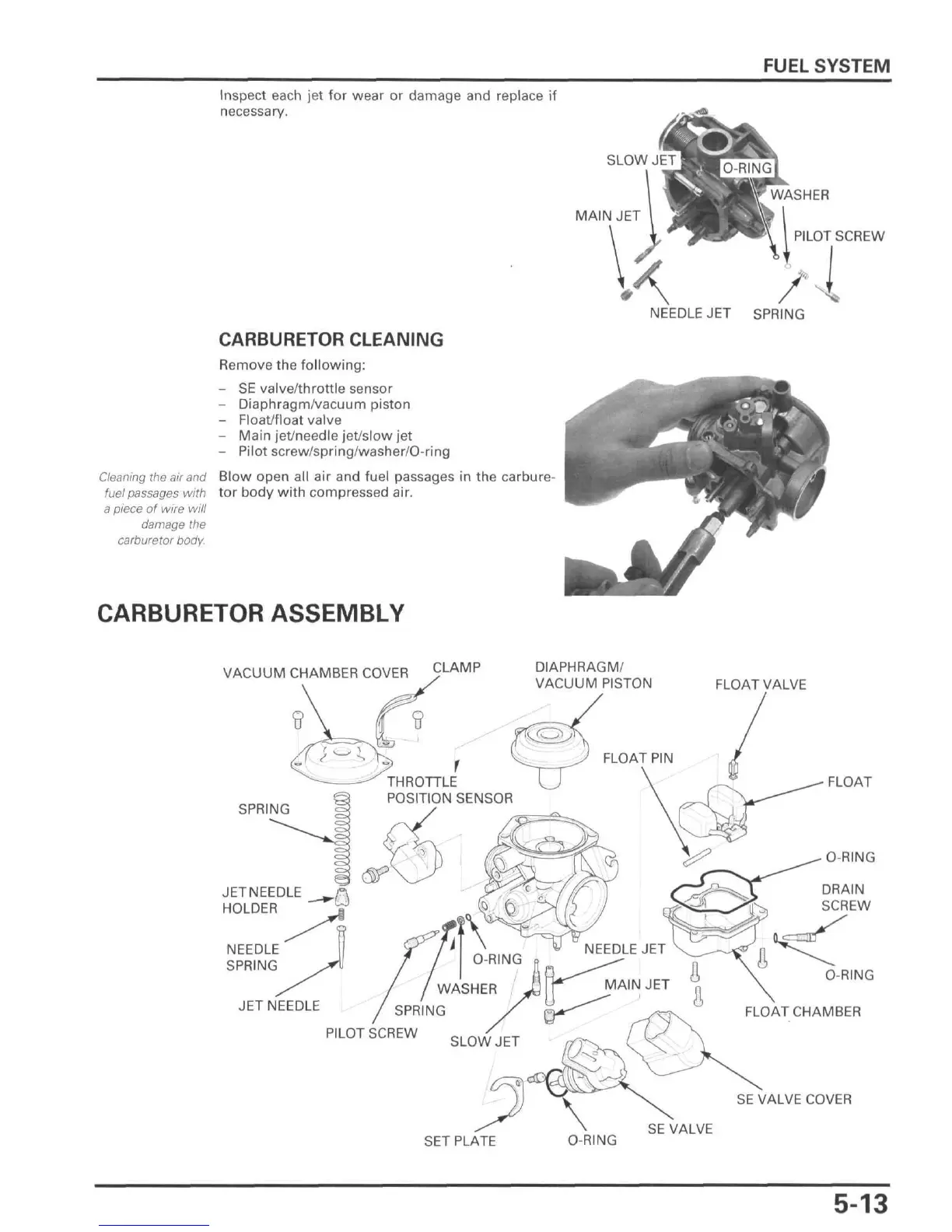

FUEL SYSTEM
Inspect each jet for wear or damage and replace if
necessary.
SLOW JET
MAIN JET
WASHER
PILOT SCREW
NEEDLE JET SPRING
CARBURETOR CLEANING
Remove the following:
- SE valve/throttle sensor
- Diaphragm/vacuum piston
- Float/float valve
- Main jet/needle jet/slow jet
- Pilot screw/spring/washer/O-ring
Cleaning the air and Blow open all air and fuel passages in the carbure-
fuelpassages with tor body with compressed air.
a piece of wire will
damage the
carburetor body.
CARBURETOR ASSEMBLY
THROTTLE
POSITION SENSOR
VACUUM CHAMBER COVER 9
LAMP
SPRING
JET NEEDLE A
HOLDER
W
NEEDLE
SPRING
JET NEEDLE
PILOT SCREW
DIAPHRAGM/
VACUUM PISTON
FLOAT PIN
FLOAT VALVE
NEEDLE JET
\f^"^ MAIN JET ~
SLOW JET
FLOAT
O-RING
FLOAT CHAMBER
SE VALVE COVER
SET PLATE
O-RING
SE VALVE
5-13

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
