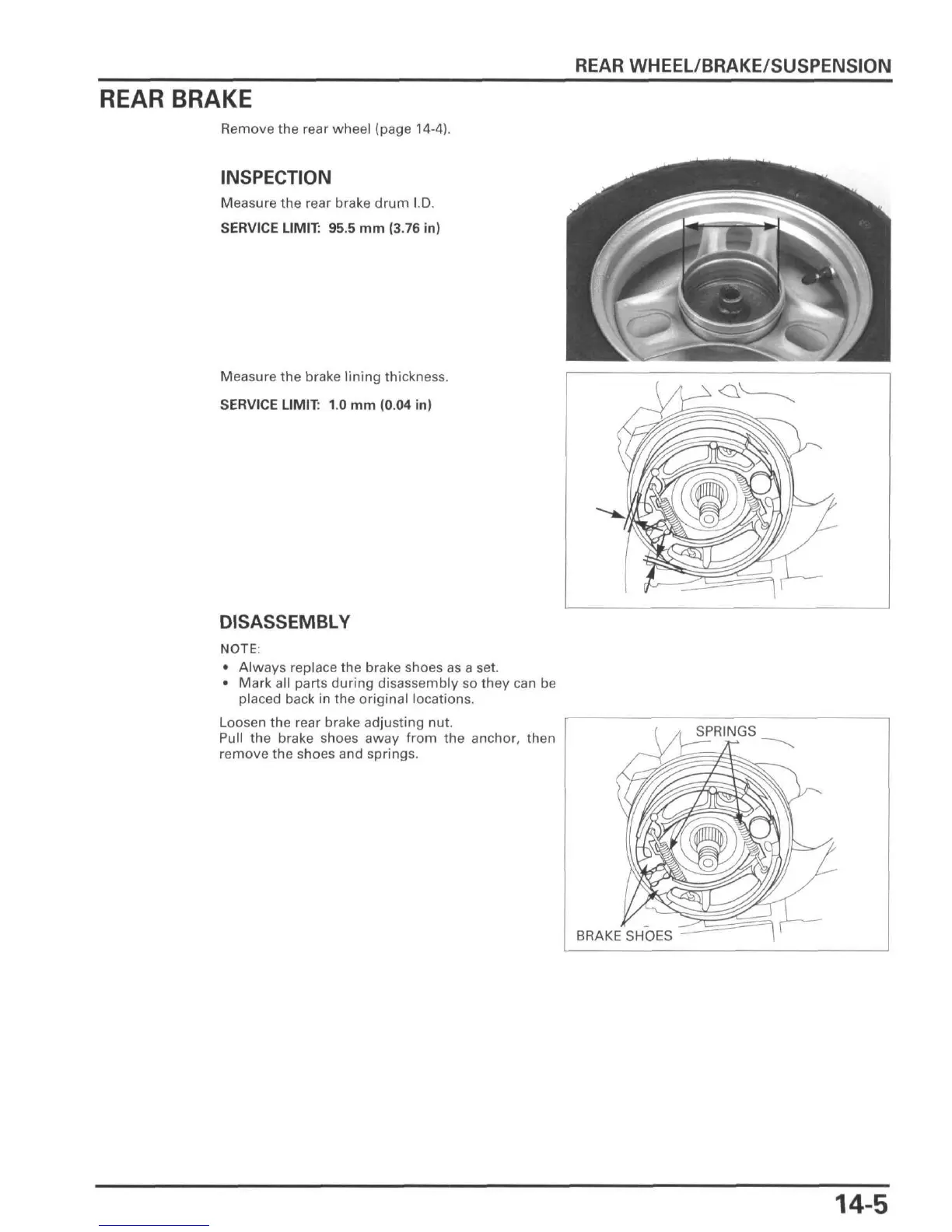

REAR WHEEL/BRAKE/SUSPENSION
REAR BRAKE
Remove the rear wheel (page 14-4).
INSPECTION
Measure the rear brake drum I.D.
SERVICE LIMIT: 95.5 mm (3.76 i n)
Measure the brake lining thickness.
SERVICE LIMIT: 1.0 mm (0.04 in)
DISASSEMBLY
NOTE:
• Always replace the brake shoes as a set.
• Mark all parts during disassembly so they can be
placed back in the original locations.
Loosen the rear brake adjusting nut.
Pull the brake shoes away from the anchor, then
remove the shoes and springs.
SPRINGS
BRAKE SHOES
14-5

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
