Honda Metropolitan CHF50 User Manual

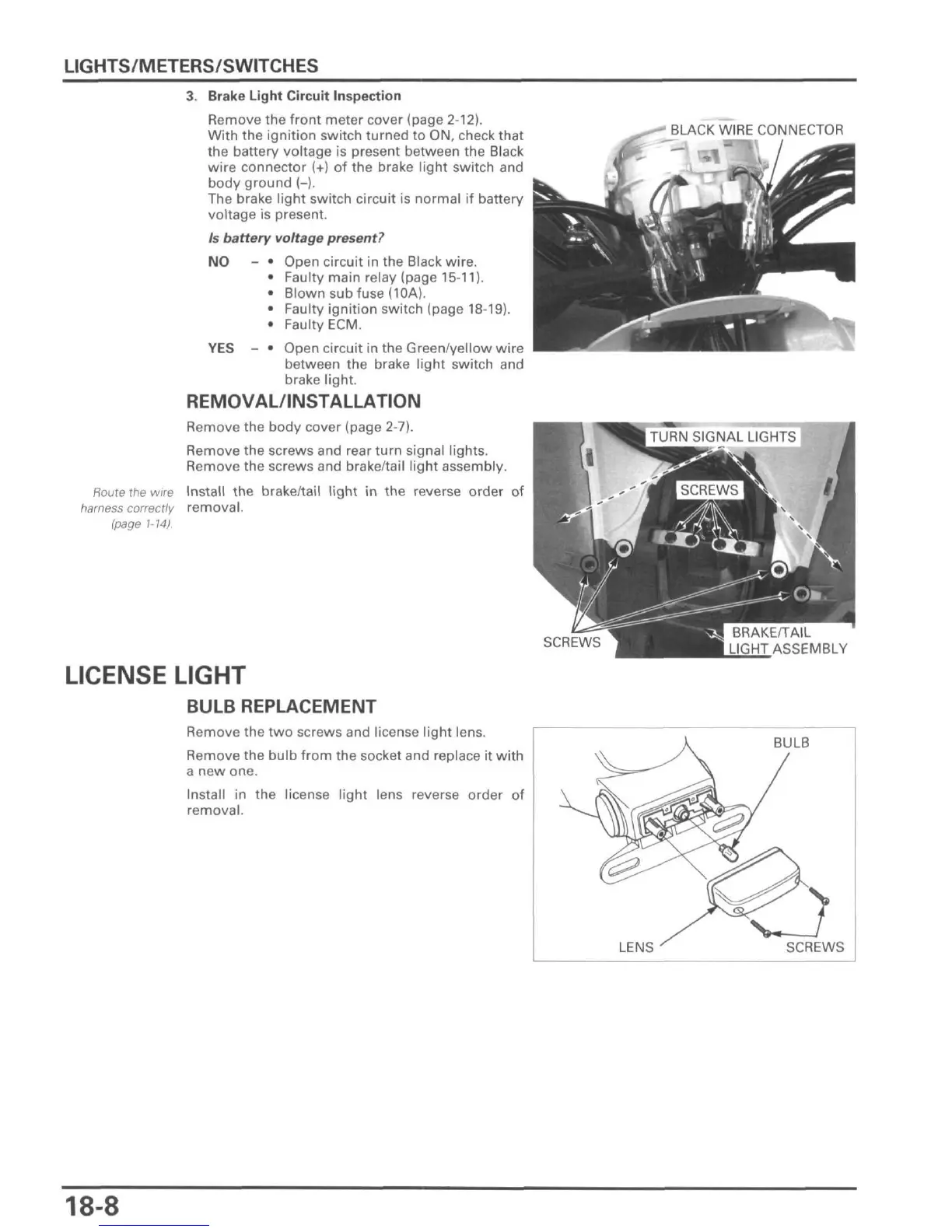

LIGHTS/METERS/SWITCHES
Route the wire
harness correctly
(page 1-14).
3. Brake Light Circuit Inspection
Remove the front meter cover (page 2-12).
With the ignition switch turned to ON, check that
the battery voltage is present between the Black
wire connector (+) of the brake light switch and
body ground (-).
The brake light switch circuit is normal if battery
voltage is present.
Is battery voltage present?
NO - • Open circuit in the Black wire.
Faulty main relay (page 15-11).
Blown sub fuse (10A).
Faulty ignition switch (page 18-19).
Faulty ECM.
YES - • Open circuit in the Green/yellow wire
between the brake light switch and
brake light.
REMOVAL/INSTALLATION
Remove the body cover (page 2-7).
Remove the screws and rear turn signal lights.
Remove the screws and brake/tail light assembly.
Install the brake/tail light in the reverse order of
removal.
LICENSE LIGHT
BULB REPLACEMENT
Remove the two screws and license light lens.
Remove the bulb from the socket and replace it with
a new one.
Install in the license light lens reverse order of
removal.
BLACK WIRE CONNECTOR
SCREWS
BRAKE/TAIL
LIGHT ASSEMBLY
18-8

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
