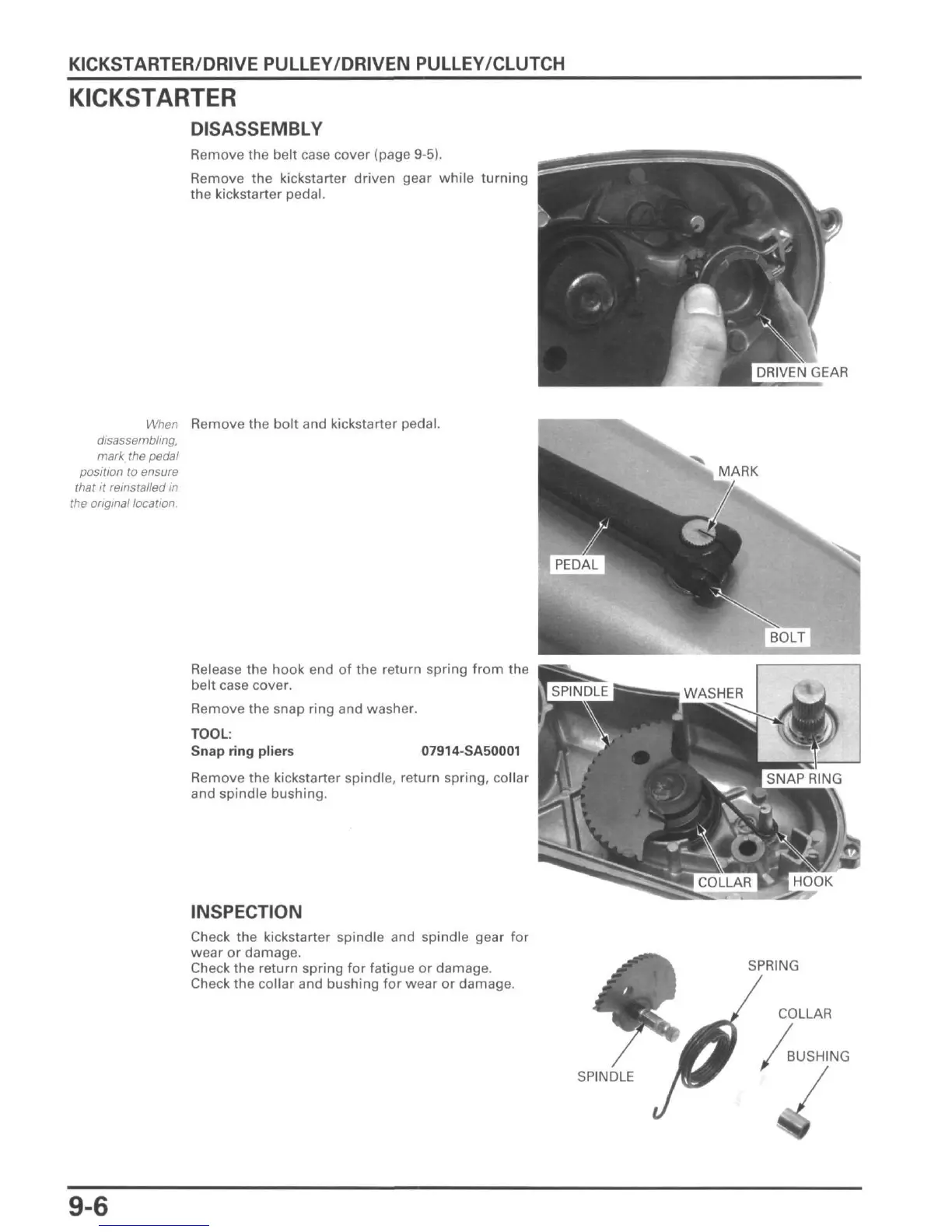

KICKSTARTER/DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
KICKSTARTER
DISASSEMBLY
Remove the belt case cover (page 9-5).
Remove the kickstarter driven gear while turning
the kickstarter pedal.
When
disassembling,
mark the pedal
position to ensure
that it reinstalled in
the original location.
Remove the bolt and kickstarter pedal.
MARK
Release the hook end of the return spring from the
belt case cover.
Remove the snap ring and washer.
TOOL:
Snap ring pliers
07914-SA50001
Remove the kickstarter spindle, return spring, collar
and spindle bushing.
INSPECTION
Check the kickstarter spindle and spindle gear for
wear or damage.
Check the return spring for fatigue or damage.
Check the collar and bushing for wear or damage.
SPINDLE
9-6

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
