Honda Metropolitan CHF50 User Manual

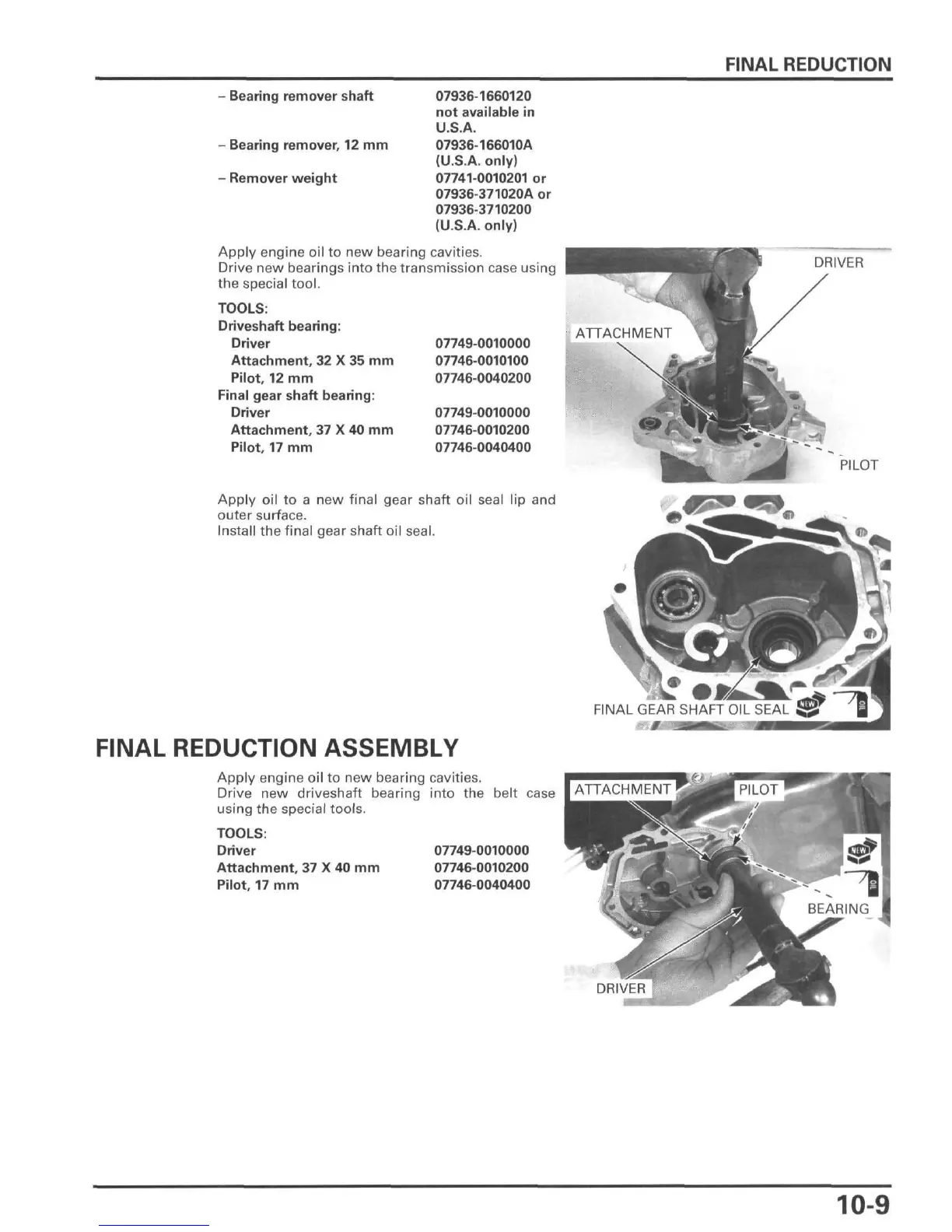

FINAL REDUCTION
- Bearing remover shaft
- Bearing remover, 12 mm
- Remover weight
07936-1660120
not available in
U.S.A.
07936-166010A
(U.S.A. only)
07741-0010201 or
07936-371020A or
07936-3710200
(U.S.A. only)
Apply engine oil to new bearing cavities.
Drive new bearings into the transmission case using
the special tool.
TOOLS:
Driveshaft bearing:
Driver 07749-0010000
Attachment, 32 X 35 mm 07746-0010100
Pilot, 12 m m 07746-0040200
Final gear shaft bearing:
Driver 07749-0010000
Attachment, 37 X 40 mm 07746-0010200
Pilot, 17 m m 07746-0040400
Apply oil to a new final gear shaft oil seal lip and
outer surface.
Install the final gear shaft oil seal.
FINAL GEAR SHAFT OIL SEAL
FINAL REDUCTION ASSEMBLY
Apply engine oil to new bearing cavities.
Drive new driveshaft bearing into the belt case
using the special tools.
TOOLS:
Driver
Attachment, 37 X 40 m m
Pilot, 17 mm
07749-0010000
07746-0010200
07746-0040400
10-9

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
