Honda Metropolitan CHF50 User Manual

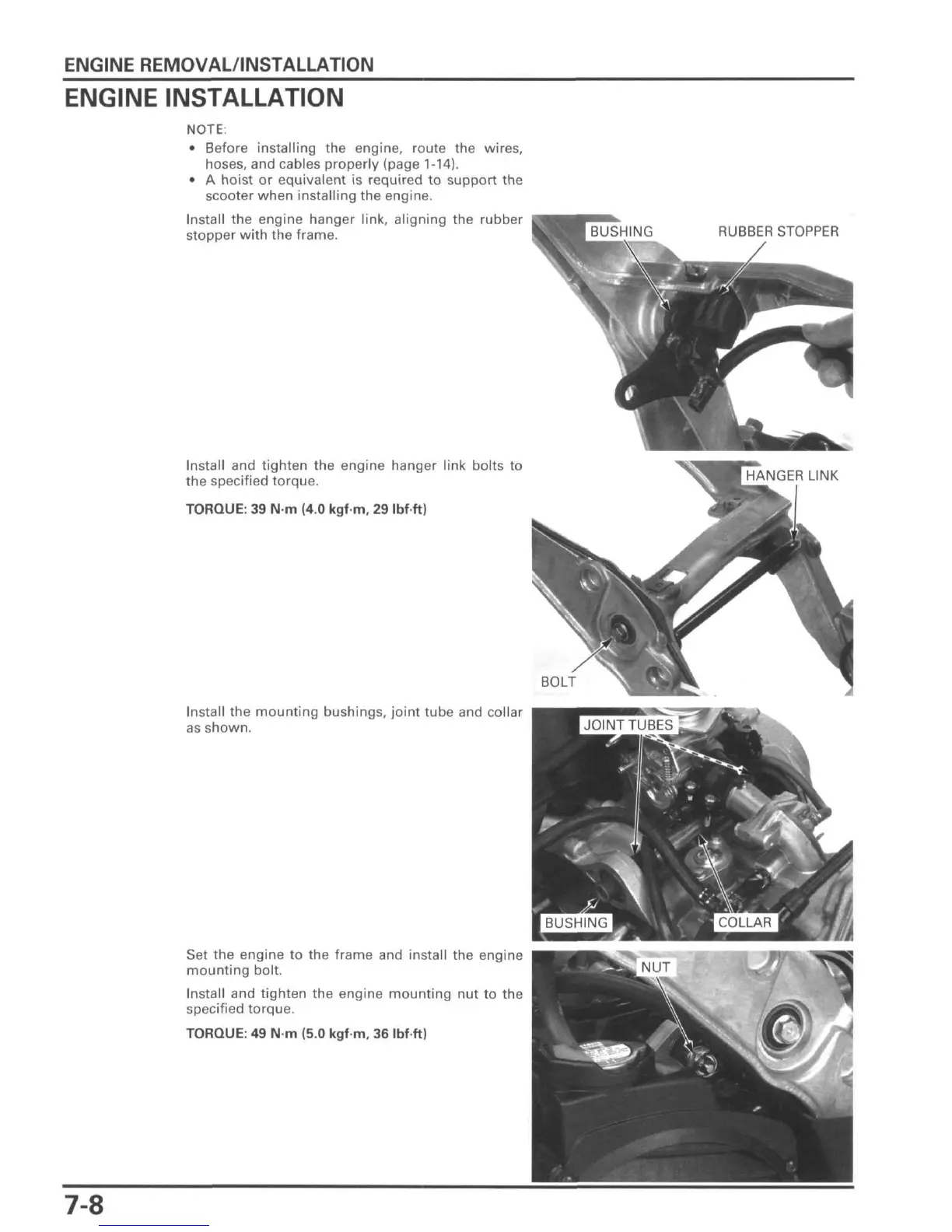

ENGINE REMOVAL/INSTALLATION
ENGINE INSTALLATION
NOTE.
• Before installing the engine, route the wires,
hoses, and cables properly (page 1-14).
• A hoist or equivalent is required to support the
scooter when installing the engine.
Install the engine hanger link, aligning the rubber
stopper with the frame.
BUSHING RUBBER STOPPER
Install and tighten the engine hanger link bolts to
the specified torque.
TORQUE: 39 N m (4.0 kgf m, 29 Ibf-ft)
Install the mounting bushings, joint tube and collar
as shown.
Set the engine to the frame and install the engine
mounting bolt.
Install and tighten the engine mounting nut to the
specified torque.
TORQUE: 49 N m (5.0 kgf m, 36 Ibf-ft)
7-8

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
