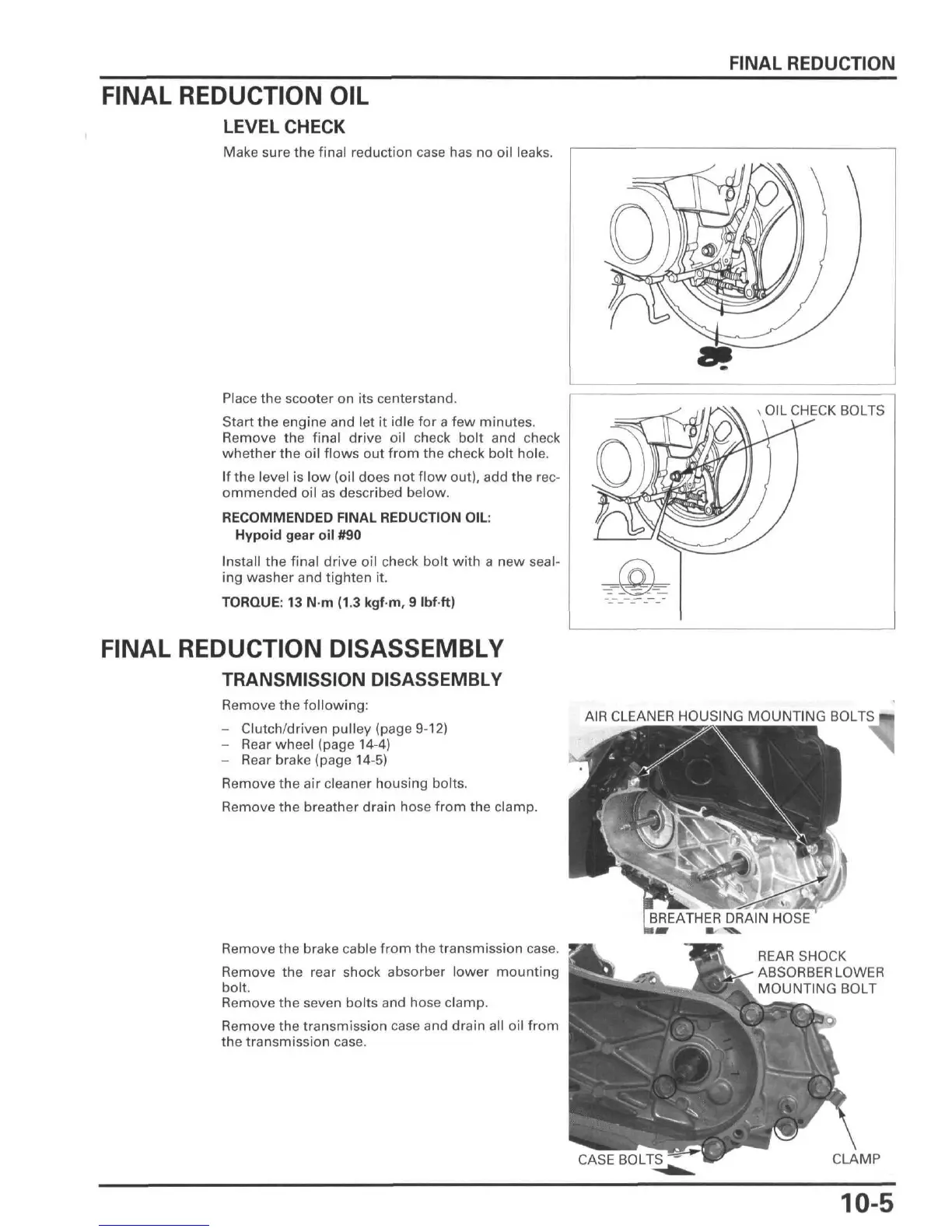

FINAL REDUCTION
FINAL REDUCTION
OIL
LEVEL CHECK
Make sure the final reduction case has no oil leaks.
Place the scooter on its centerstand.
Start the engine and let it idle for a few minutes.
Remove the final drive oil check bolt and check
whether the oil flows out from the check bolt hole.
If the level is low (oil does not flow out), add the rec-
ommended oil as described below.
RECOMMENDED FINAL REDUCTION OIL:
Hypoid gear oil #90
Install the final drive oil check bolt with a new
seal-
ing washer and tighten it.
TORQUE: 13 N-m (1.3 kgf m, 9 Ibfft)
FINAL REDUCTION DISASSEMBLY
TRANSMISSION DISASSEMBLY
Remove the following:
-
Clutch/driven pulley (page 9-12)
-
Rear wheel (page 14-4)
-
Rear brake (page 14-5)
Remove the air cleaner housing bolts.
Remove the breather drain hose from the clamp.
AIR CLEANER HOUSING MOUNTING BOLTS
I BREATHER DRAIN HOSE
•
"""8k.
Remove the brake cable from the transmission case.
Remove the rear shock absorber lower mounting
bolt.
Remove the seven bolts and hose clamp.
Remove the transmission case and drain all oil from
the transmission case.
REAR SHOCK
ABSORBER LOWER
MOUNTING BOLT
CLAMP
10-5
