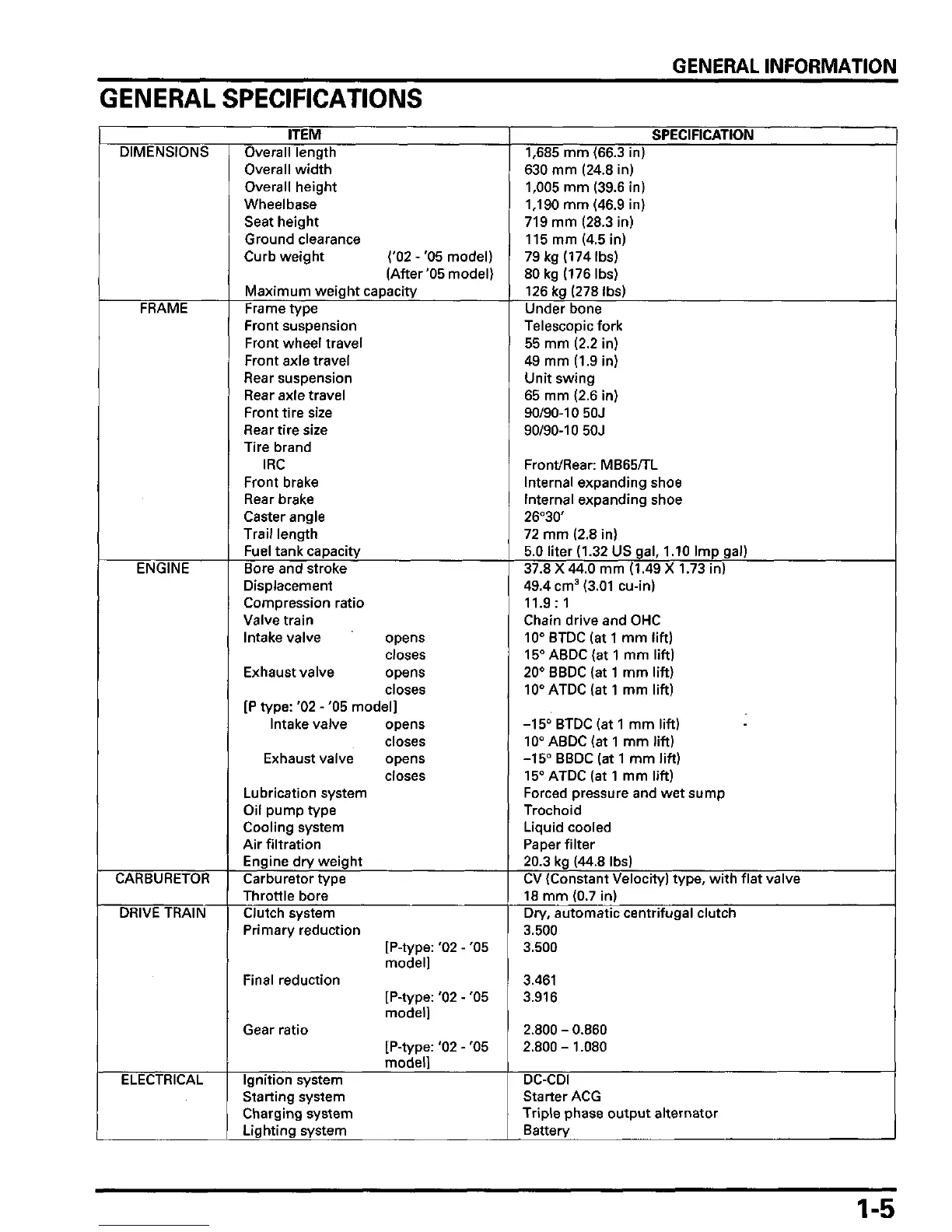

GENERAL INFORMATION
GENERAL SPECIFICATIONS
ITEM
DIMENSIONS
FRAME
ENGINE
CARBURETOR
DRIVE TRAIN
ELECTRICAL
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Curb weight ('02 - '05 model)
(After'05 model)
Maximum weight capacity
Frame type
Front suspension
Front wheel travel
Front axle travel
Rear suspension
Rear axle travel
Front tire size
Rear tire size
Tire brand
IRC
Front brake
Rear brake
Caster angle
Trail length
Fuel tank capacity
Bore and stroke
Displacement
Compression ratio
Valve train
Intake valve opens
closes
Exhaust valve opens
closes
[P type: '02 - '05 model]
Intake valve opens
closes
Exhaust valve opens
closes
Lubrication system
Oil pump type
Cooling system
Air filtration
Engine dry weight
Carburetor type
Throttle bore
Clutch system
Primary reduction
[P-type: '02 - '05
model]
Final reduction
[P-type: '02 - '05
model]
Gear ratio
[P-type: '02 - '05
model]
Ignition system
Starting system
Charging system
Lighting system
SPECIFICATION
1,685 mm (66.3 in)
630 mm (24.8 in)
1,005 mm (39.6 in)
1,190 mm (46.9 in)
719 mm (28.3 in)
115 mm (4.5 in)
79 kg (174 lbs)
80 kg (176 lbs)
126 kg (278 lbs)
Under bone
Telescopic fork
55 mm (2.2 in)
49 mm (1.9 in)
Unit swing
65 mm (2.6 in)
90/90-10 50J
90/90-10 50J
Front/Rear:
MB65/TL
Internal expanding shoe
Internal expanding shoe
26°30'
72 mm (2.8 in)
5.0 liter (1.32 US gal, 1.10 Imp gal)
37.8 X 44.0 mm (1.49 X 1.73 in)
49.4 cm
3
(3.01 cu-in)
11.9:1
Chain drive and OHC
10° BTDC (at 1 mm lift)
15°ABDC(at1 mm lift)
20°BBDC(at1 mm lift)
10°ATDC(at1 mm lift)
-15° BTDC (at 1 mm lift)
10°ABDC(at1 mm lift)
-15°BBDC(at1 mm lift)
15°ATDC(at1 mm lift)
Forced pressure and wet sump
Trochoid
Liquid cooled
Paper filter
20.3 kg (44.8 lbs)
CV (Constant Velocity) type, with flat valve
18 mm (0.7 in)
Dry, automatic centrifugal clutch
3.500
3.500
3.461
3.916
2.800
-
0.860
2.800-1.080
DC-CDI
Starter ACG
Triple phase output alternator
Battery
1-5
