FINAL REDUCTION
10-6

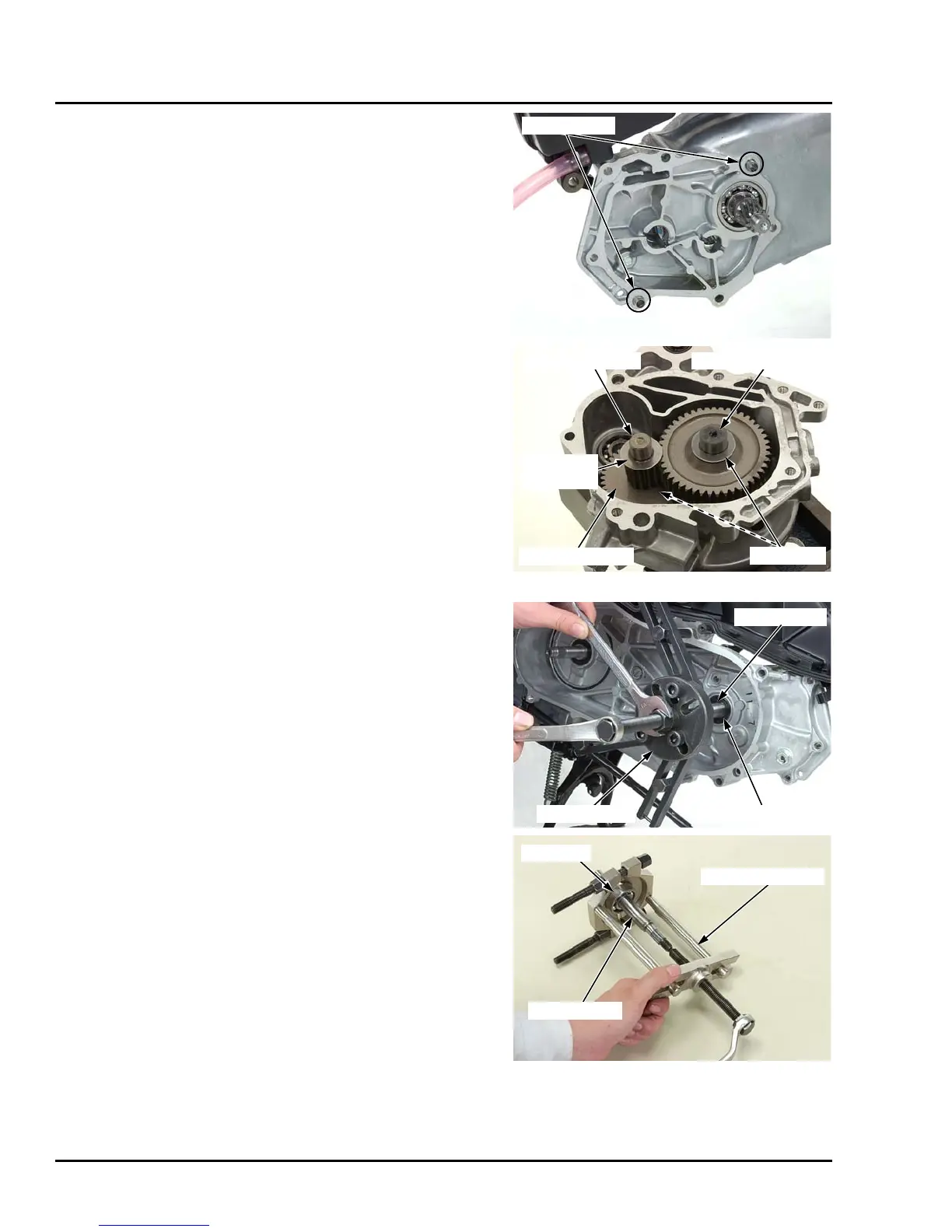

Remove the dowel pins.
Clean any sealant from the transmission case mat-
ing surface.
Remove the thrust washers and countershaft.
Remove the final gear shaft, counter gear and side
washer.
DRIVESHAFT REMOVAL
Remove the driveshaft using the special tools.
Remove the driveshaft oil seal and bearing.
If the bearing is left on the driveshaft, remove it with
the special tool.
DOWEL PINS
COUNTERSHAFT FINAL GEAR SHAFT
COUNTER GEAR
WASHERS
WASHER
2002 only
TOOL:
Case puller 07SMC-0010001
CASE PULLER OIL SEAL/BEARING
DRIVESHAFT
TOOL:
Universal bearing puller 07931-4630000 or
equivalent
commercially
available in U.S.A.
DRIVESHAFT
BEARING
BEARING PULLER

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
