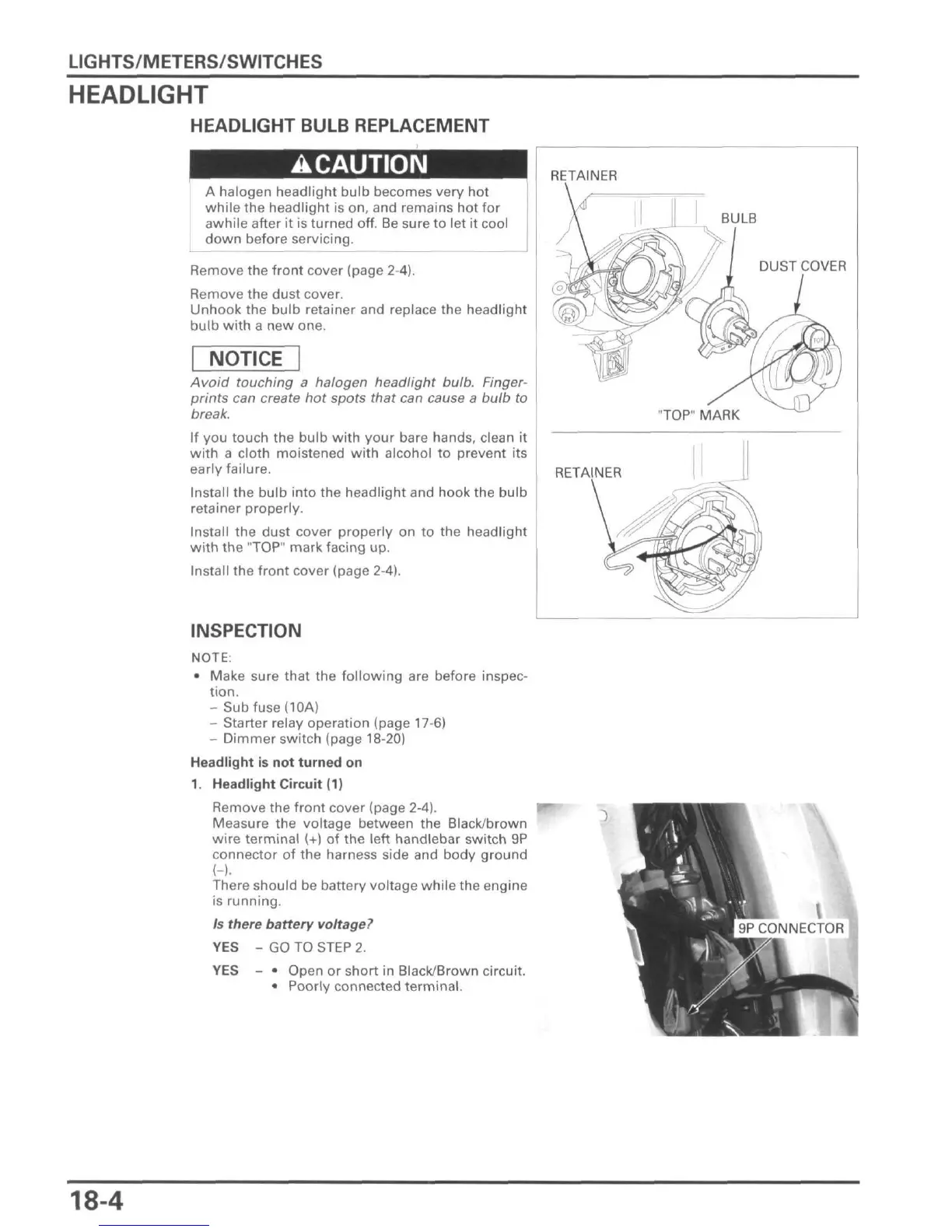

LIGHTS/METERS/SWITCHES
HEADLIGHT
HEADLIGHT BULB REPLACEMENT
ACAUTION
A halogen headlight bulb becomes very hot
while the headlight is on, and remains hot for
awhile after it is turned off. Be sure to let it cool
down before servicing.
Remove the front cover (page 2-4).
Remove the dust cover.
Unhook the bulb retainer and replace the headlight
bulb with a new one.
NOTICE
Avoid touching a halogen headlight bulb.
Finger-
prints can create hot spots that can cause a bulb to
break.
If you touch the bulb with your bare hands, clean it
with a cloth moistened with alcohol to prevent its
early failure.
Install the bulb into the headlight and hook the bulb
retainer properly.
Install the dust cover properly on to the headlight
with the "TOP" mark facing up.
Install the front cover (page 2-4).
RETAINER
BULB
DUST COVER
INSPECTION
NOTE:
•
Make sure that the following are before inspec-
tion.
-
Sub fuse (10A)
-
Starter relay operation (page 17-6)
-
Dimmer switch (page 18-20)
Headlight is not turned on
1.
Headlight Circuit (1)
Remove the front cover (page 2-4). HP*"
Measure the voltage between the Black/brown *P^
wire terminal (+) of the left handlebar switch 9P
connector of the harness side and body ground
(-).
There should be battery voltage while the engine
is running.
Is there battery
voltage?
YES - GO TO STEP 2.
YES - • Open or short in Black/Brown circuit.
•
Poorly connected terminal.
\
18-4
