Honda Metropolitan CHF50 User Manual

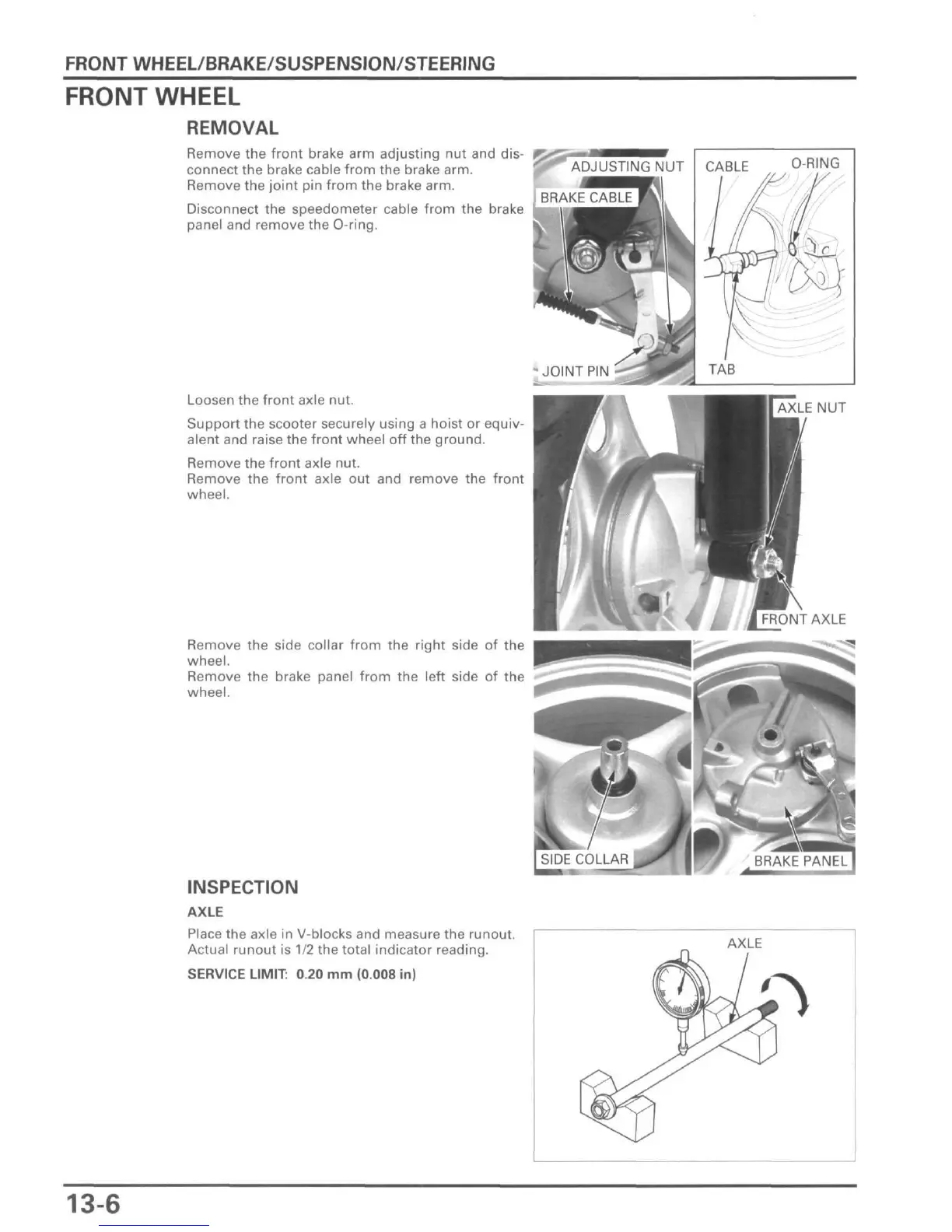

FRONT WHEEL/BRAKE/SUSPENSION/STEERING
FRONT WHEEL
REMOVAL
Remove the front brake arm adjusting nut and dis-
connect the brake cable from the brake arm.
Remove the joint pin from the brake arm.
Disconnect the speedometer cable from the brake
panel and remove the O-ring.
Loosen the front axle nut.
Support the scooter securely using a hoist or equiv-
alent and raise the front wheel off the ground.
Remove the front axle nut.
Remove the front axle out and remove the front
wheel.
Remove the side collar from the right side of the
wheel.
Remove the brake panel from the left side of the
wheel.
INSPECTION
AXLE
Place the axle in V-blocks and measure the runout.
Actual runout is 1/2 the total indicator reading.
SERVICE LIMIT: 0.20 mm (0.008 in)
13-6

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
