Honda Metropolitan CHF50 User Manual

FUEL SYSTEM

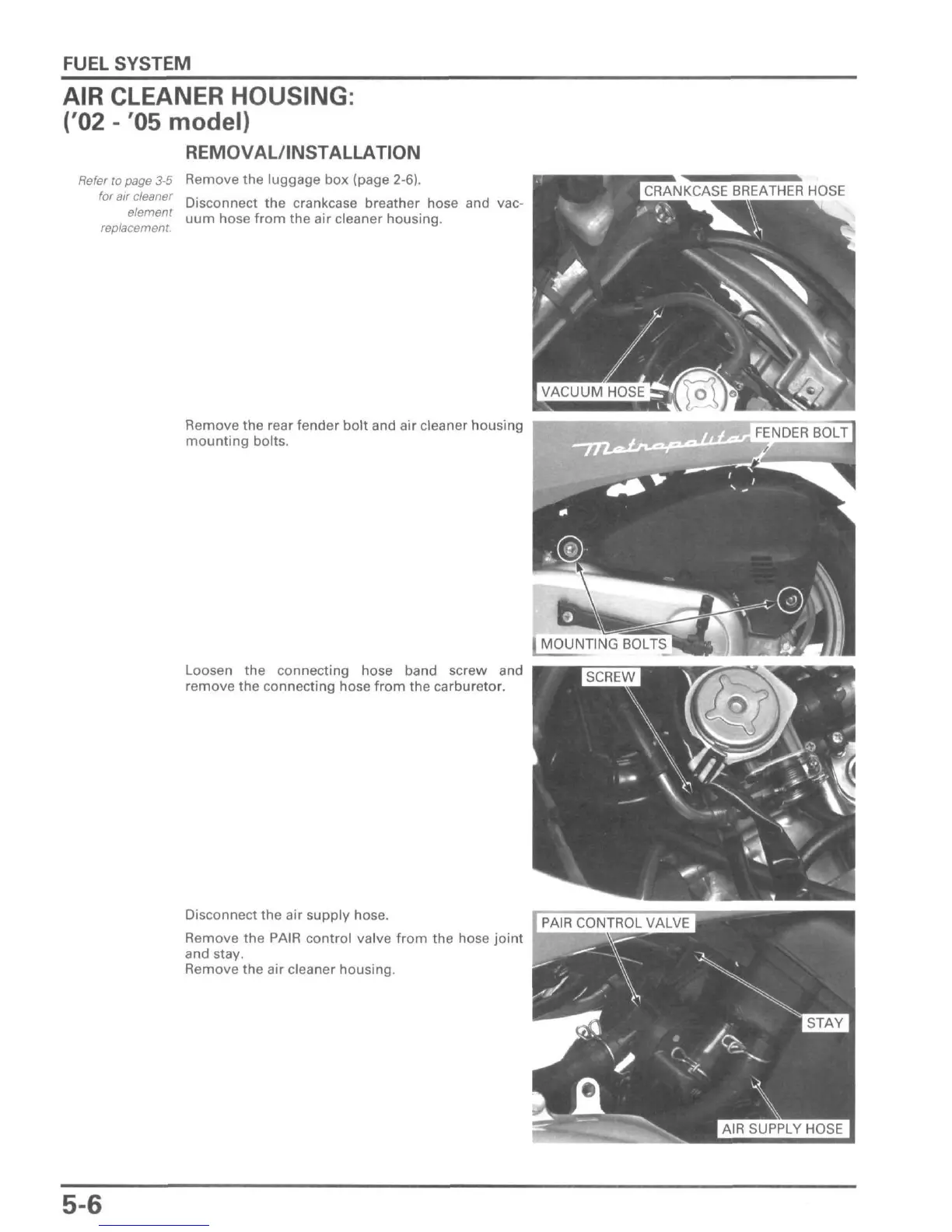

AIR CLEANER HOUSING:
('02 - '05 model)
REMOVAL/INSTALLATION
Refer to page 3-5 Remove the luggage box (page 2-6).
for air cleaner
element
replacement.
Disconnect the crankcase breather hose and vac-
uum hose from the air cleaner housing.
Remove the rear fender bolt and air cleaner housing
mounting bolts.
Loosen the connecting hose band screw and
remove the connecting hose from the carburetor.
Disconnect the air supply hose.
Remove the PAIR control valve from the hose joint
and stay.
Remove the air cleaner housing.
CRANKCASE BREATHER HOSE
PAIR CONTROL VALVE
5-6

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
