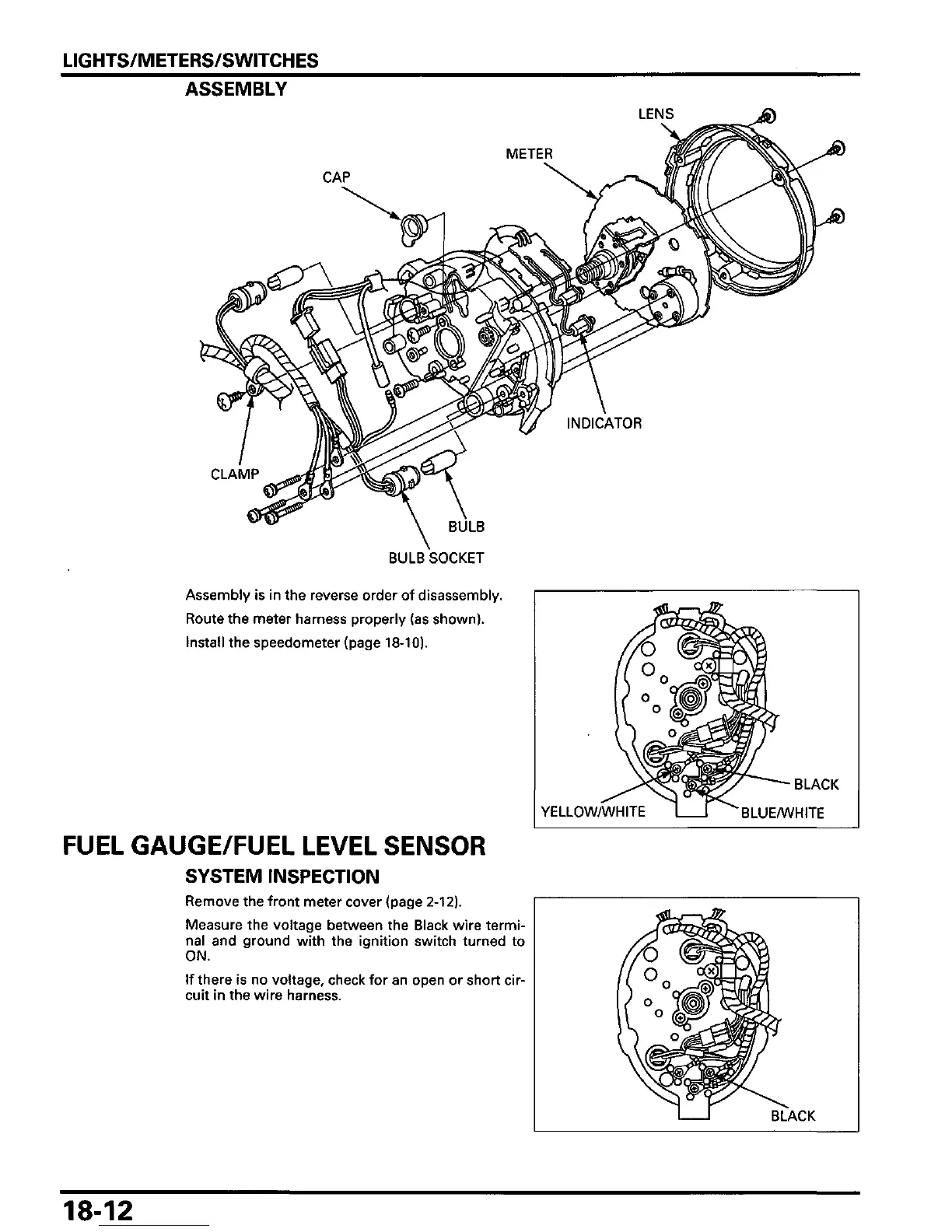

LIGHTS/METERS/SWITCHES
ASSEMBLY
LENS
CAP
INDICATOR
BULB
BULB SOCKET
Assembly is in the reverse order of disassembly.
Route the meter harness properly (as shown).
Install the speedometer (page 18-10).
YELLOW/WHITE
BLACK
BLUE/WHITE
FUEL GAUGE/FUEL LEVEL SENSOR
SYSTEM INSPECTION
Remove the front meter cover (page 2-12).
Measure the voltage between the Black wire termi-
nal and ground with the ignition switch turned to
ON.
If there is no voltage, check for an open or short cir-
cuit in the wire harness.
18-12

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
