Honda Metropolitan CHF50 User Manual

LIGHTS/METERS/SWITCHES

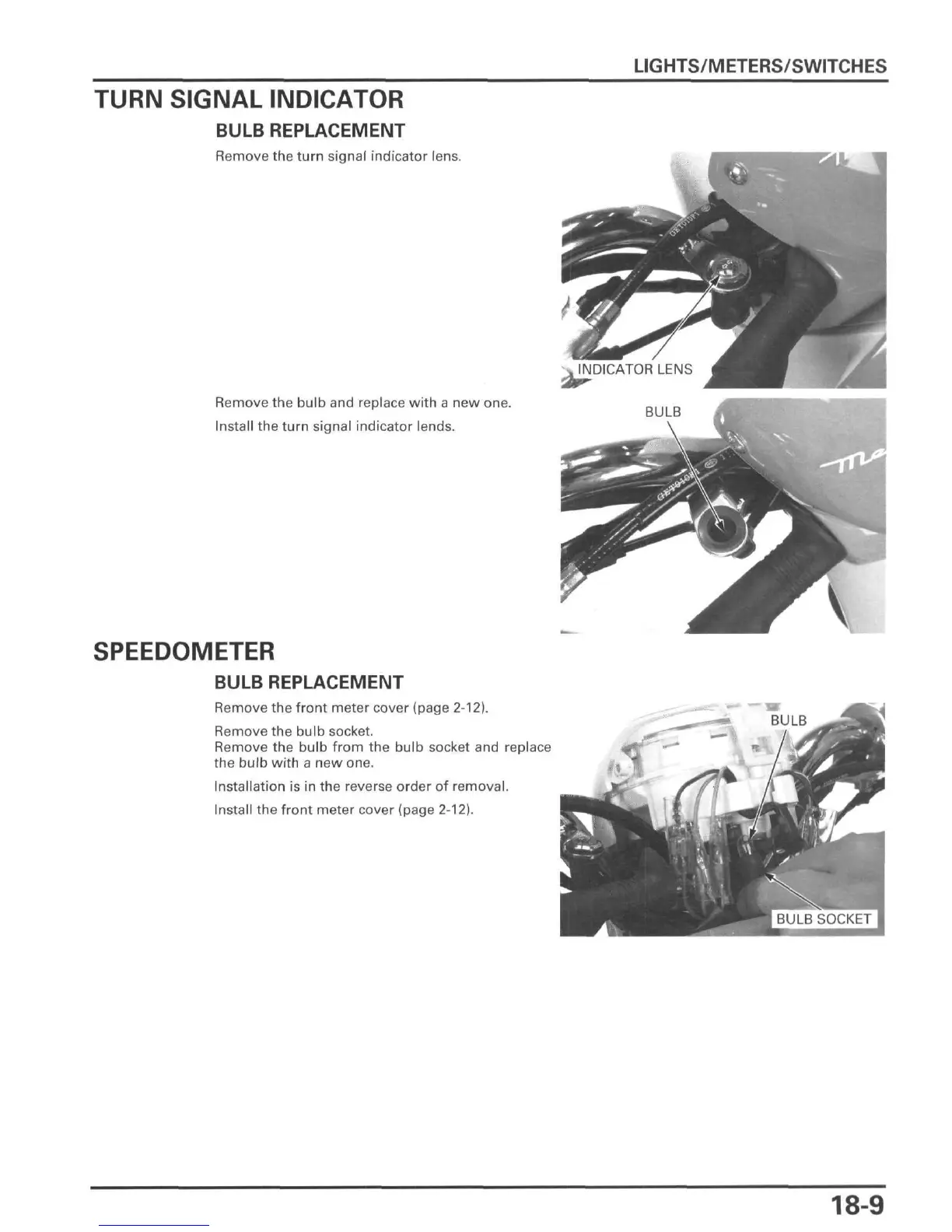

TURN SIGNAL INDICATOR
BULB REPLACEMENT
Remove the turn signal indicator lens.
Remove the bulb and replace with a new one.
Install the turn signal indicator lends.
SPEEDOMETER
BULB REPLACEMENT
Remove the front meter cover (page 2-12).
Remove the bulb socket.
Remove the bulb from the bulb socket and replace
the bulb with a new one.
Installation is in the reverse order of removal.
Install the front meter cover (page 2-12).
18-9

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
