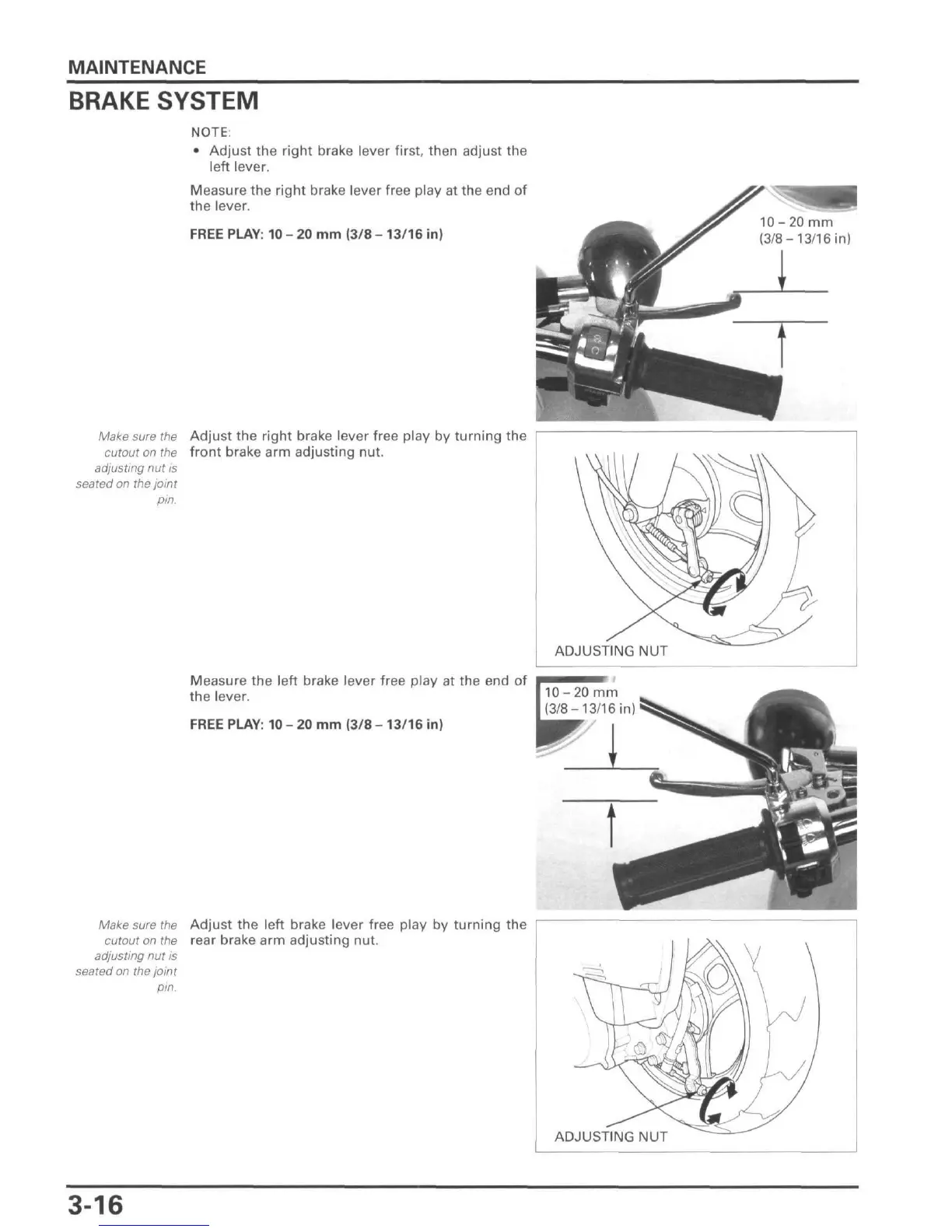

MAINTENANCE
BRAKE SYSTEM
NOTE:
• Adjust the right brake lever first, then adjust the
left lever.
Measure the right brake lever free play at the end of
the lever.
FREE PLAY: 10 - 20 mm (3/8 - 13/16 in)
10-20 mm
(3/8-13/16 in)
Make sure the Adjust the right brake lever free play by turning the
cutout on the front brake arm adjusting nut.
adjusting nut is
seated on the joint
pin.
Measure the left brake lever free play at the end of
the lever. 110-20 mm
"(3/8-13/16 in)
FREE PLAY: 10 - 20 mm (3/8 - 13/16 in
Make sure the Adjust the left brake lever free play by turning the
cutout on the rear brake arm adjusting nut.
adjusting nut is
seated on the joint
pin.
3-16

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
