Honda Metropolitan CHF50 User Manual

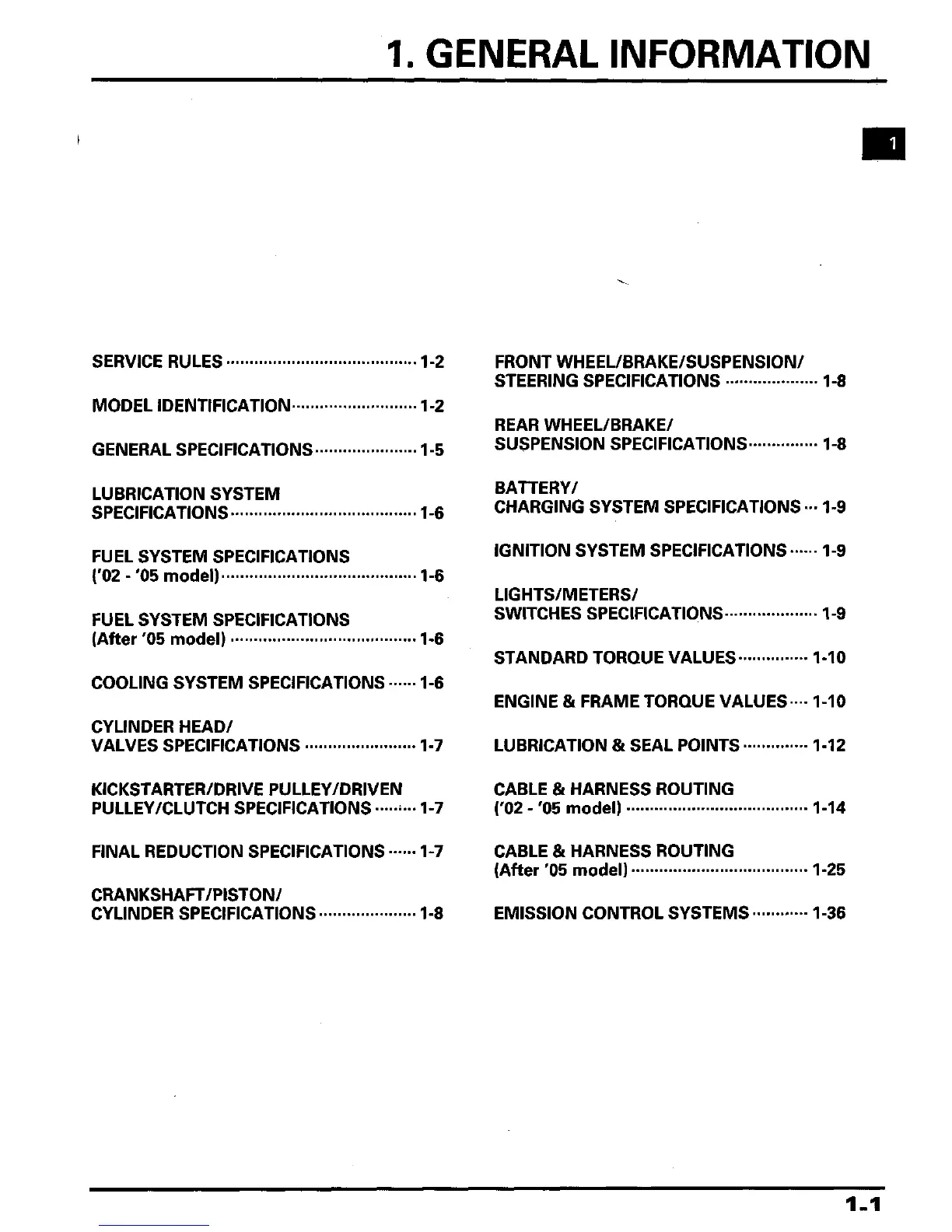

1. GENERAL INFORMATION
SERVICE RULES 1-2
MODEL IDENTIFICATION 1-2
GENERAL SPECIFICATIONS 1-5
LUBRICATION SYSTEM
SPECIFICATIONS 1-6
FUEL SYSTEM SPECIFICATIONS
{'02 - '05 model) 1-6
FUEL SYSTEM SPECIFICATIONS
(After '05 model) 1-6
COOLING SYSTEM SPECIFICATIONS 1-6
CYLINDER HEAD/
VALVES SPECIFICATIONS 1-7
KICKSTARTER/DRIVE PULLEY/DRIVEN
PULLEY/CLUTCH SPECIFICATIONS ••• 1-7
FINAL REDUCTION SPECIFICATIONS 1-7
CRANKSHAFT/PISTON/
CYLINDER SPECIFICATIONS 1-8
FRONT WHEEL/BRAKE/SUSPENSION/
STEERING SPECIFICATIONS 1-8
REAR WHEEL/BRAKE/
SUSPENSION SPECIFICATIONS 1-8
BATTERY/
CHARGING SYSTEM SPECIFICATIONS- 1-9
IGNITION SYSTEM SPECIFICATIONS 1-9
LIGHTS/METERS/
SWITCHES SPECIFICATIONS 1-9
STANDARD TORQUE VALUES 1-10
ENGINE & FRAME TORQUE VALUES - 1-10
LUBRICATION & SEAL POINTS 1-12
CABLE & HARNESS ROUTING
('02 - '05 model) 1-14
CABLE & HARNESS ROUTING
(After '05 model) 1-25
EMISSION CONTROL SYSTEMS 1-36
1-1

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
