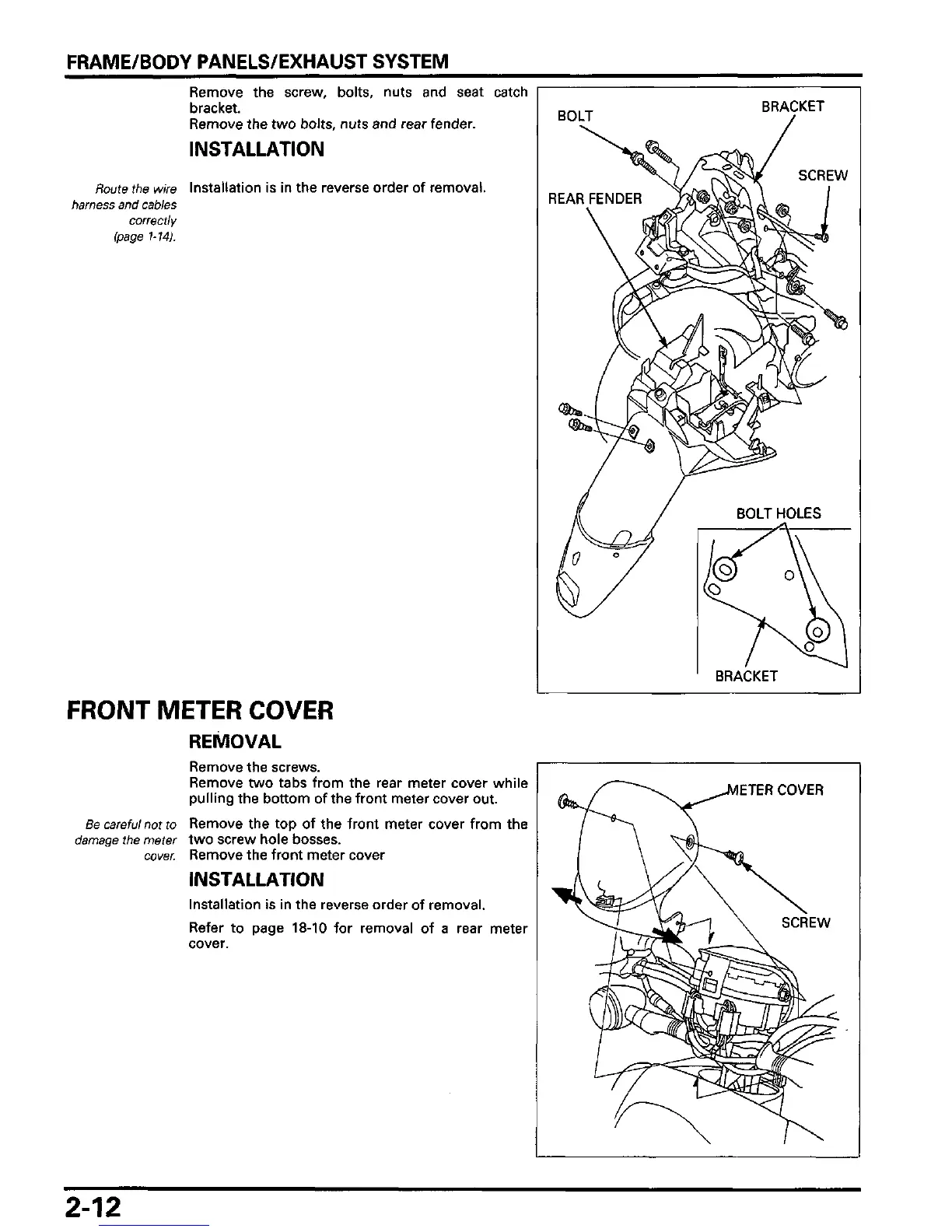

FRAME/BODY PANELS/EXHAUST SYSTEM
Remove the screw, bolts, nuts and seat catch
bracket.
Remove the two bolts, nuts and rear fender.
INSTALLATION
Route the wire Installation is in the reverse order of removal.
harness and cables
correctly
(page 1-14).
FRONT METER COVER
REMOVAL
Remove the screws.
Remove two tabs from the rear meter cover while
pulling the bottom of the front meter cover out.
Be careful not to Remove the top of the front meter cover from the
damage the meter two screw hole bosses.
cover. Remove the front meter cover
INSTALLATION
Installation is in the reverse order of removal.
Refer to page 18-10 for removal of a rear meter
cover.
ETER COVER
2-12

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
