Honda Metropolitan CHF50 User Manual

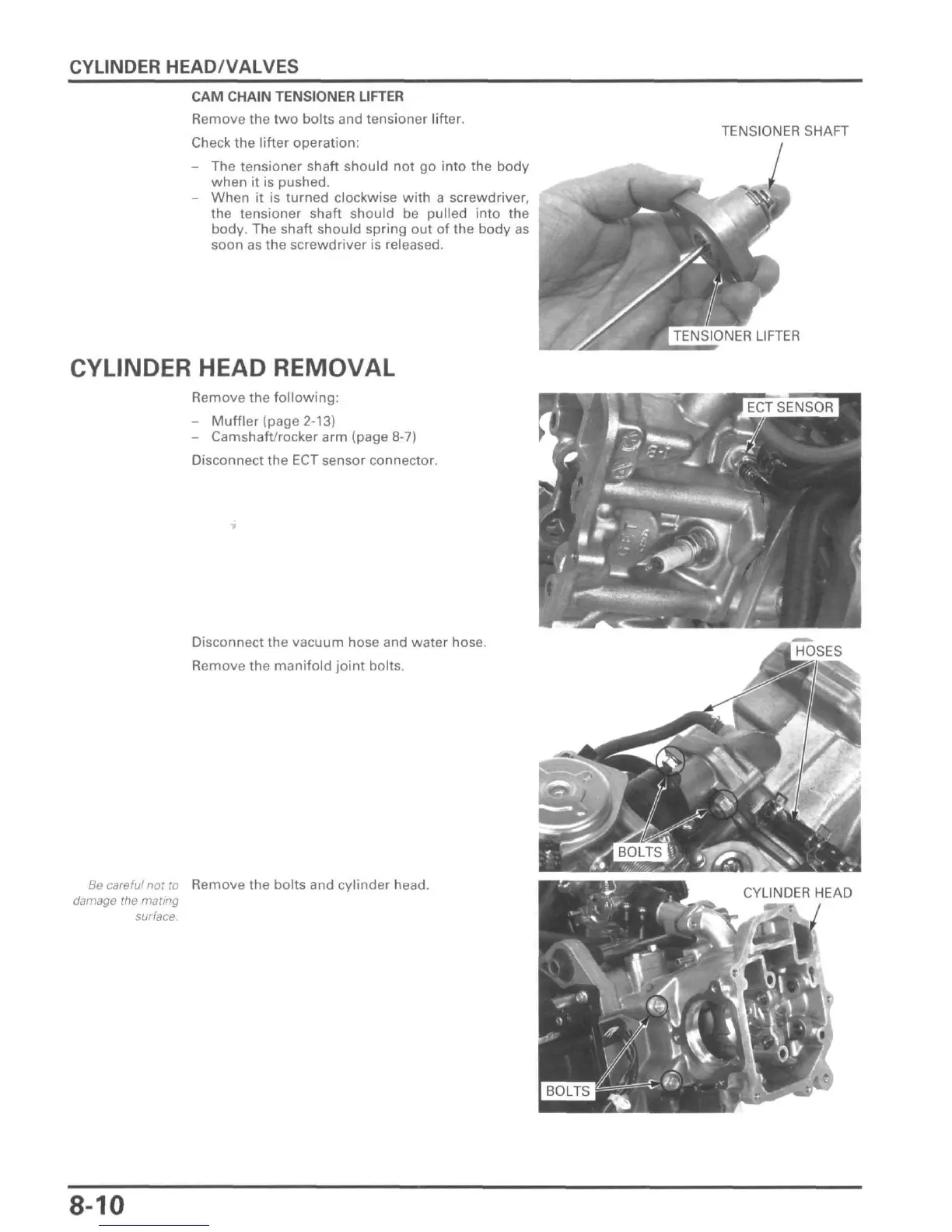

CYLINDER HEAD/VALVES
CAM CHAIN TENSIONER LIFTER
Remove the two bolts and tensioner lifter.
Check the lifter operation:
- The tensioner shaft should not go into the body
when it is pushed.
- When it is turned clockwise with a screwdriver,
the tensioner shaft should be pulled into the
body. The shaft should spring out of the body as
soon as the screwdriver is released.
TENSIONER SHAFT
TENSIONER LIFTER
CYLINDER HEAD REMOVAL
Remove the following:
- Muffler (page 2-13)
- Camshaft/rocker arm (page 8-7)
Disconnect the ECT sensor connector.
Disconnect the vacuum hose and water hose.
Remove the manifold joint bolts.
Be careful not to Remove the bolts and cylinder head.
damage the mating
surface.
8-10

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
