KICKSTARTER/DRIVE PULLEY/DRIVEN PULLEY/CLUTCH

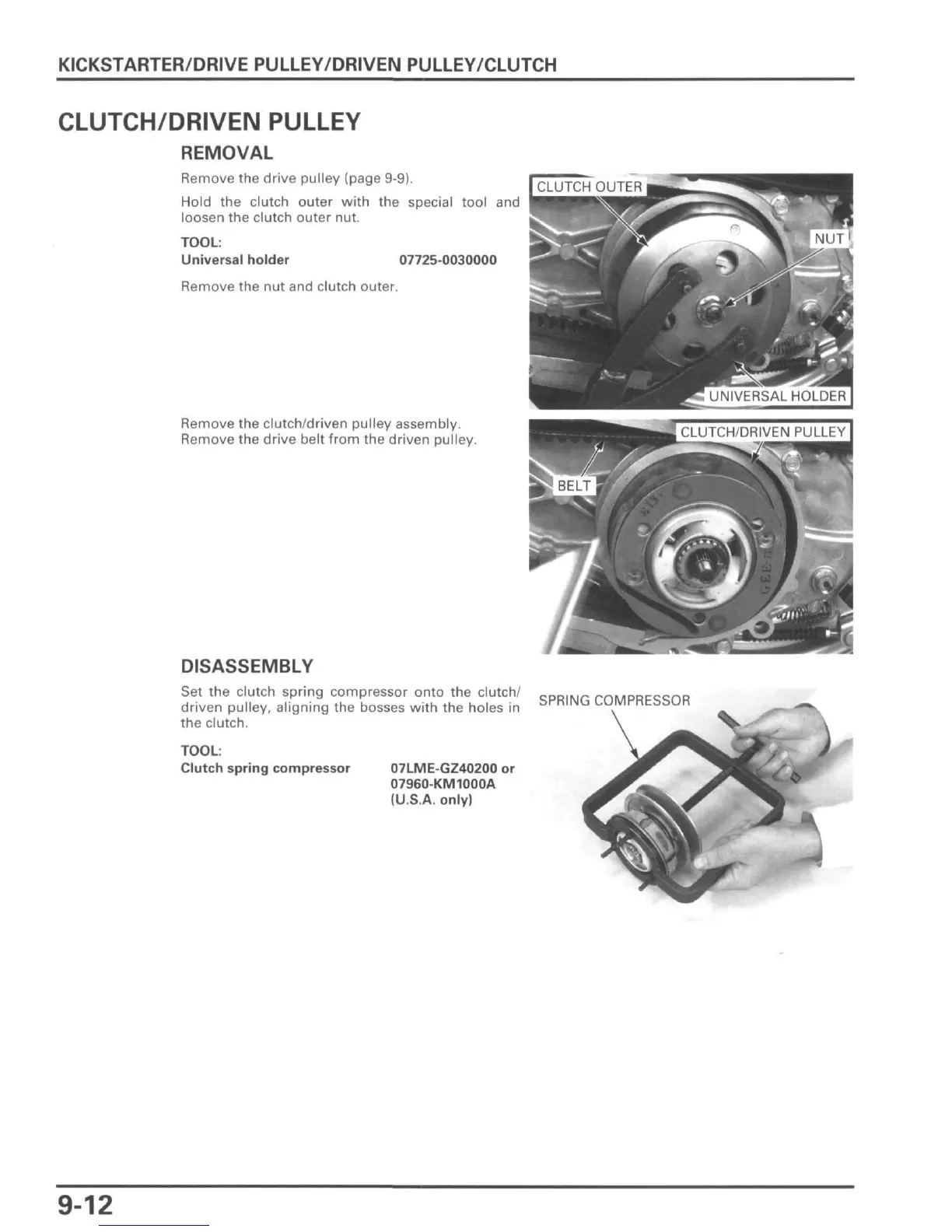

CLUTCH/DRIVEN PULLEY
REMOVAL
Remove the drive pulley (page 9-9).
Hold the clutch outer with the special tool and
loosen the clutch outer nut.
TOOL:
Universal holder 07725-0030000
Remove the nut and clutch outer.
Remove the clutch/driven pulley assembly.
Remove the drive belt from the driven pulley.
CLUTCH/DRIVEN PULLEY
DISASSEMBLY
Set the clutch spring compressor onto the clutch/
driven pulley, aligning the bosses with the holes in
the clutch.
SPRING COMPRESSOR
TOOL:
Clutch spring compressor
07LME-GZ40200 or
07960-KM1000A
(U.S.A. only)
9-12

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
