Honda Metropolitan CHF50 User Manual

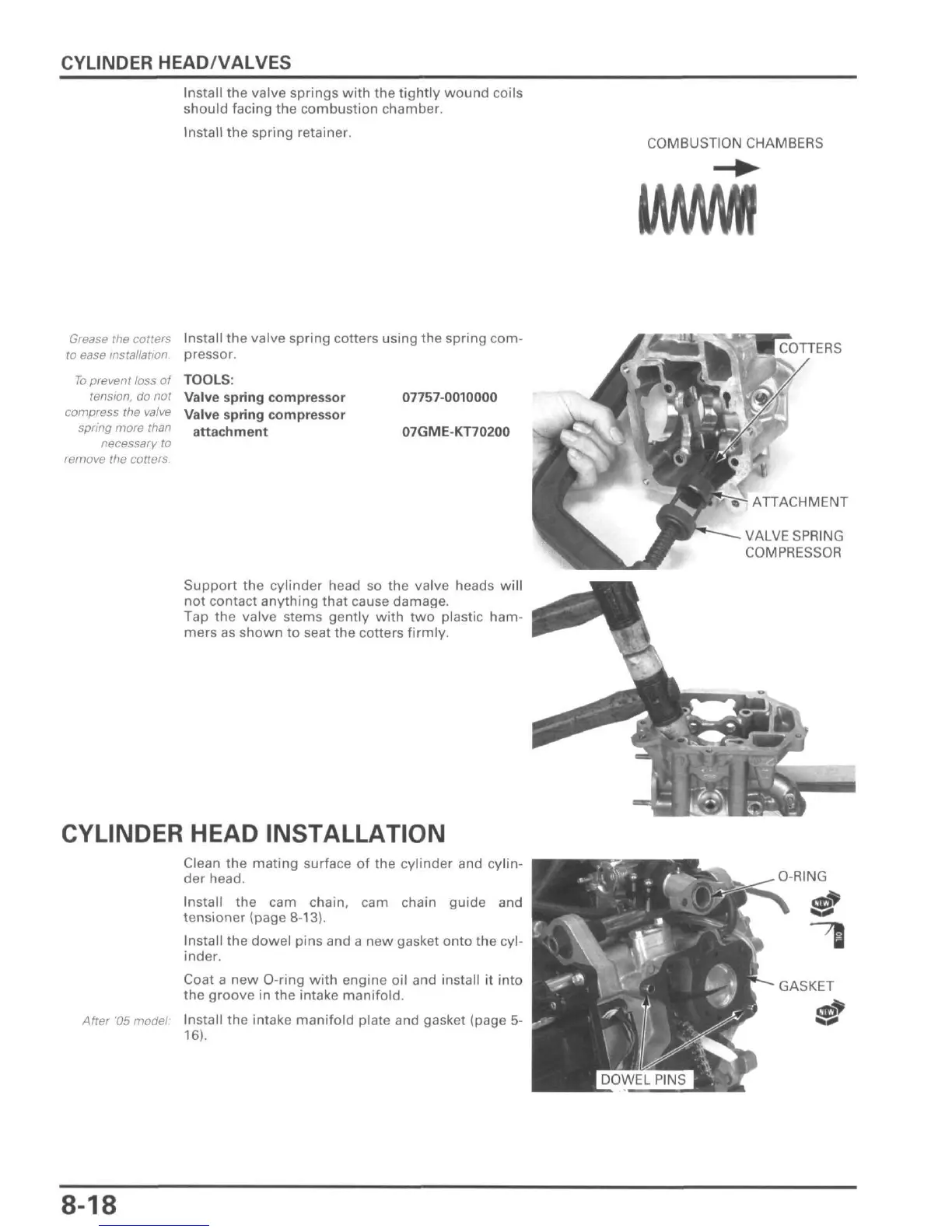

CYLINDER HEAD/VALVES
Install the valve springs with the tightly wound coils
should facing the combustion chamber.
Install the spring retainer.
COMBUSTION CHAMBERS
Grease the cotters
to ease installation.
To prevent loss of
tension, do not
compress the valve
spring more than
necessary to
remove the cotters.
Install the valve spring cotters using the spring com-
pressor.
COTTERS
TOOLS:
Valve spring compressor
Valve spring compressor
attachment
07757-0010000
07GME-KT70200
Support the cylinder head so the valve heads will
not contact anything that cause damage.
Tap the valve stems gently with two plastic ham-
mers as shown to seat the cotters firmly.
VALVE SPRING
COMPRESSOR
CYLINDER HEAD INSTALLATION
Clean the mating surface of the cylinder and cylin-
der head.
Install the cam chain, cam chain guide and
tensioner (page 8-13).
Install the dowel pins and a new gasket onto the cyl-
inder.
Coat a new O-ring with engine oil and install it into
the groove in the intake manifold.
After '05 model: Install the intake manifold plate and gasket (page 5-
16).
O-RING
8-18

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
