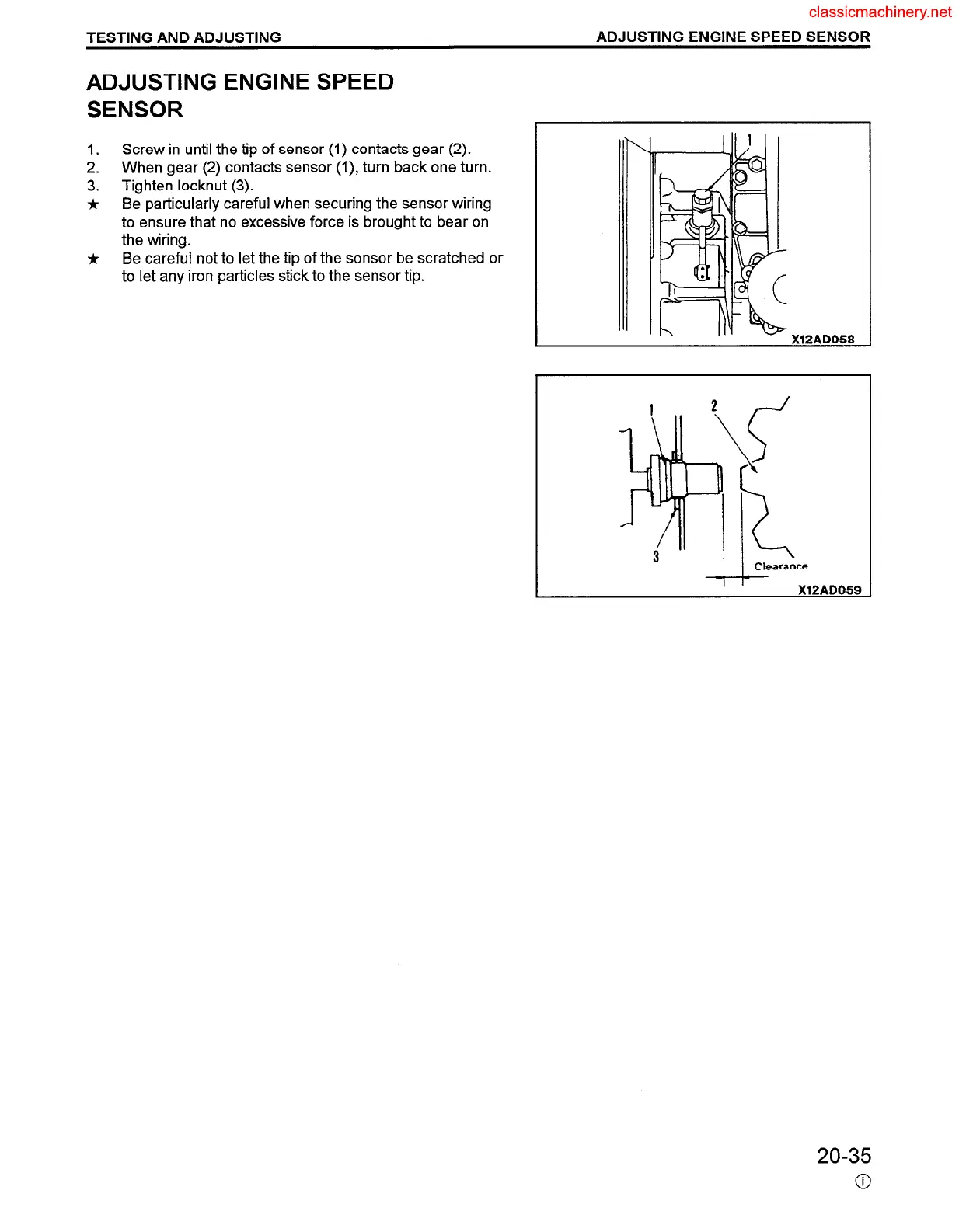

TESTING AND ADJUSTING
ADJUSTING ENGINE SPEED SENSOR
ADJUSTING ENGINE SPEED
SENSOR
1. Screw in until the tip of sensor (1) contacts gear (2).
2.
When gear (2) contacts sensor (I), turn back one turn.
3. Tighten locknut (3).
* Be particularly careful when securing the sensor wiring
to ensure that no excessive force is brought to bear on
the wiring.
*
Be careful not to let the tip of the sonsor be scratched or
to let any iron particles stick to the sensor tip.
XlZAD058
1
2
\q
*;,_
3
I-L
Clearance
20-35
a
