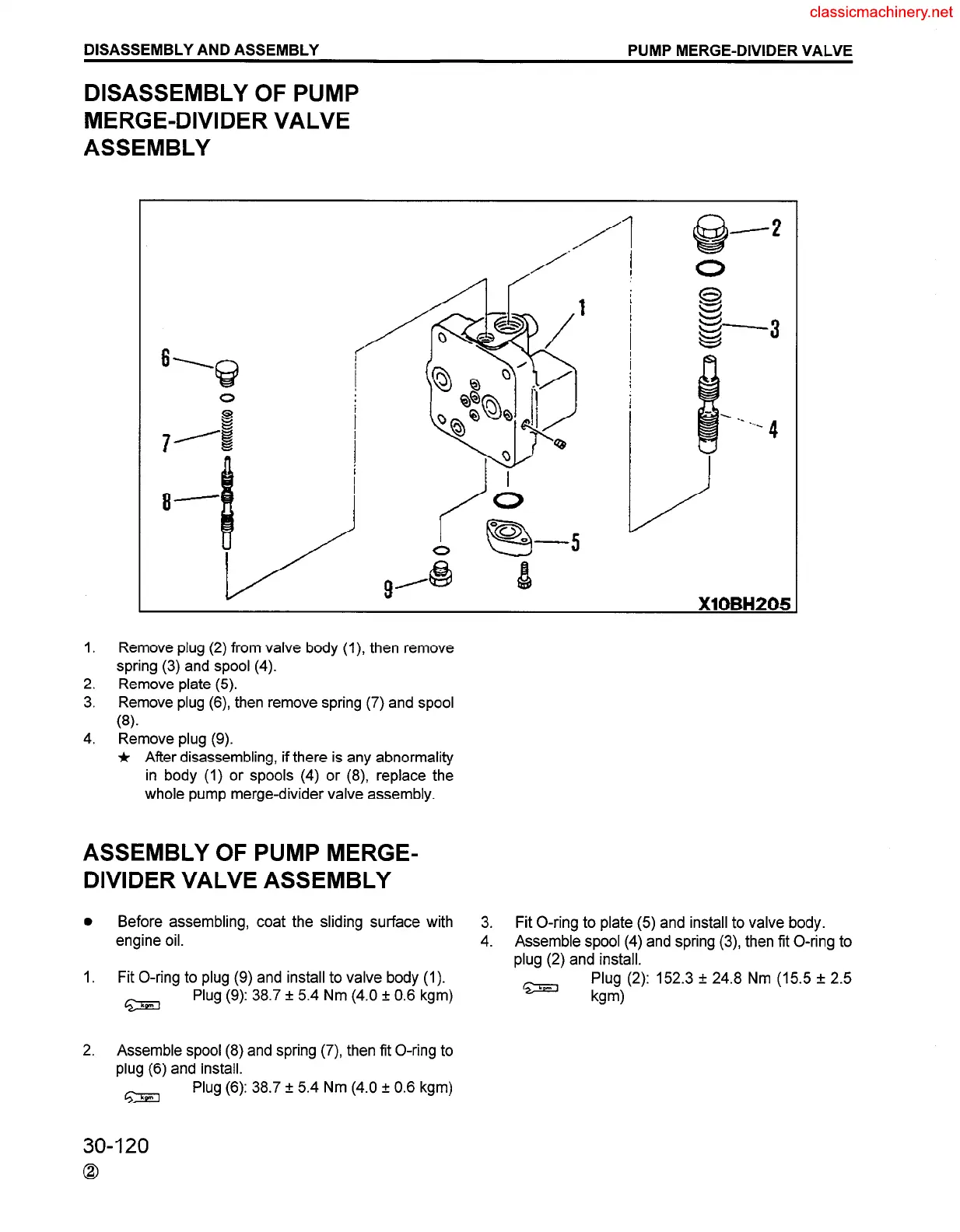

DISASSEMBLY AND ASSEMBLY
PUMP MERGE-DIVIDER VALVE
DISASSEMBLY OF PUMP
MERGE-DIVIDER VALVE
ASSEMBLY
1.
2.
3.
4.
Remove plug (2) from valve body (I), then remove
spring (3) and spool (4).
Remove plate (5).
Remove plug (6), then remove spring (7) and spool
(8).
Remove plug (9).
j, After disassembling, if there is any abnormality
in body (1) or spools (4) or (8) replace the
whole pump merge-divider valve assembly.
ASSEMBLY OF PUMP MERGE-
DIVIDER VALVE ASSEMBLY
0
Before assembling, coat the sliding surface with
3.
Fit O-ring to plate (5) and install to valve body.
engine oil. 4. Assemble spool (4) and spring (3) then fit O-ring to
plug (2) and install.
1.
Fit O-ring to plug (9) and install to valve body (1).
m
Plug (2): 152.3 f 24.8 Nm (15.5 f 2.5
Plug (9): 38.7 f 5.4 Nm (4.0 f 0.6 kgm)
kgm)
2.
Assemble spool (8) and spring (7) then fit O-ring to
plug (6) and install.
Plug (6): 38.7 f 5.4 Nm (4.0 + 0.6 kgm)
