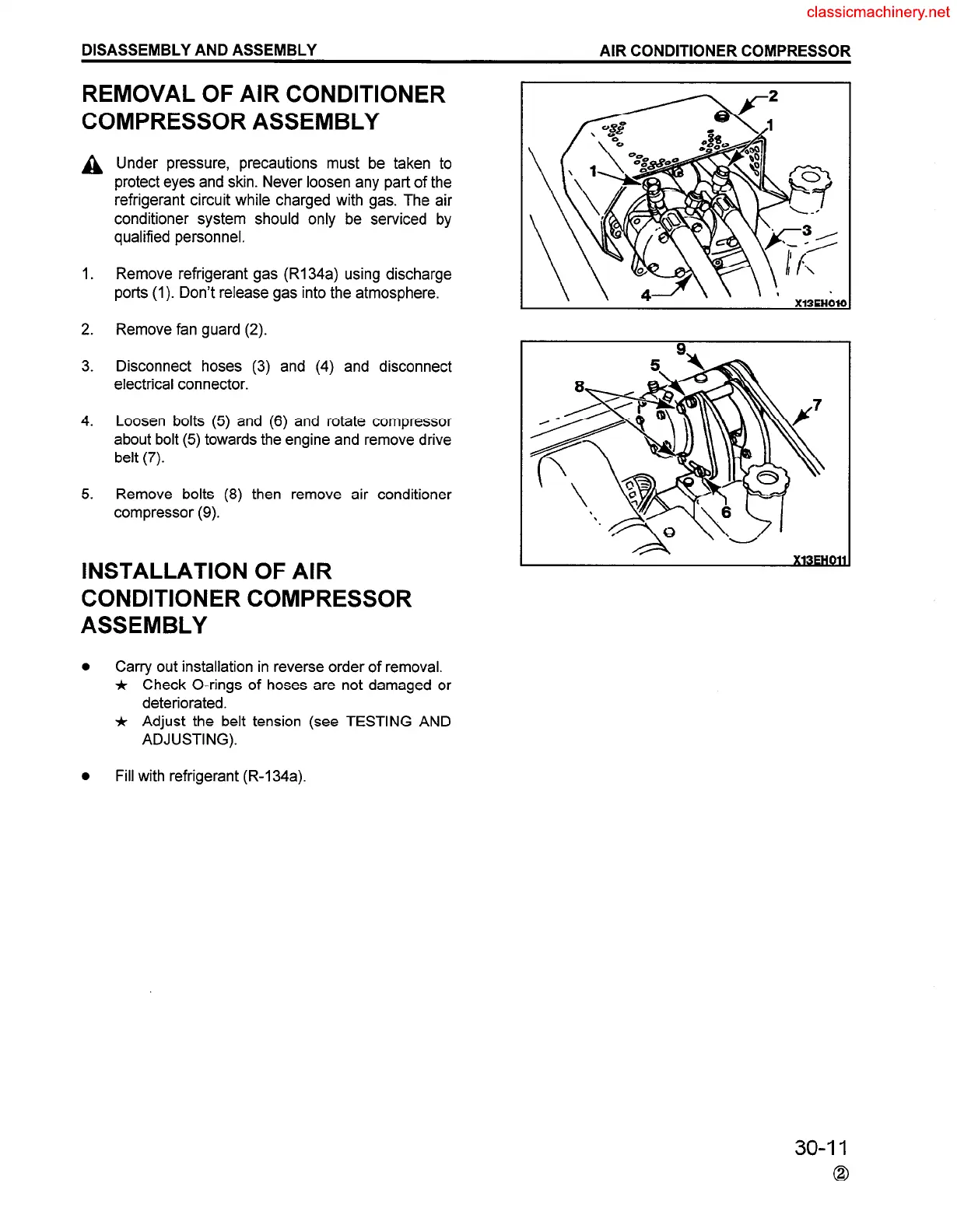

DISASSEMBLY AND ASSEMBLY AIR CONDITIONER COMPRESSOR
REMOVAL OF AIR CONDITIONER
COMPRESSOR ASSEMBLY
A
1.
2.
3.
4.
5.
Under pressure, precautions must be taken to
protect eyes and skin. Never loosen any part of the
refrigerant circuit while charged with gas. The air
conditioner system should only be serviced by
qualified personnel.
Remove refrigerant gas (R134a) using discharge
ports (1). Don’t release gas into the atmosphere.
Remove fan guard (2).
Disconnect hoses (3) and (4) and disconnect
electrical connector.
Loosen bolts (5) and (6) and rotate compressor
about bolt (5) towards the engine and remove drive
belt (7).
Remove bolts (8) then remove air conditioner
compressor (9).
INSTALLATION OF AIR
I
CONDITIONER COMPRESSOR
ASSEMBLY
l
Carry out installation in reverse order of removal.
* Check O-rings of hoses are not damaged or
deteriorated.
* Adjust the belt tension (see TESTING AND
ADJUSTING).
l
Fill with refrigerant (R-134a).
30-11
