DISASSEMBLY AND ASSEMBLY
RADIATOR l HYDRAULIC OIL COOLER

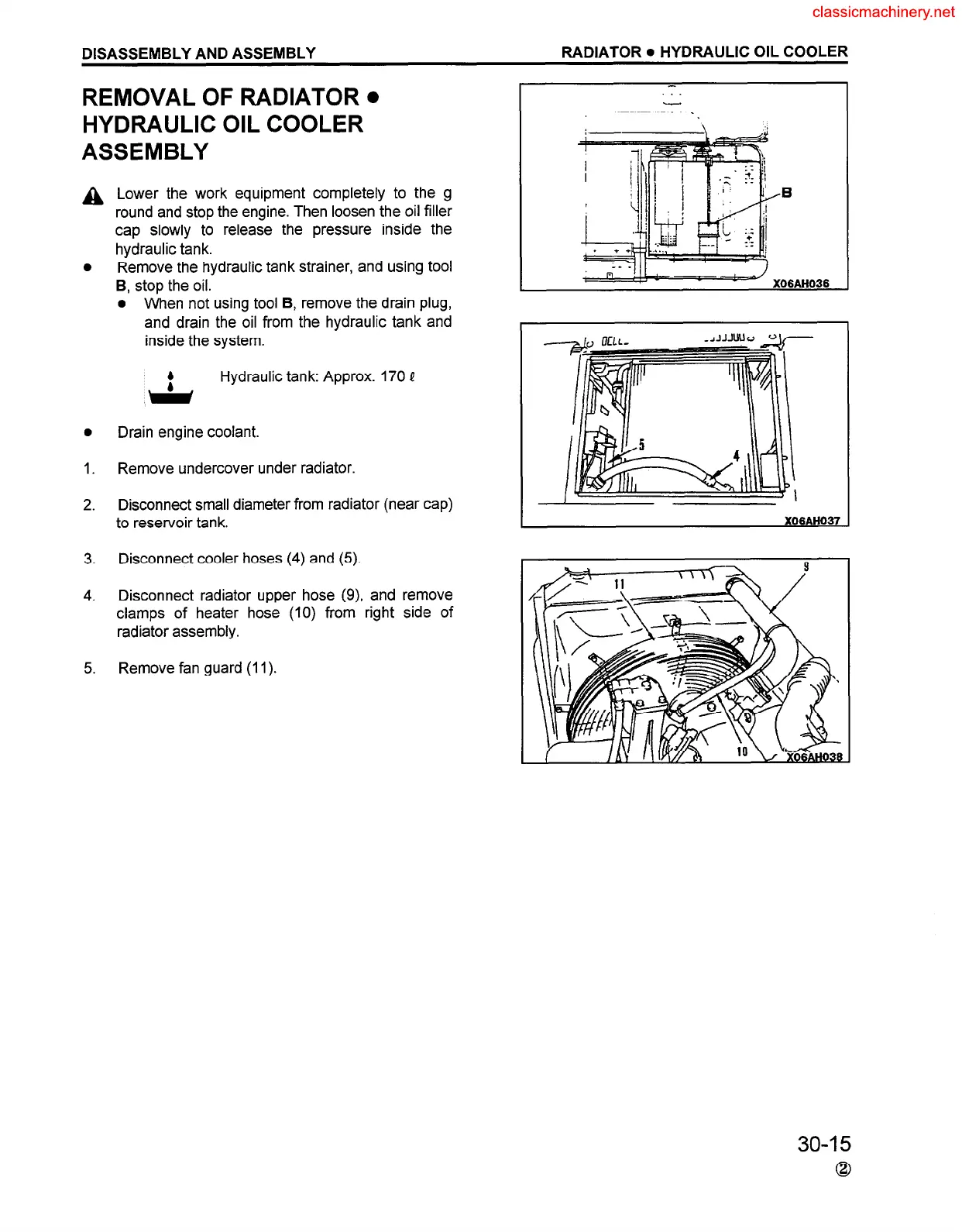

REMOVAL OF RADIATOR.
HYDRAULIC OIL COOLER
ASSEMBLY
A
0
0
1.
2.
3.
4.
5.
Lower the work equipment completely to the g
round and stop the engine. Then loosen the oil filler
cap slowly to release the pressure inside the
hydraulic tank.
Remove the hydraulic tank strainer, and using tool
B, stop the oil.
l When not using tool B, remove the drain plug,
and drain the oil from the hydraulic tank and
inside the system.
Hydraulic tank: Approx. 170 P
Drain engine coolant.
Remove undercover under radiator.
Disconnect small diameter from radiator (near cap)
to reservoir tank.
Disconnect cooler hoses (4) and (5).
Disconnect radiator upper hose (9) and remove
clamps of heater hose (10) from right side of
radiator assembly.
Remove fan guard (11).
I
30-15
