DISASSEMBLY AND ASSEMBLY
TRAVEL MOTOR

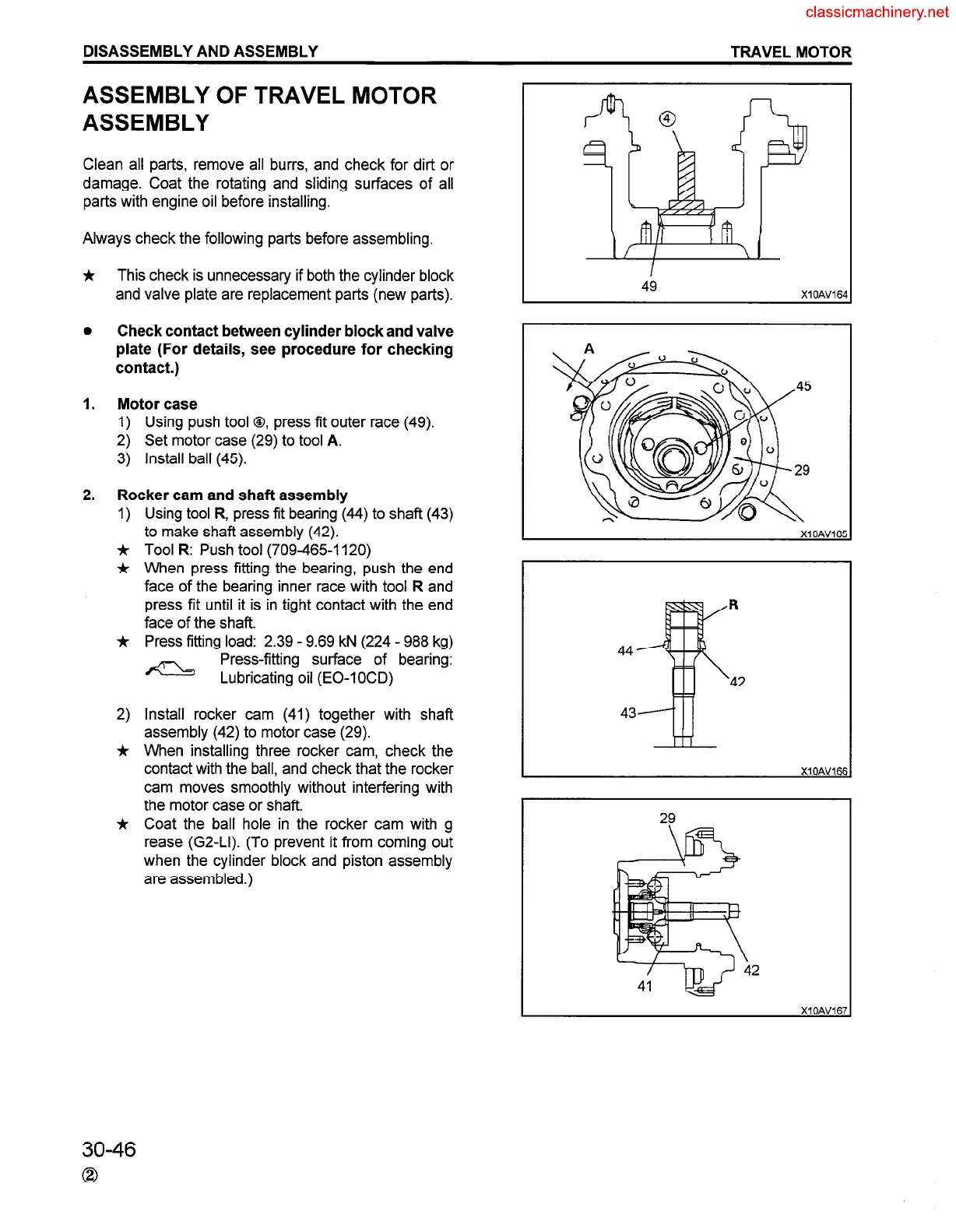

ASSEMBLY OF TRAVEL MOTOR
ASSEMBLY
Clean all parts, remove all burrs, and check for dirt or
damage. Coat the rotating and sliding surfaces of all
parts with engine oil before installing.
Always check the following parts before assembling.
*
0
1.
2.
This check is unnecessary if both the cylinder block
and valve plate are replacement parts (new parts).
Check contact between cylinder block and valve
plate (For details, see procedure for checking
contact.)
Motor case
1) Using push tool a,, press fit outer race (49).
2) Set motor case (29) to tool A.
3) Install ball (45).
Rocker cam and shaft assembly
1)
*
*
*
2)
*
*
Using tool R, press fit bearing (44) to shaft (43)
to make shaft assembly (42).
Tool R: Push tool (709-465-I 120)
When press fitting the bearing, push the end
face of the bearing inner race with tool R and
press fit until it is in tight contact with the end
face of the shaft.
Press fitting load: 2.39 - 9.69 kN (224 - 988 kg)
Q
Press-fitting surface of bearing:
Lubricating oil (EO-IOCD)
Install rocker cam (41) together with shaft
assembly (42) to motor case (29).
When installing three rocker cam, check the
contact with the ball, and check that the rocker
cam moves smoothly without interfering with
the motor case or shaft.
Coat the ball hole in the rocker cam with g
rease (G2-LI). (To prevent it from coming out
when the cylinder block and piston assembly
are assembled.)
49
XlOAV164
44
42
43
30-46
0
