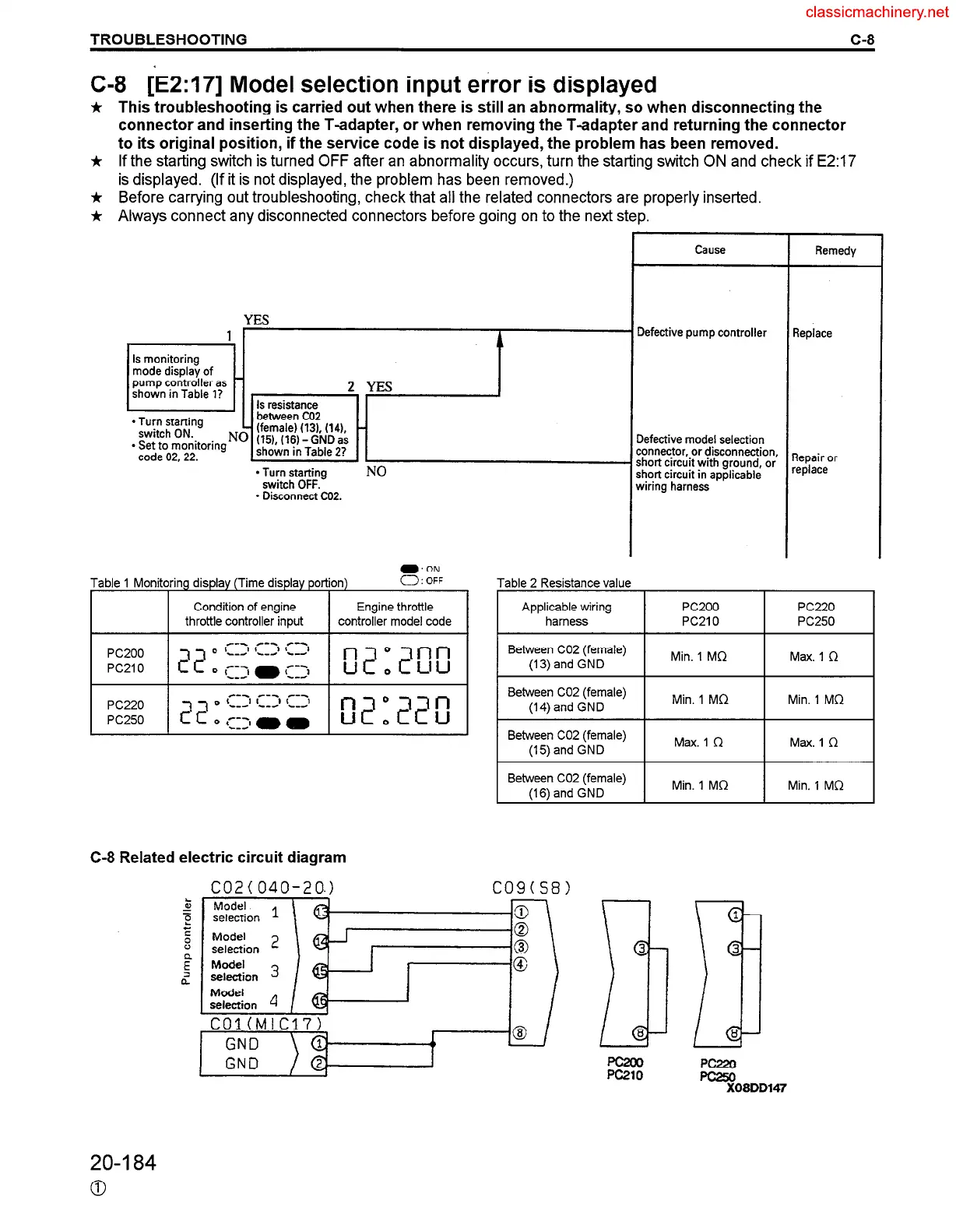

TROUBLESHOOTING C-8
C-8 [E2:17] Model selection input error is displayed
* This troubleshooting is carried out when there is still an abnormality, so when disconnecting the
connector and inserting the T-adapter, or when removing the T-adapter and returning the connector
to its original position, if the service code is not displayed, the problem has been removed.
* If the starting switch is turned OFF after an abnormality occurs, turn the starting switch ON and check if E2:17
is displayed. (If it is not displayed, the problem has been removed.)
* Before carrying out troubleshooting, check that all the related connectors are properly inserted
* Always connect any disconnected connectors before going on to the next step.
YES
1
Is monitoring
mode display of
pump controller as -
shown in Table l?
2 YES
_ Is resistance
* Turn starting
between CO2
switch ON.
- (female) U3), (14). -
* Set to monitoring
NO (15). (16) -GND as
code 02,22.
shown in Table 2?
A
* Turn starting
NO
switch OFF.
* Disconnect C02.
Table 1 Monitoring display (Time display portion)
1 I
.:ON
O:OFF
I
Condition of engine
I
Engine throttle
throttle controller input controller model code
I
C-8
Related electric circuit diagram
Cause
Defective pump controller
Defective model selection
connector, or disconnection,
short circuit with ground, or
short circuit in applicable
wiring harness
Remedy
Replace
Repair or
replace
Table 2 Resistance value
Applicable wiring
harness
Between CO2 (female)
(13) and GND
Between CO2 (female)
(14) and GND
Between CO2 (female)
(15) and GND
Between CO2 (female)
(16) and GND
PC200
PC220
PC210 PC250
Min. 1 MQ Max. 1 0
Min. 1 MQ Min. 1 MD
Max. 1 D Max. 1 0
Min. 1 MD
Min. 1 MD
CO2( 040-20.)
CO9(S8)
z
:
L
E
8
E”
2
PC220
X08DD147
20-184
0
To Next Page
