TESTING AND ADJUSTING

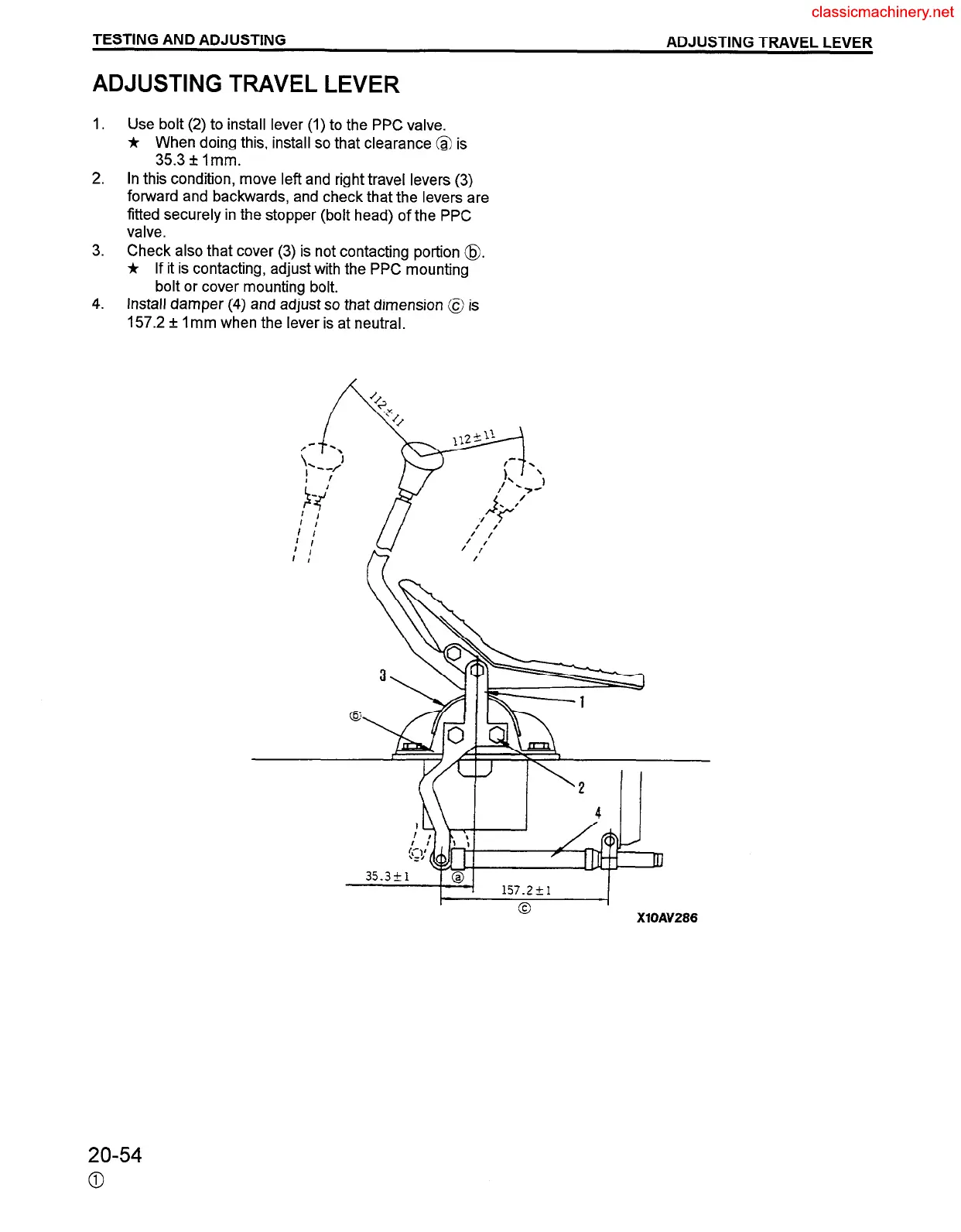

ADJUSTING TRAVEL LEVER
ADJUSTING TRAVEL LEVER
1.
2.
3.
4.
Use bolt (2) to install lever (1) to the PPC valve.
* When doing this, install so that clearance @ is
35.3 f 1 mm.
In this condition, move left and right travel levers (3)
forward and backwards, and check that the levers are
fitted securely in the stopper (bolt head) of the PPC
valve.
Check also that cover (3) is not contacting portion @.
* If it is contacting, adjust with the PPC mounting
bolt or cover mounting bolt.
Install damper (4) and adjust so that dimension @ is
157.2 f 1 mm when the lever is at neutral.
I
- I
XlOAV286
20-54
0
