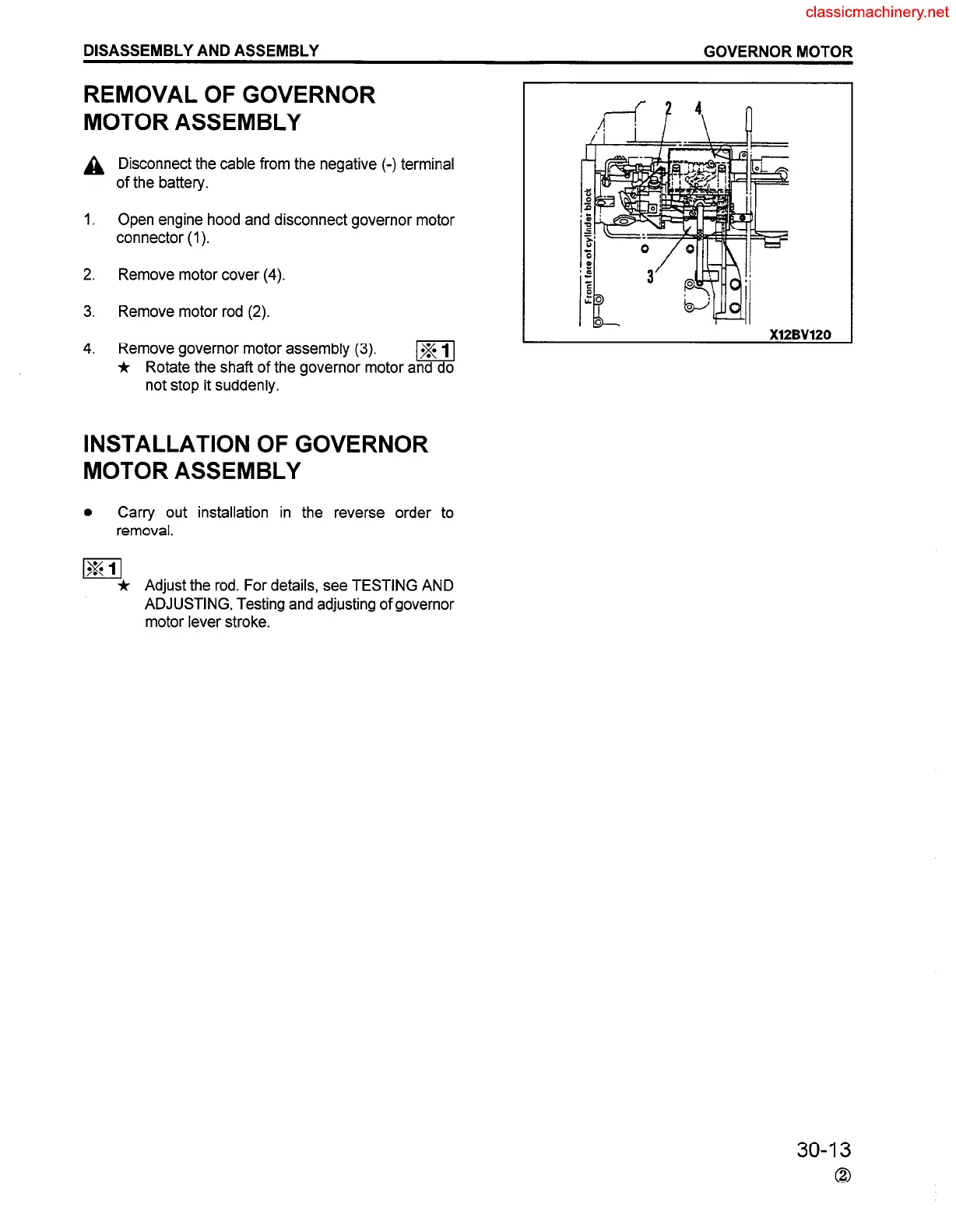

DISASSEMBLY AND ASSEMBLY
GOVERNOR MOTOR
REMOVAL OF GOVERNOR
MOTOR ASSEMBLY
A
1.
2.
3.
4.
Disconnect the cable from the negative (-) terminal
of the battery.
Open engine hood and disconnect governor motor
connector (1).
Remove motor cover (4).
Remove motor rod (2).
Remove governor motor assembly (3).
Sr
m
Rotate the shaft of the governor motor and do
not stop it suddenly.
INSTALLATION OF GOVERNOR
MOTOR ASSEMBLY
0
Carry out installation in the reverse order to
removal.
/-%q
* Adjust the rod. For details, see TESTING AND
ADJUSTING, Testing and adjusting of governor
motor lever stroke.
X12BV120
30-I 3
0
