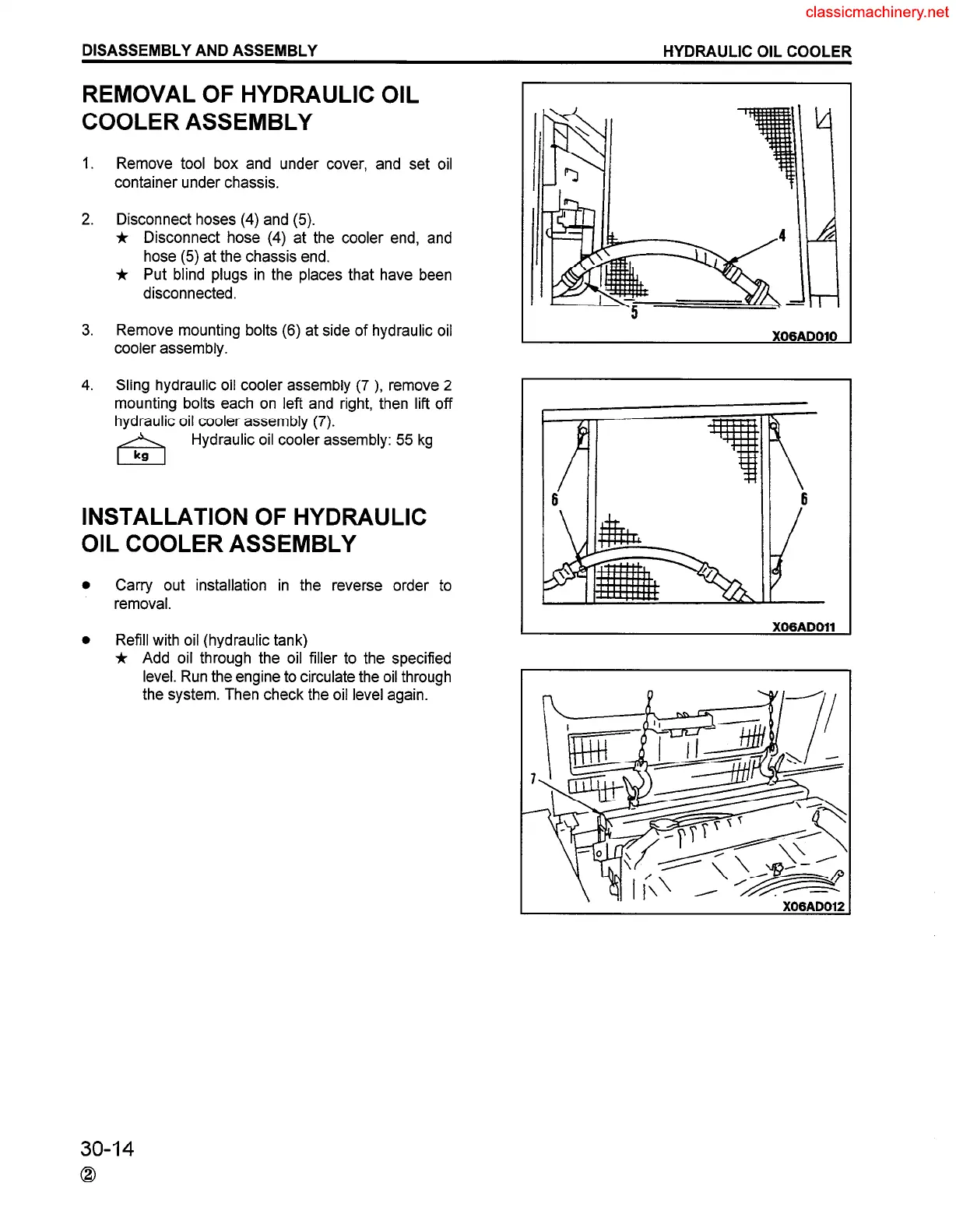

DISASSEMBLY AND ASSEMBLY
HYDRAULIC OIL COOLER
REMOVAL OF HYDRAULIC OIL
COOLER ASSEMBLY
1. Remove tool box and under cover, and set oil
container under chassis.
2.
Disconnect hoses (4) and (5).
* Disconnect hose (4) at the cooler end, and
hose (5) at the chassis end.
* Put blind plugs in the places that have been
disconnected.
3. Remove mounting bolts (6) at side of hydraulic oil
cooler assembly.
4.
Sling hydraulic oil cooler assembly (7 ), remove 2
mounting bolts each on left and right, then lift off
hydraulic oil cooler assembly (7).
6
Hydraulic oil cooler assembly: 55 kg
kg
INSTALLATION OF HYDRAULIC
OIL COOLER ASSEMBLY
l
Carry out installation in the reverse order to
removal.
0
Refill with oil (hydraulic tank)
* Add oil through the oil filler to the specified
level. Run the engine to circulate the oil through
the system. Then check the oil level again.
6
30-14
