DISASSEMBLY AND ASSEMBLY
IDLER

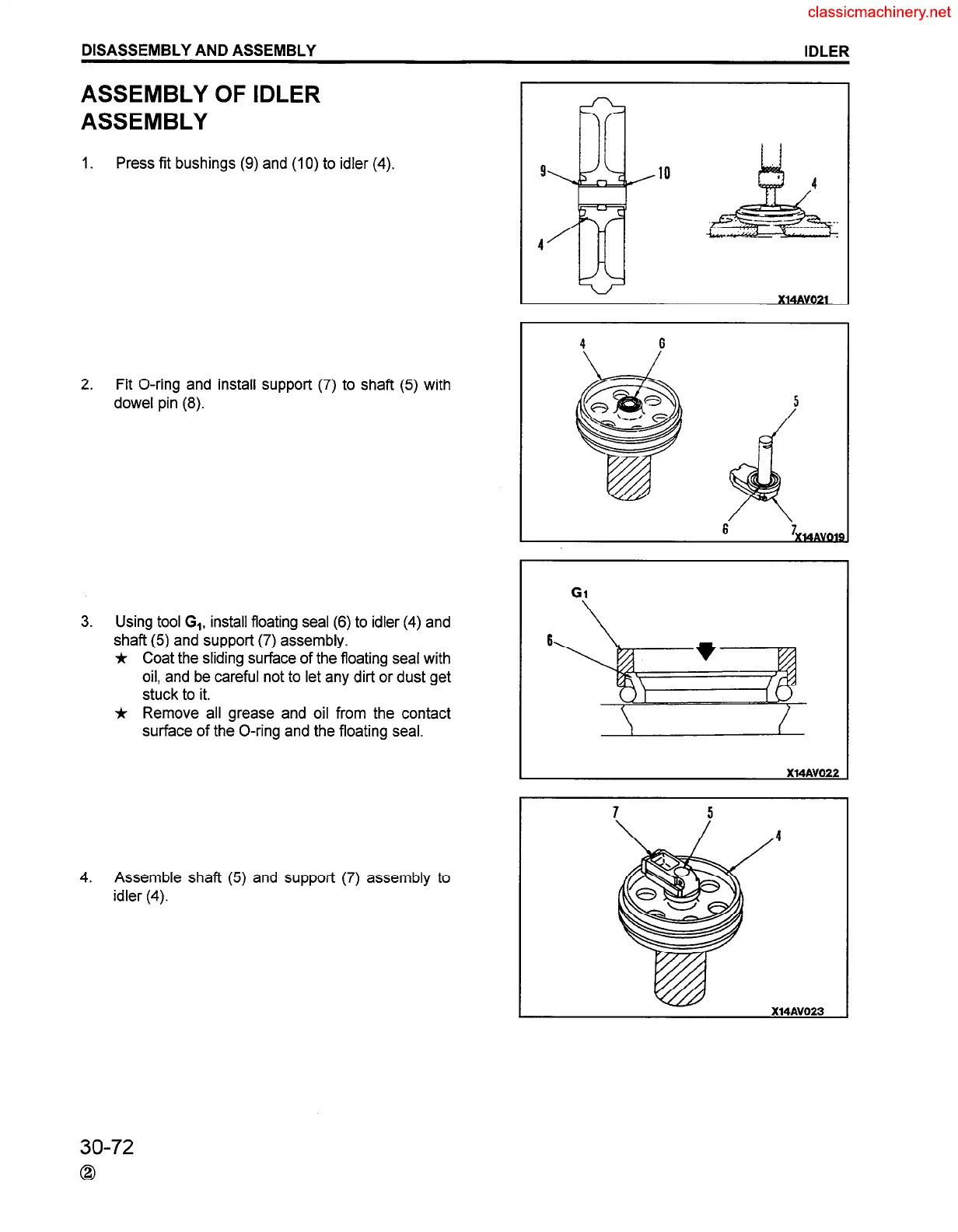

ASSEMBLY OF IDLER
ASSEMBLY
1. Press fit bushings (9) and (10) to idler (4).
2. Fit O-ring and install support (7) to shaft (5) with
dowel pin (8).
3. Using tool G,, install floating seal (6) to idler (4) and
shaft (5) and support (7) assembly.
* Coat the sliding surface of the floating seal with
oil, and be careful not to let any dirt or dust get
stuck to it.
* Remove all grease and oil from the contact
surface of the O-ring and the floating seal.
4.
Assemble shaft (5) and support (7) assembly to
idler (4).
.10
X14AVO21
6
X14AVO23
30-72
0
