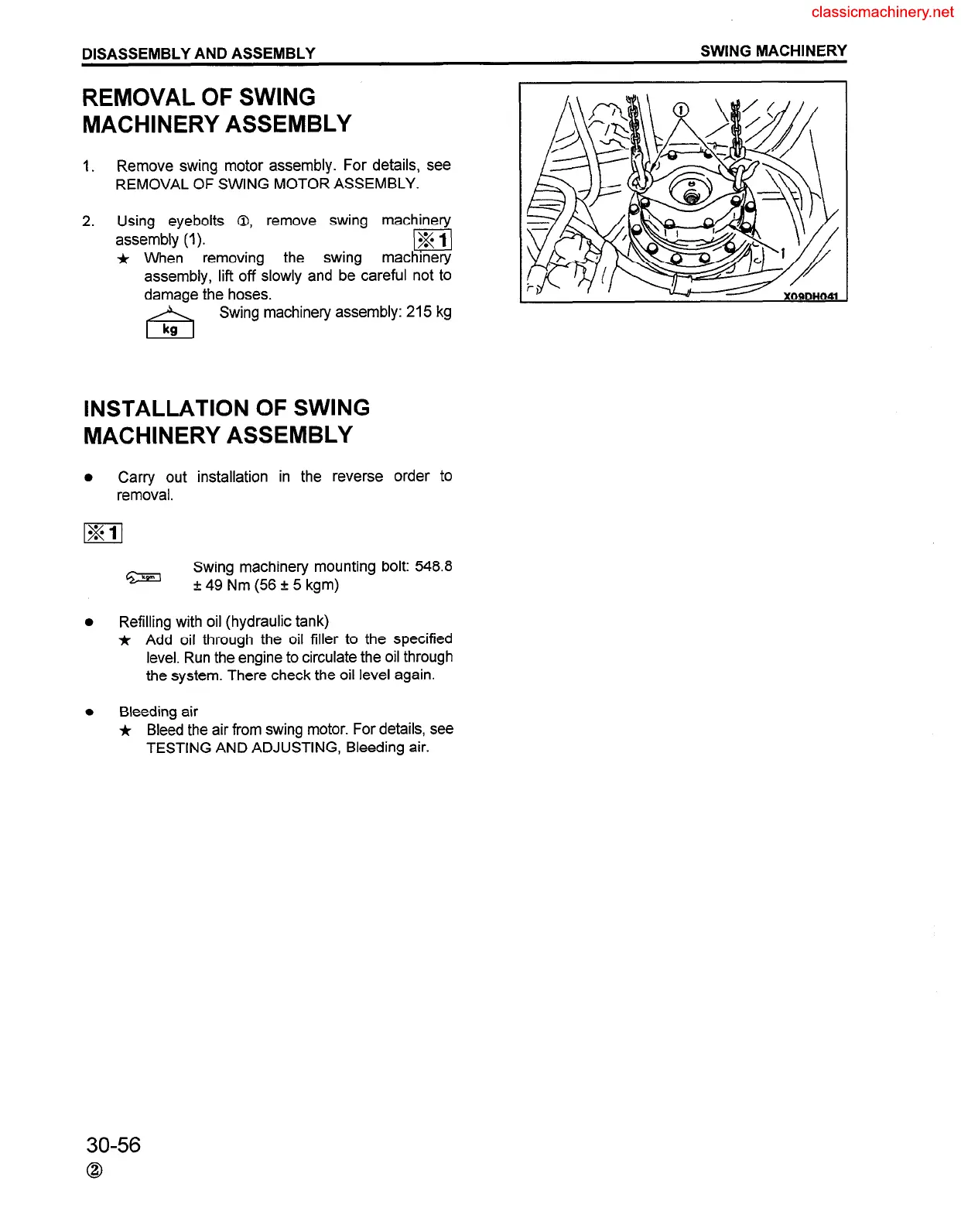

DISASSEMBLY AND ASSEMBLY
SWING MACHINERY
REMOVAL OF SWING
MACHINERY ASSEMBLY
1.
Remove swing motor assembly. For details, see
REMOVAL OF SWING MOTOR ASSEMBLY.
2. Using eyebolts 0, remove swing machinery
assembly (1).
Jx
:1
* When removing the swing mach;nkry
assembly, lift off slowly and be careful not to
damage the hoses.
Swing machinery assembly: 215 kg
INSTALLATION OF SWING
MACHINERY ASSEMBLY
0
Carry out installation in the reverse order to
removal.
Swing machinery mounting bolt: 548.8
?r 49 Nm (56 f 5 kgm)
Refilling with oil (hydraulic tank)
j, Add oil through the oil filler to the specified
level. Run the engine to circulate the oil through
the system. There check the oil level again.
Bleeding air
* Bleed the air from swing motor. For details, see
TESTING AND ADJUSTING, Bleeding air.
