TROUBLESHOOTING
E-2
*
*
*

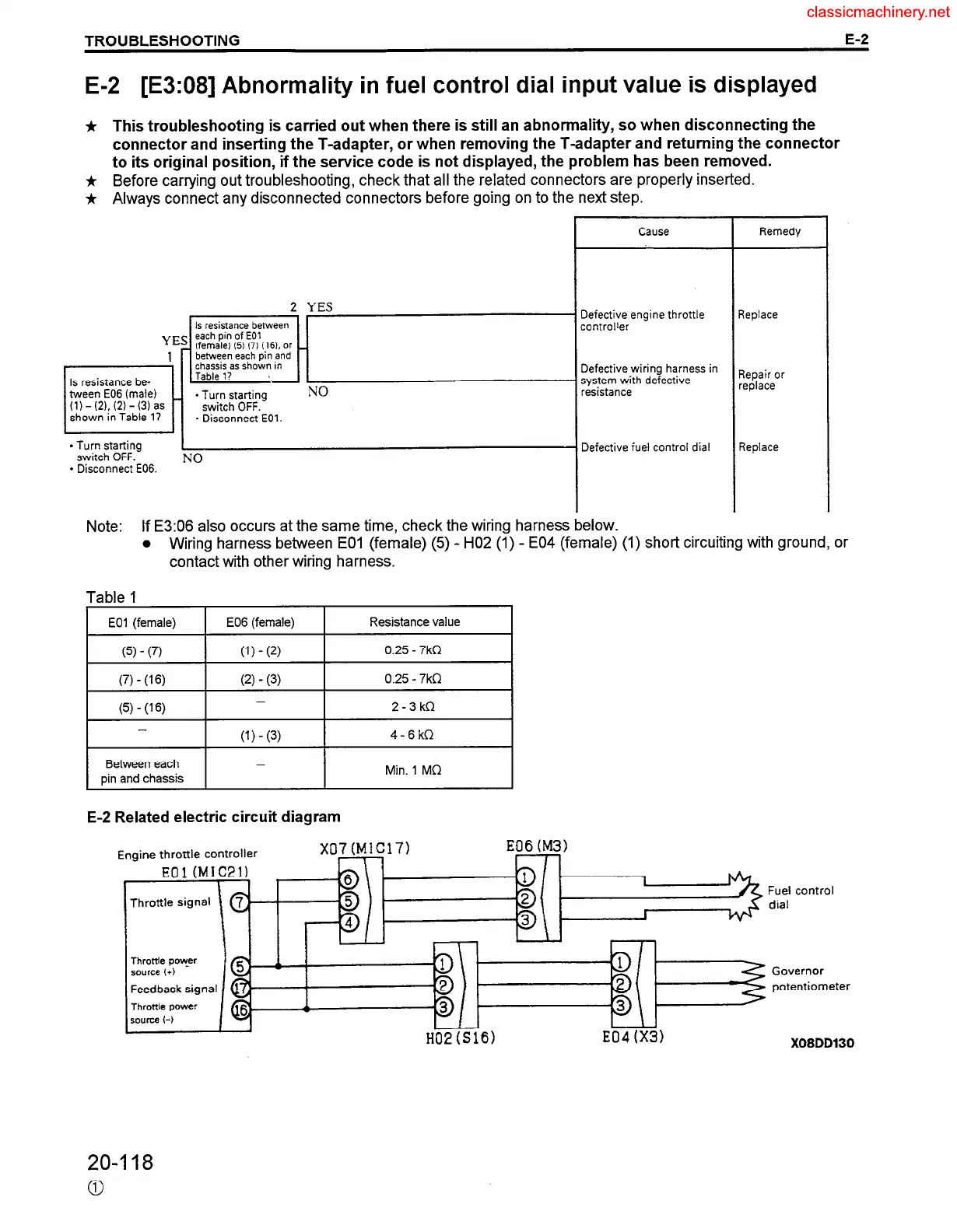

E-2 [E3:08] Abnormality in fuel control dial input value is displayed
This troubleshooting is carried out when there is still an abnormality, so when disconnecting the
connector and inserting the T-adapter, or when removing the T-adapter and returning the connector
to its original position, if the service code is not displayed, the problem has been removed.
Before carrying out troubleshooting, check that all the related connectors are properly inserted
Always connect any disconnected connectors before going on to the next step.
YE
1
tween E06 (male)
(1) - (2). (2) - (3) as
shown in Table l?
- Turn starting
switch OFF.
* Disconnect E06.
2
r I
I is resistance between I
each pin of EOl
Ifemale) 15) (7) (16). or _
I-
between each pin and
chassis as shown in
Table l?
* Turn starting
NO
switch OFF.
- Disconnect EOl.
YES
Cause
Defective engine throttle
controlier
Defective wiring harness in
system with defective
resistance
Defective fuel control dial
Remedy
Replace
Repair or
replace
Replace
Note: If E3:06 also occurs at the same time, check the wiring harness below.
l Wiring harness between EOI (female) (5) - HO2 (1) - E04 (female) (1) short circuiting with ground, or
contact with other wiring harness.
Table 1
E01 (female)
(5) - (7)
E06 (female)
Resistance value
(1) - (2)
0.25 - 7kLI
(7) - (16)
(5) - (16)
(2) - (3)
_
0.25 - 7kfI
2-3kLI
-
(1) - (3)
4-6k0
I 1
I
Between each
_
pin and chassis
I
Min. 1 MQ
E-2 Related electric circuit diagram
Engine throttle controtter
Eil6 (M3)
Throttle power
source (c)
Feedback signal
Throttle power
source I-)
E04 (X3)
Fuel control
dial
Governor
potentiometer
X08DD130
20-118
0
